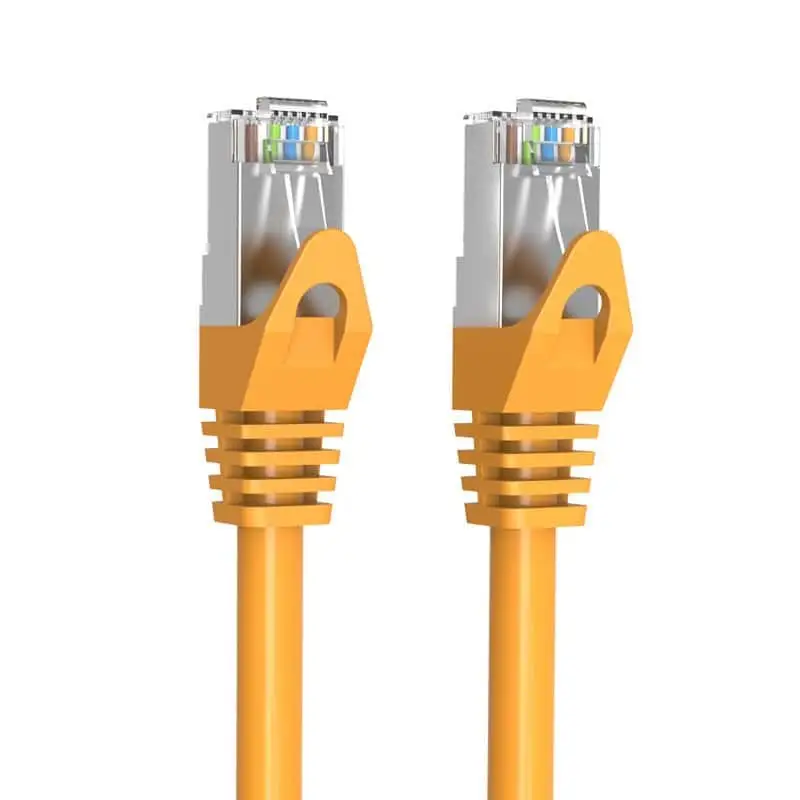

Cat6a RJ45 shield cable SFTP SSTP Cat6a ethernet patch cord cable

Cat6A S/FTP patch cord, More color and Jacket material options

FOB Ref Price

US$ 0.8-US$15

Model No.

FS17108

Color

Black,white,green,grey,blue,orange,yellow

Length

0.3m,0.5m,1m,1.5m,1.8m,3m,5m,7.5m,10m,15m,20m,30m

Min. Order

200 Rolls

Lead Time

7-30 Days

Customization

Length, Color, Package

Share:

Share on facebook
Share on twitter
Share on linkedin
Share on email

Details about Cat6a RJ45 shield cable SFTP SSTP Cat6a ethernet patch cord cable

Farsince Cat6A S/FTP (PIMF) Double Fully Shielded Patch Cable is an ideal solution for making a network connecting in a noisy, EMI/RFI environment. Build your home or office network with 10GBase-T Gigabit Ethernet. The S//FTP Double Fully shielding provides protection from EMI/RFI noise and electromagnetic interference makes a well Attenuation and Crosstalk performance. This cable meets or exceeds Category 6A performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat6A cable with high bandwidth of up to 500 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming.

Key Features

  • Cat6A S/FTP shielded Patch Cable
  • 26AWG Stranded cable for maximun flexibility.
  • Pairs individually shielded with aluminum foil
  • Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
  • Ideal for Data center architectural requirments
  • Available with different color of cable
  • Available with different length
  • ROHS, REACH Compliant

Specifications

  • Conductor : Bare copper
  • Wire Gague: 26AWG 7/0.16±0.015mm
  • Insulation: Foam PE
  • Insulation color: Blue/White,Blue; Orange/White, Orange; Green/White,Green; Brown/White,Brown
  • Individually shield: Aluminum foil
  • Braiding: Braid 16/5/0.12 Aluminum Magnesium
  • Drain wire: 26AWG 7/0.16 ±0.015mm
  • Jacket: PVC
  • Outer diameter: 6.2±0.2mm
  • Connector 1: RJ45 Cat6A FTP
  • Connector 1: RJ45 Cat6A FTP
  • Contact: Gold plated 3U, Nickel plated shell
  • Testing: Fluke tester

Download:

  • Datasheet of Cat6A S/FTP unshielded twisted 4 pairs patch cord

Order Information:

FS17108**-xxx: Cat6A S/FTP shielded twisted 4 pairs patch cord

  • **=color: GY=GREY, BK=BLACK, WT=WHITE, BU=BLUE, RD=RED, YL=YELLOW, OG=ORANGE, GN=GREEN
  • xxx=Length: 003=0.3M, 005=0.5M, 010=1.0M, 018=1.8M, 030=3.0M, 050=5.0M, 075=7.5M, 100=10M, 200=20M, 300=30M, 400=40M, 500=50M
  • For Example: FS17108BU-018= Cat6A S/FTP shielded twisted 4 pairs patch cord, Blue color, 1.8M Length
