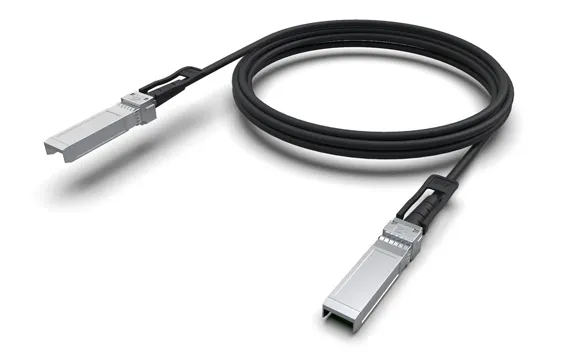

10G SFP+ Passive DAC Twinax Copper Cable for Data Centers
This 10G SFP+ Passive DAC Cable is designed for reliable 10GbE data center connectivity in short-distance applications. As a high-performance Direct Attach Copper Twinax Cable, it provides low latency, minimal power consumption, and excellent signal integrity for connections within racks or between adjacent racks. It is an ideal choice for cost-effective switch, server, and storage interconnects in modern data center environments.
5.0
Model No.:
FS10002
Brand:
Farsince / OEM
MOQ:
Negotiable
Trade Term:
EXW / FOB Ningbo
Lead time:
2–4 weeks
Customization:
Supported
Sample:
Available
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Description
The 10G SFP+ Active Direct Attach Copper Twinax Cable is designed for use in 10GBASE Ethernet. This cable is compliant with IEEE 802.3, SFF-8431, and SFP+ MSA. With these features, this easy to install, high speed, cost-effective direct attach copper twinax cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers.
Specifications
- Connector Type: SFP28 to SFP28
- Max Data Rate: 25Gbps
- Media: Copper
- Power Supply: 3.3V
- MIN Bend Radius: 21.25mm
- Wire AWG: 30AWG
- Cable Length: xxm (xxft)
- Jacket Material: PVC
- Cable Type: Passive Twinax
- Temperature: 0 to 70°C (32 to 158°F)
- Power Consumption: ≤0.5W
- Protocols: IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
- Application: 25G Ethernet, Data Center, 5G Wireless
