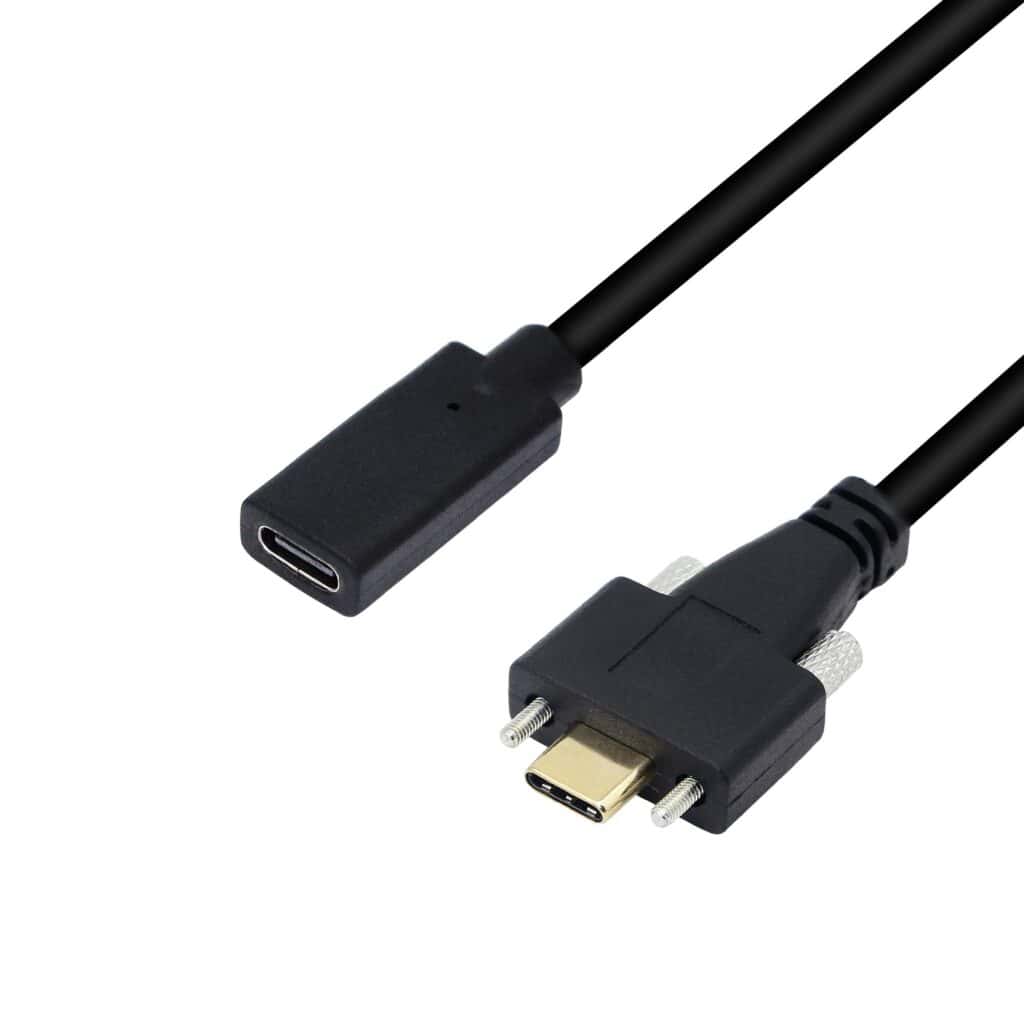

USB 3.1 Type C Panel Mount Cable USB-C Male to Female Extension Cable with dual screw

USB 3.1 Type C Panel Mount Cable USB-C Male to Female Extension Cable with screw locking, 0.3m

MOQ: 200 PCS

Lead time: 7-15 days

SKU: FSP2003
<1
$2.94
1 - 500 PCS
$2.94 per pcs
501 - 2000 PCS
$2.65 Save 10%
2001 - 5000 PCS
$2.35 Save 20%
5001+ PCS
$1.76 Save 40%
$2.94
-
+

Description

The USB 3.1 Type C Panel Mount Cable simplifies panel connectivity with its dual screw locking mechanism and versatile design.

Ensuring secure source location connectivity, its short length minimizes signal loss, maintaining data integrity effectively.

With a transfer rate of up to 10 Gbps, it facilitates ultra-fast data transfer and sync, while supporting USB quick charging up to 100W adds to its functionality. Support up to a 4K@60Hz resolution.

Protected by foil and braid shielding, it offers robust defense against interference, ensuring high-speed and error-free data transmission.

Its specifications:

  • Connector 1: USB 3.1 Type C male with dual screw locking
  • Connector 2: USB 3.1 Type C female
  • Gold plated contact, Nickel plated shell
  • Nut and Screw type: M2 nickel plated
  • Hole Pitch: 15±1mm
  • Cable Conductor: Tinned Copper
  • Wire Gauge: 32/32/21AWG
  • Outer Diameter: 4.5±0.2mm
  • Shielding: Aluminum foil, Braiding
  • Housing: Injection molding
  • Jacket: PVC
  • Support up to a 4K@60Hz resolution
  • Ultra-Fast Data Transfer/Sync (up to 10Gbps), also support USB quick charging up to 100W
  • Compliance: RoHS, REACH

Lead time & Packaging list

Lead time:

≤500PCS 501-2000PCS 2001-5000PCS ≥5001PCS
10 days 15 days  25 days to be confirmed



Packaging list:

Part # Description Single Wt (kg) Pcs/Ctn Ctn Size(cm) Gro. Wt (Kgs)
FSP2003 USB3.1 Type C M-F 32/32/21AWG 0.3M 0.03 200 35*26*24 7.0
