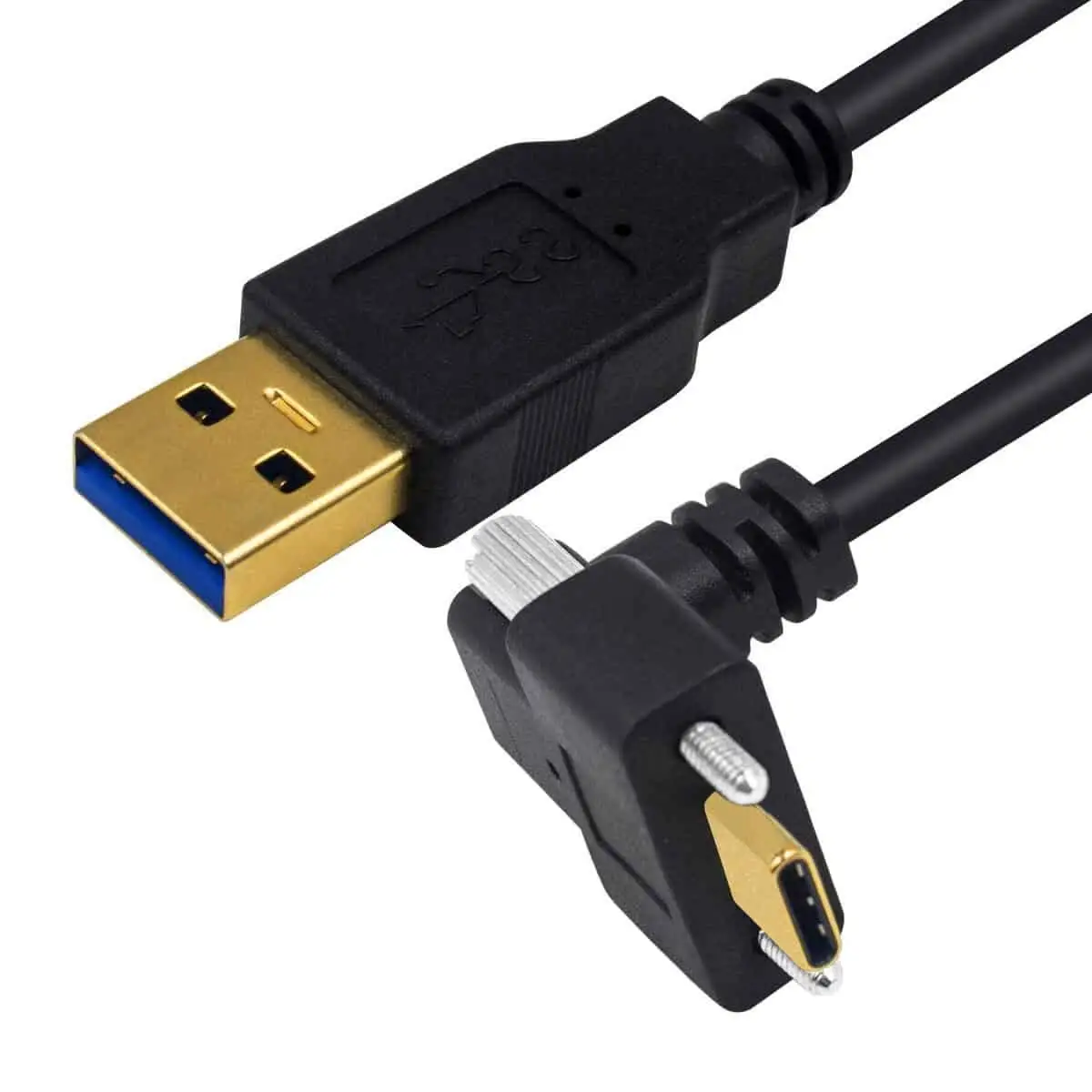

USB 3.0 A to UP Down Angle USB C Panel Mount Cable with screw, Male to Male

USB 3.0 A to UP Down Angle USB C Panel Mount Cable with screw, 0.5M-3M

MOQ: 200 PCS

Lead time: 7-15 days

SKU: FSP1084
<1
$2.59
1 - 500 PCS
$2.59 per pcs
501 - 2000 PCS
$2.33 Save 10%
2001 - 5000 PCS
$2.07 Save 20%
5001+ PCS
$1.55 Save 40%
$2.59
$2.88
$3.38
$4.47
-
+

Description

The USB 3.0 A to UP Down Angle USB C Panel Mount Cable is a standout solution for connectivity needs.

Featuring a secure screw locking mechanism and M2 nickel-plated nuts and screws, it ensures reliable attachment.

With tinned copper conductors and a 30/30/22AWG wire gauge, it maintains optimal signal transmission.

Shielded by aluminum foil and braiding, the cable protects against interference, while its injection-molded housing and PVC jacket enhance durability.

Supporting super-speed USB 3.0 devices at 5 Gbps and backward compatibility with USB 2.0, it’s versatile for various applications.

Its specifications:

  • Connector 1: USB 3.0 A male
  • Connector 2: up down angle USB-C male with screw locking
  • Gold plated contact, Nickel plated shell
  • Nut and Screw type: M2 nickel plated
  • Hole Pitch: 16.5mm
  • Cable Conductor: Tinned Copper
  • Wire Gauge: 30/30/22AWG
  • Outer Diameter: 4.5±0.2mm
  • Shielding: Aluminum foil, Braiding
  • Housing: Injection molding
  • Jacket: PVC
  • Support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
  • Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps), and low speed USB 1.0 (1.5 Mbps)
  • Compliance: RoHS, REACH

Lead time & Packaging list

Lead time:

≤500PCS 501-2000PCS 2001-5000PCS ≥5001PCS
10 days 15 days  25 days to be confirmed



Packaging list:

Part # Description Single Wt (kg) Pcs/Ctn Ctn Size(cm) Gro. Wt (Kgs)
FSP1084-005 USB 3.0 A to Angle C M-M 30/30/22AWG 0.5M 0.037 200 35*26*24 8.4
FSP1084-010 USB 3.0 A to Angle C M-M 30/30/22AWG 1.0M 0.050 200 35*26*24 11.0
FSP1084-018 USB 3.0 A to Angle C M-M 30/30/22AWG 1.8M 0.077 200 46*33*33 16.4
FSP1084-030 USB 3.0 A to Angle C M-M 30/30/22AWG 3.0M 0.100 100 46*30*23 10.5
