Description

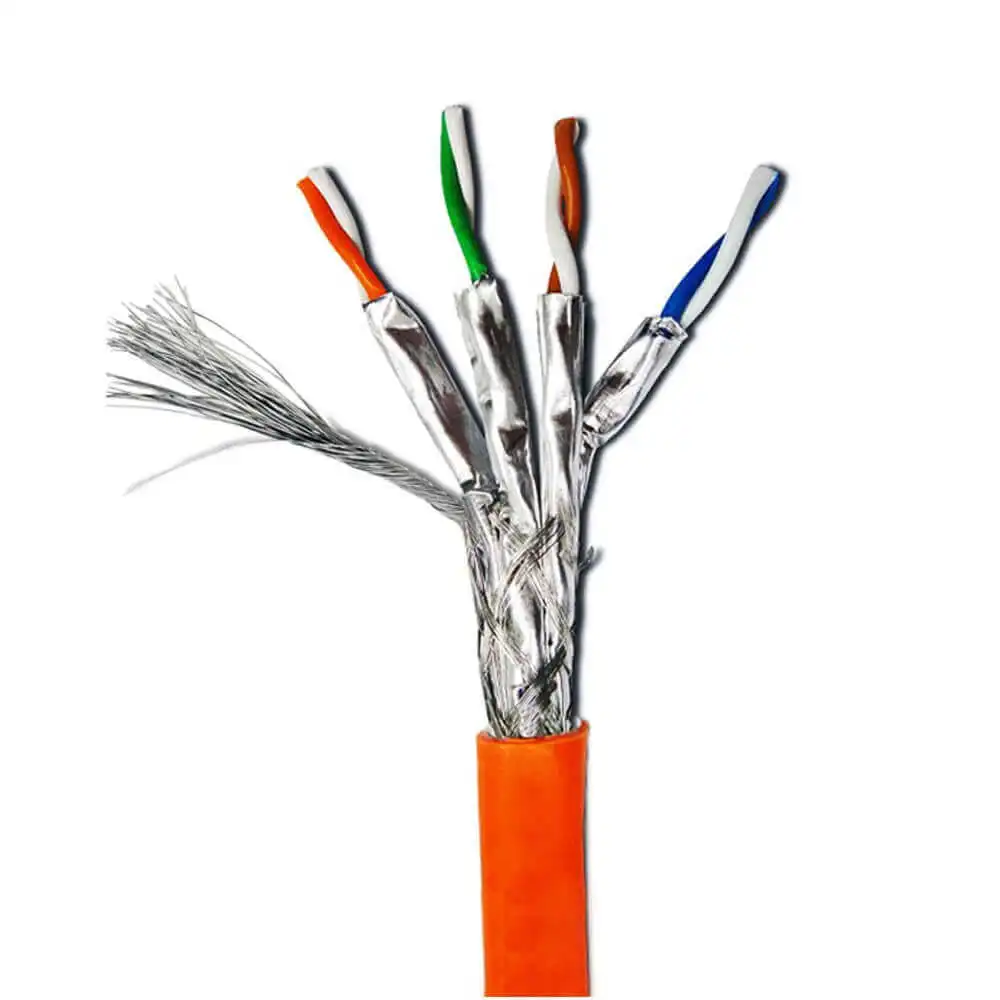

Farsince Cat7 S/FTP cable combines an overall tinned‑copper braid with individually foil‑shielded pairs to deliver Class F performance up to 600 MHz with excellent alien‑crosstalk and EMI suppression. Built with 23AWG solid bare copper and low‑loss foam PE insulation, it supports 10GBASE‑T over the full 100‑meter channel and powers high‑draw devices via IEEE 802.3af/at/bt PoE.

The LSZH outer jacket reduces smoke and halogen emissions for occupied spaces and transportation hubs. Supplied in a 305 m pull box/reel with length markings and a ripcord for fast, tidy installs. Use with shielded keystone jacks, plugs and panels for optimal grounding and shielding continuity.

Specifications

• Category/Standard: Cat7 (ISO/IEC Class F), 600 MHz
• Shielding: S/FTP—overall tinned‑copper braid + AL‑PET foil on each twisted pair
• Conductor: 23AWG solid bare copper, 4 × 2 pairs
• Insulation: Foam (skin‑foam‑skin) PE; precision lay lengths; optional cross‑filler by model
• Jacket: LSZH, low smoke zero halogen (IEC 60754, IEC 61034); flame: IEC 60332‑1
• Electrical/Ethernet: Supports 10GBASE‑T to 100 m; designed to meet ISO/IEC 11801 Class F; when terminated with RJ45 components, channel classification aligns with Cat6A while benefiting from S/FTP shielding
• PoE Support: IEEE 802.3af/at/bt (up to 90 W; observe bundle size and temp rise)
• Outer Diameter: Approx. 7.5–8.2 mm (varies by jacket and filler)
• Compliance: RoHS; CPR class (e.g., Eca/Dca) available on request
• Color/Packaging: Standard colors gray/blue; 305 m (1000 ft) pull box or reel; meter markings and ripcord
• Recommended Termination: Shielded keystones/plugs/patch panels with proper bonding to ground
