Description

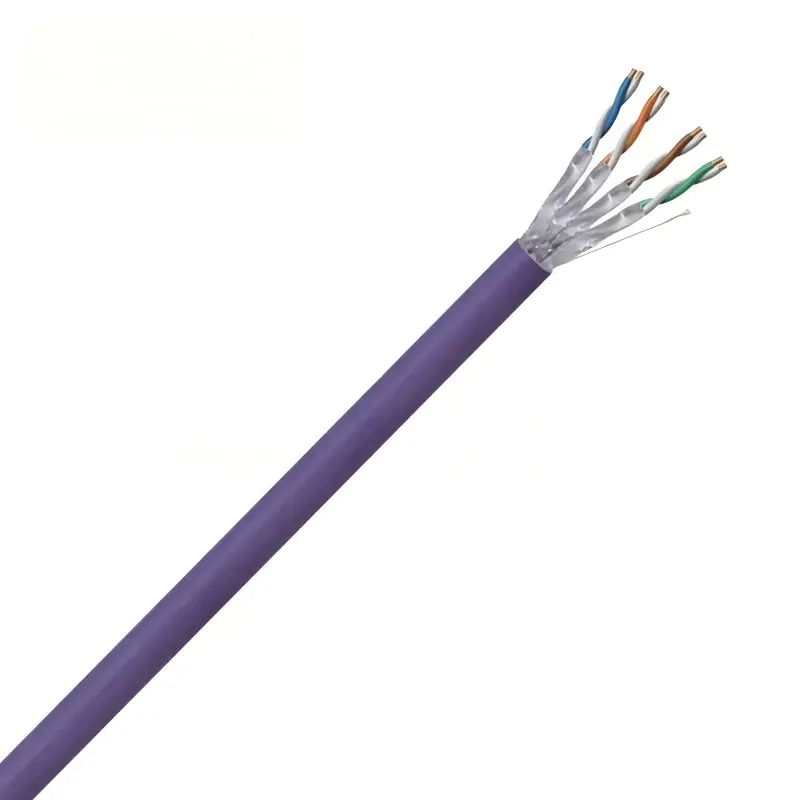

Farsince Cat6A U/FTP cable combines individually foil‑shielded pairs with 23AWG solid bare copper conductors to deliver stable 10GBASE‑T performance over the full 100‑meter channel. The per‑pair aluminum foil shields suppress external interference and alien crosstalk in high‑density or parallel‑run environments, while precision pair lay and low‑loss foam PE insulation maintain excellent electrical characteristics to 500 MHz. Available in PVC CMR or LSZH jackets and multiple colors, it pulls cleanly through conduits and racks, includes a ripcord for fast jacket access, and supports IEEE 802.3af/at/bt PoE for high‑power devices such as Wi‑Fi access points, cameras, and compact switches.

Specifications

• Construction: U/FTP (no overall braid; four pairs individually wrapped with AL‑PET foil, ~100% coverage)
• Conductor/Insulation: 23AWG solid bare copper; foamed (skin‑foam‑skin) PE insulation; precision lay lengths; optional cross‑filler (by model)
• Electrical Performance:
• Bandwidth: 500 MHz
• Ethernet: Supports 10GBASE‑T to 100 m
• Standards: Designed to meet or exceed ANSI/TIA‑568.2‑D Category 6A and ISO/IEC 11801 Class EA
• PoE Support: Compatible with IEEE 802.3af/at/bt (up to 90 W; actual power depends on installation and environment)
• Shielding/Termination: AL‑PET foil on each pair; use with shielded keystone jacks, plugs, and patch panels to maintain grounding and EMI performance
• Outer Diameter: Approx. 7.2–7.6 mm (varies with jacket and construction)
• Jacket Options: PVC CMR (UL) or LSZH; common colors blue/gray/black (others on request)
• Markings/Features: Meter length markings, easy‑strip round jacket, internal ripcord
• Ratings (by variant): CM/CMR (UL) or LSZH; CPR classes (e.g., Eca/Dca) available on request; RoHS compliant
• Temperature Range: −20 to +75 °C (typical operation; installation conditions may vary by jacket)
• Packaging: 305 m (1000 ft) reel‑in‑box or reels; custom cut lengths available
• Applications: Data centers and enterprise networks, smart buildings, PoE/PoE+/PoE++ devices, Wi‑Fi AP uplinks, IP CCTV, AV over IP, and backbone/ horizontal cabling
