Description

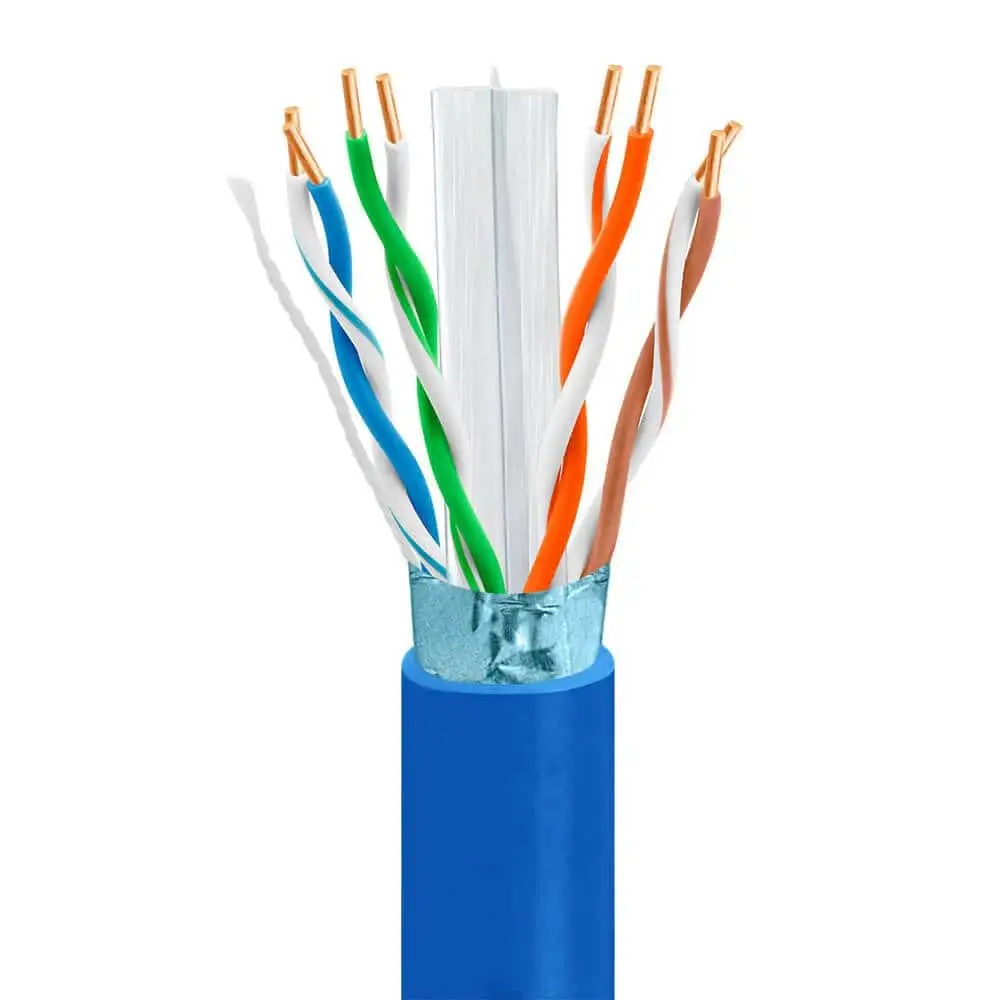

Farsince CAT6 F-UTP Foiled Ethernet installation cable, is ideal for for high performance data communications for voice, data, video and security capabilities. This cable enables 1000 Base-T Gigabit Ethernet and allows for faster bandwidth up to 250MHz Composed of four pairs of 23 gauge solid bare copper conductors, with an overall Aluminum foil shield, in order to repel electromagnetic interference (EMI) in electrically noisy environments, the CAT6 F-UTP bulk Ethernet cable has an overall LSZH jacket and sequential foot or meter markings on the jacket so you always know how much it left.
Key Features
- F/UTP
- 23AWG 0.57mm Solid Oxygen-free Copper or CCA
- HDPE insulation.
- PVC/CMR/CMP/LSZH /PE Jacket options
- More color options
- Tested by Fluke and Network analyser
- ROHS, REACH Compliance
- CPR Eca, Dca Certificated
Standard Compliance
- IEC/ISO 11801 2nd Class D
- ANSI/TIA568C.2 Catergory 6
- ISO/IEC 61156-5 Catergory 6
Specifications
- Conductor : 23AWG (1/0.57mm), Solid Bare Copper or CCA
- Insulation: HDPE
- Shielding: Aluminum foil+drain wire
- Braiding: none
- Outer Diameter: 7.5 ± 0.2mm
- Jacket Options: PVC, LSZH, CM, CMR(Riser), CMP(Plenum), PE (Outdoor),
- Color: Grey/White/Blue/Black or Customized
Download:
- Datasheet of Cat6 F/UTP Netwoking installation bulk cable
Order Information:
- FS17004A-PVC: PVC
- FS17004A-LSZH: LSZH
- FS17004A-CM: CM Rated
- FS17004A-CMR: CMR Riser
- FS17004A-PE: PE for outdoor
- FS17004B-PVC: CCA Conductor, PVC Jacket
- FS17004B-LSZH: CCA Conductor, LSZH Jacket
- FS17004B-PE: CCA Conductor, PEJacket
