Description

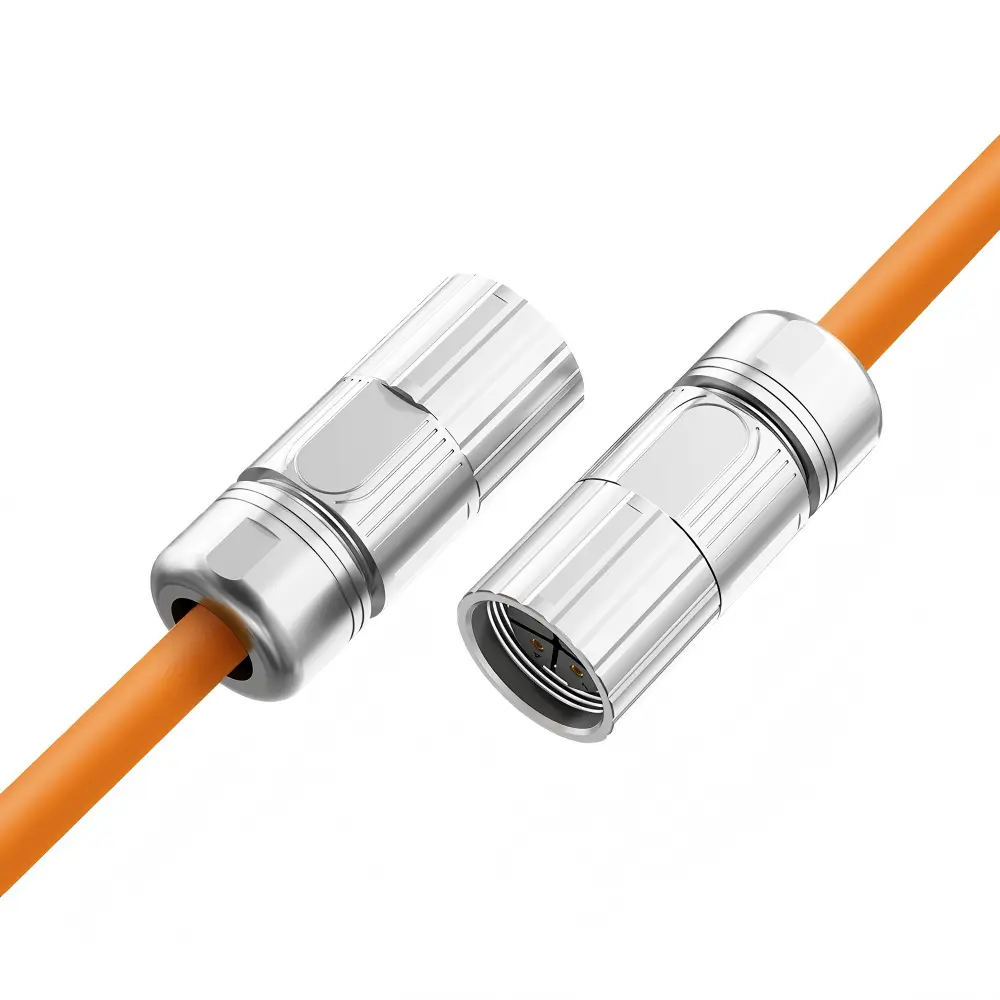

This 4‑pin motor power cable is specified for Siemens SINAMICS V90 servo motors to carry motor supply conductors from drive to motor. The motor end features a straight 4‑pin threaded M23 connector with locking thread that provides IP67 protection when correctly mated; the drive end is delivered with stripped, tinned conductors for termination to drives or junction blocks. Construction comprises multi‑strand tinned copper conductors, a ≥80% tinned‑copper braid for EMI mitigation and a flexible PVC jacket sized for standard V90 installations.

Intended for CNC machines, packaging lines, robotics and material‑handling equipment, the cable balances conductor sizing with routing flexibility to meet power delivery and space constraints. Installation notes: IP67 applies only when the connector is fully engaged and tightened; confirm conductor gauge vs. motor current before ordering.

Specifications

• Product Type: Motor power cable
• Host Interface: 4‑pin threaded circular connector (M23 straight)
• Device Interface: Stripped and tinned open wire leads
• Conductor: Multi‑strand tinned copper, 4 conductors
• Wire Gauge: 4 × 1.5 mm² (24 × 0.25 mm) stranded copper

• Shielding: Tinned copper braid, ≥80% coverage
• Jacket: PVC, Black (other colors on request)
• Outer Diameter: 9.0 ± 0.40 mm

• Temperature Range: -40°C to +80°C (application dependent)
• Lengths: 3 m, 5 m, 7 m, 10 m, 15 m, 20 m (custom lengths available)
• IP Rating: IP67 when mated and tightened; unmated housing typically IP20

• Minimum Bending Radius: Fixed installation 6 × OD; occasional movement 15 × OD
• Drag‑life: Tested ≥1,000,000 cycles under controlled test conditions (20°C, radius ≥7.5×OD, 1 m travel, 1 m/s)

• Compatibility: Siemens SINAMICS V90 (compatible with 6FX3002‑5CL02 series form factor)

• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, batch traceability, ODM support
