Description

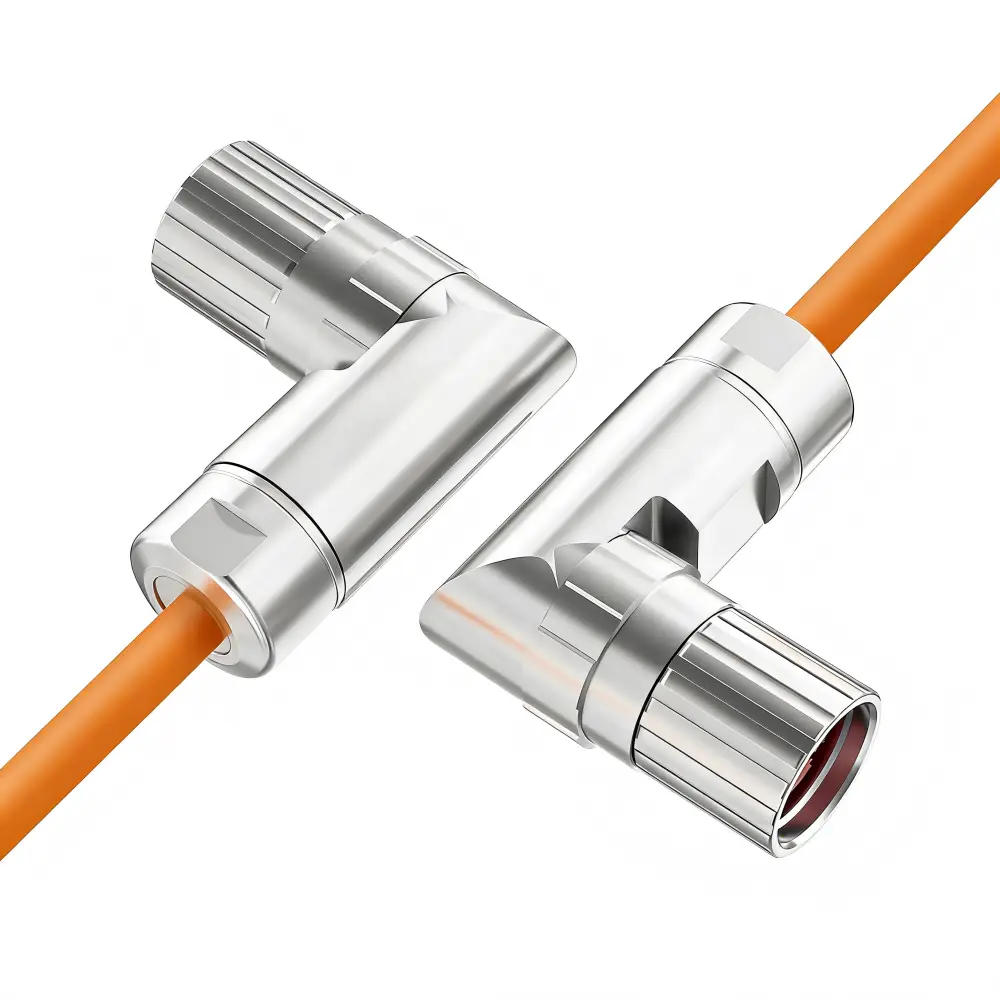

This angled 4‑pin motor power cable is designed for space‑restricted SINAMICS V90 installations where connector clearance is limited. The motor end uses a right‑angle M23 threaded connector (elbow) that achieves IP67 when properly mated; the drive side is provided with stripped, tinned conductors for flexible termination. Cable construction includes multi‑strand tinned copper conductors, an ≥80% braided shield for EMI suppression and a flexible PVC jacket optimized for tight routing and occasional movement.

The elbow connector minimizes bending stress at the motor entry and simplifies routing in cobots, compact spindles and enclosed gantries. Installation notes: ensure connector is fully tightened to achieve IP67; confirm required conductor cross‑section for motor current and select appropriate jacket material for the environment.

Specifications

• Product Type: Right‑angle motor power cable
• Host Interface: 4‑pin right‑angle threaded circular connector (M23 elbow)
• Device Interface: Stripped and tinned open wire leads
• Conductor: Multi‑strand tinned copper, 4 conductors
• Wire Gauge: 4 × 2.5 mm² (49 × 0.25 mm) stranded copper

• Shielding: Tinned copper braid, ≥80% coverage
• Jacket: PVC, Black (other colors on request)
• Outer Diameter: 10.01 ± 0.40 mm
• Temperature Range: -40°C to +80°C (application dependent)
• Lengths: 3 m, 5 m, 10 m, 20 m (custom lengths available)

• IP Rating: IP67 when mated and tightened; unmated housing typically IP20

• Minimum Bending Radius: Fixed installation 6 × OD; occasional movement 15 × OD
• Drag‑life: Tested ≥1,000,000 cycles under controlled test conditions (20°C, radius ≥7.5×OD, 1 m travel, 1 m/s)

• Compatibility: Siemens SINAMICS V90 (e.g. M23 0LL11‑style)

• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, batch traceability, ODM support
