Description

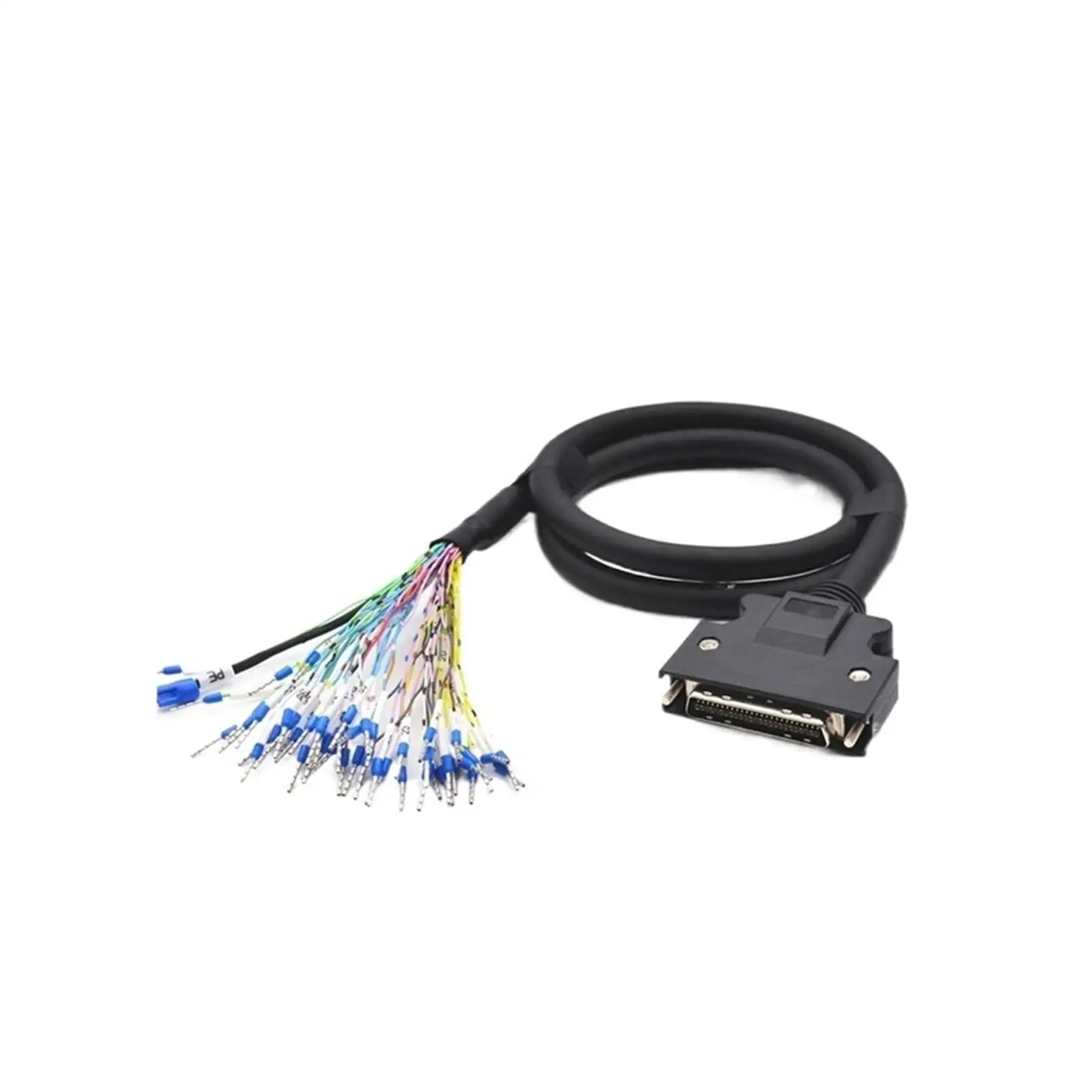

This 50‑core I/O cable is specified for SINAMICS V90 drives to carry encoder pulses, digital inputs/outputs and analog references between drive and control equipment. The drive end features a molded 50‑pin rectangular connector compatible with MDR/M‑50 style sockets; the field end is delivered as individual stranded conductors with pre‑crimped ferrules for straightforward connection to PLCs, terminal blocks or junctions.

This cable uses multi‑strand tinned copper conductors, an overall tinned braid with internal bundling for signal integrity and a flexible PVC jacket suitable for typical industrial routing. Intended for motion control, CNC, robotics and packaging systems, the cable reduces wiring time and improves EMC immunity when the braid is correctly terminated. Installation notes: drive connectors are generally IP20 when mated; terminate shield to chassis/PE at cabinet end for best EMI performance.

Specifications

• Product Type: I/O cable (50 cores)
• Host Interface: Molded 50‑pin rectangular connector (MDR/M‑50 style)
• Device Interface: 50 individual insulated conductors fitted with crimped ferrules
• Conductor: 25 pairs / 50 multi‑strand tinned copper conductors
• Wire Gauge: Typical 28AWG (7 × 0.127 mm)

• Shielding: Tinned copper braid, typical ≥85% coverage
• Jacket: PVC, Black (other colors on request)
• Outer Diameter: 13.1 ± 0.8 mm
• Temperature Range: -25°C to +80°C (application dependent)
• Lengths: 0.5 m, 1 m (custom lengths available)

• IP Rating: Typically IP20 when mated

• Minimum Bending Radius: Fixed installation 6 × OD; occasional movement 20 × OD

• Compatibility: Siemens SINAMICS V90 (compatible with 6SL3260‑4NA00 series)

• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, batch traceability, ODM support
