Description

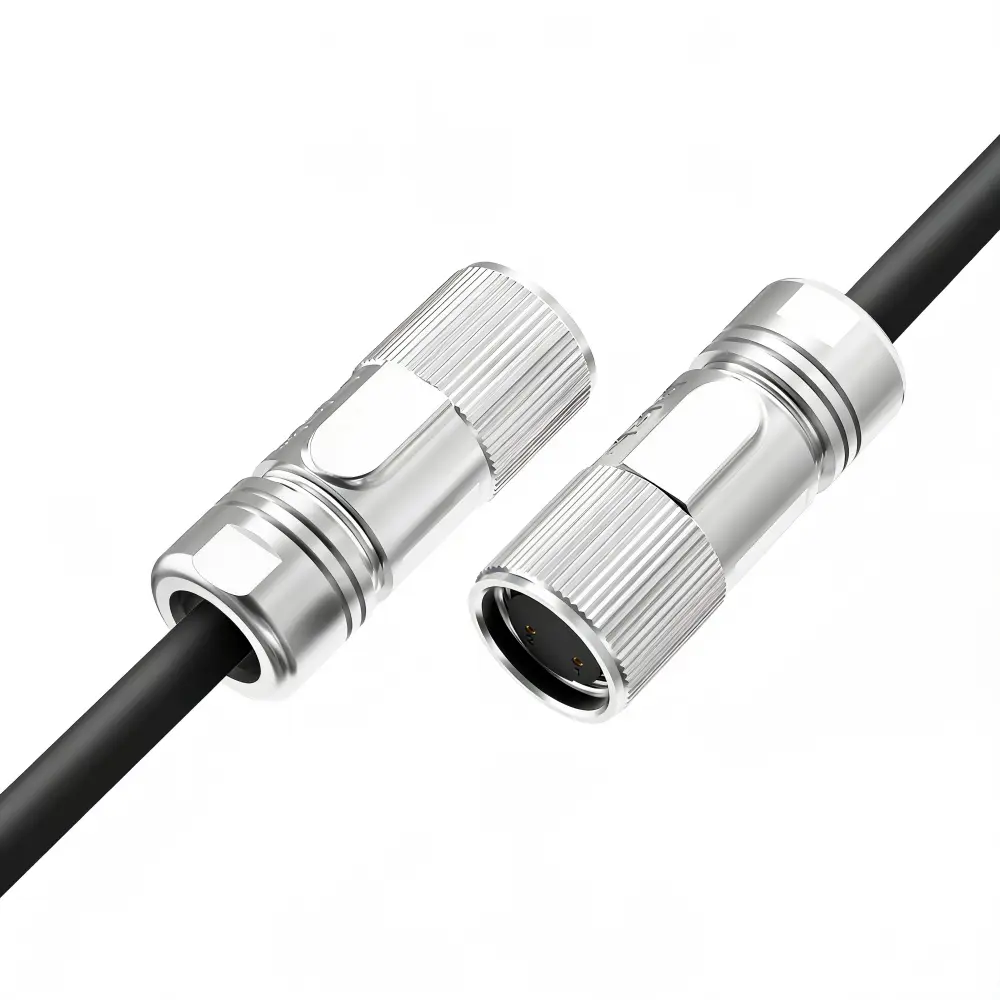

This 2‑core brake cable is specified for Siemens SINAMICS V90 servo motors to deliver brake control signals from drive to motor. The motor end is fitted with a 2‑pin threaded M20‑style circular connector (threaded locking) that provides IP67 protection when properly mated; the field end is supplied as stripped, tinned conductors ready for termination to PLCs, terminal blocks or safety relays. Cable construction uses 2 × 0.75 mm² multi‑strand tinned copper conductors (24 × 0.20 mm), an overall tinned‑copper braid (≥80% coverage) for EMI mitigation and a flexible PVC jacket.

The cable is intended for machine tools, robotics, packaging, material‑handling and other motion‑control systems where reliable brake actuation and compact routing are required. Installation notes: IP67 applies only when the connector is correctly mated and tightened; unmated housings may only meet IP20. For best EMC performance, terminate the braid to chassis/PE at the cabinet end. Confirm brake coil voltage/current and connector gender/Siemens part equivalence before ordering.

Specifications

• Product Type: Brake control cable
• Host Interface: 2‑pin threaded circular connector (M20‑style)
• Device Interface: Stripped and tinned open wire leads
• Conductor: Multi‑strand tinned copper, 2 conductors
• Wire Gauge: 2 × 0.75 mm² (24 × 0.20 mm) stranded copper

• Shielding: Tinned copper braid, ≥80% coverage
• Jacket: PVC, Black (other colors on request)
• Outer Diameter: 6.40 ± 0.30 mm
• Temperature Range: -25°C to +80°C (application dependent)
• Lengths: 3 m, 5 m, 7 m, 10 m, 15 m, 20 m (custom lengths available)

• IP Rating: IP67 when mated and tightened; unmated housing typically IP20

• Minimum Bending Radius: Fixed installation 6 × OD (~38.4 mm); occasional movement 15 × OD
• Drag‑life: Tested ≥1,000,000 cycles under controlled test conditions (20°C, radius ≥7.5×OD, 1 m travel, 1 m/s)

• Compatibility: Siemens SINAMICS V90 (compatible with 6FX3002‑5BL03 series form factor)

• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, batch traceability, ODM support
