Description

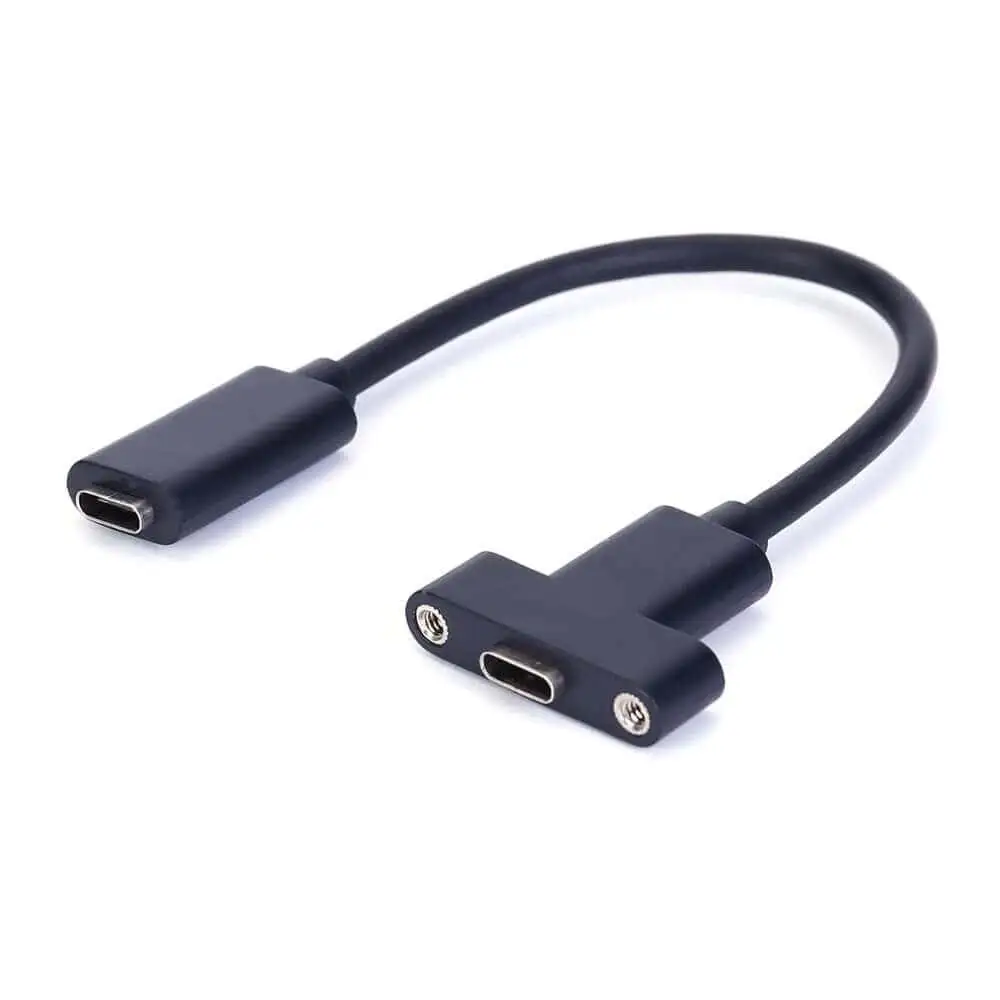

Merging two USB Type C cables to facilitate panel connectivity has never been simpler.
This setup enables secure source location connectivity for you. And its short length and deliberate design contribute to its minimal signal loss.
With a transfer rate of up to 10 Gbps, the USB C panel mount extension cable can easily connect to any USB device.
Equipped with foil and braid shielding, it offers total protection against EMI/RFI interference, while its twisted pair design aids in reducing crosstalk, ensuring high-speed and error-free data transfer.
Its specifications:
- Nut and Screw type: #4-40 nickel plated
- Hole Pitch: 25±0.5mm
- Gold-plated contact, Nickel plated shell
- Cable Conductor: Tinned Copper
- Insulation: Foamed PE SKIN/HDPE
- Wire Gauge: 34/32/26AWG
- Housing: Injection molding
- Jacket: PVC
- Outter diameter: 4.6mm
- Compliance: RoHS, REACH, CE
In addition, tested to perform at industry standards, it is fully functional and comes with a 2-year warranty from Farsince. Therefore, contact us today and add the cable to your inventory.
