Description

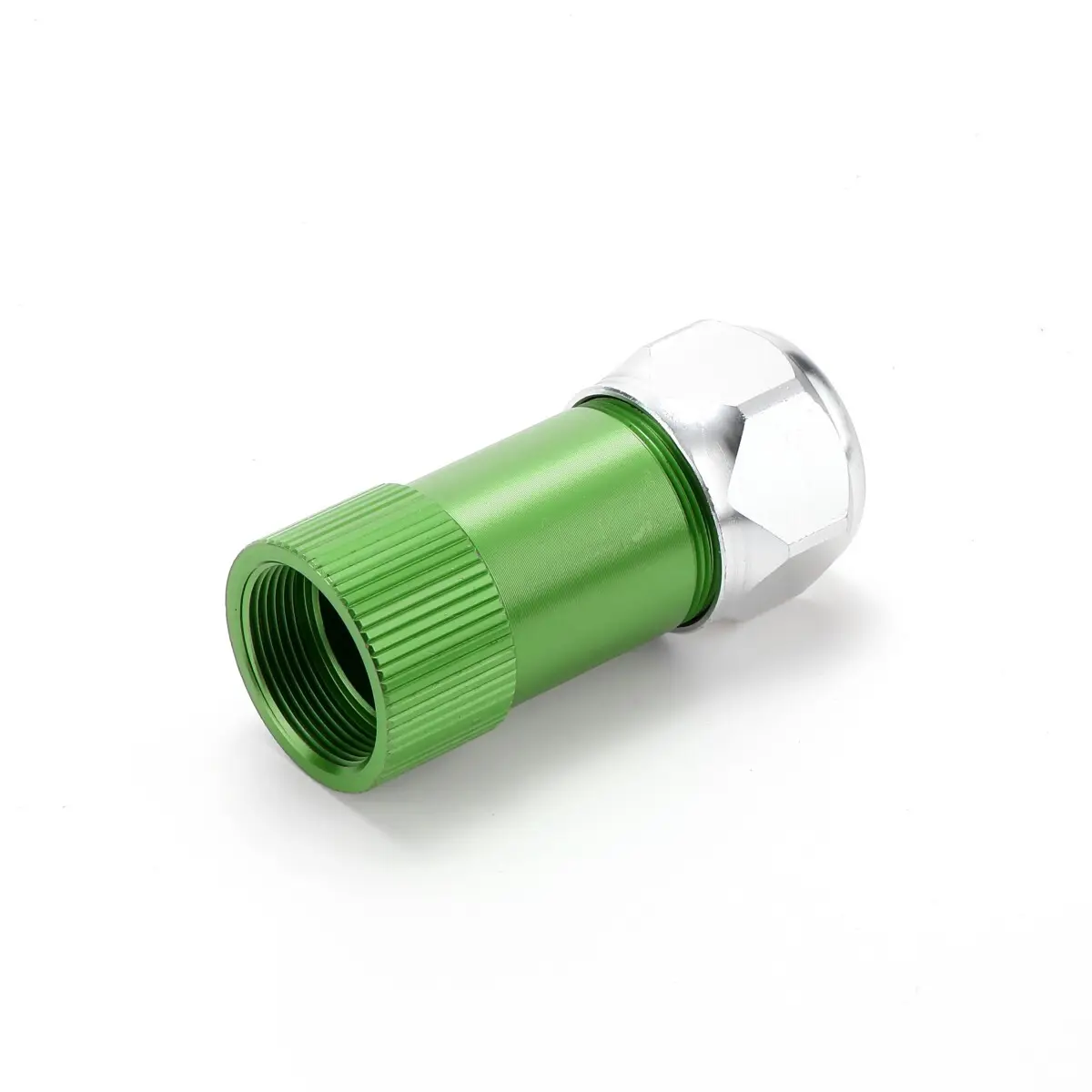

This product is a metal waterproof connector housing designed to provide a sealed shell around standard data and AV connectors (RJ45, USB-A, USB-C, HDMI) when used with the correct internal insert and cable geometry. The product includes an anodized aluminum body, locking nut, polymer inner insert and elastomer grommet that secure the cable and create a moisture-resistant barrier. It functions as an inline or panel-entry protective plug/housing to protect connector bodies and cable exits from dust and splash exposure during field installations.

Engineered for pragmatic field use, the housing combines mechanical protection, EMI-friendly metal exterior and a replaceable sealing insert to accommodate different connector profiles. Installation is simple: pass cable through the nut and insert, terminate or mate the connector as required, then compress the grommet with the nut for sealing. Provide configurable insert sizes, finishes, IP verification guidance, and production testing to integrate the housing reliably into automotive, marine, industrial control and outdoor networking applications.

Specifications

• Product Type: Metal waterproof connector housing / inline sealing shell

• Supported Interfaces: RJ45, USB-A, USB-C, HDMI (with correct internal adapter/insert)
• Material: Anodized aluminum body; stainless locking nut; TPU/elastomer grommet; POM/PA insert
• Finish: Green anodize (standard); other anodized colors available
• Cable OD Range: Typical 3–12 mm (dependent on selected insert)
• Seal Type: Elastomer grommet + compressive nut; replaceable inner insert
• Installation: Inline or panel entry; hand-tightenable locking nut
• Protection: Water-resistant sealing (water ingress protection depends on mating connector and assembly; IP67 achievable with correct configuration)

• Compatibility: Designed for common cable/plug profiles; verify insert choice for exact fit

• Compliance: RoHS, REACH
• Customization: Insert dimensions, thread size, finish and marking
• Service Support: 100% continuity testing, batch traceability, ODM support
