Description

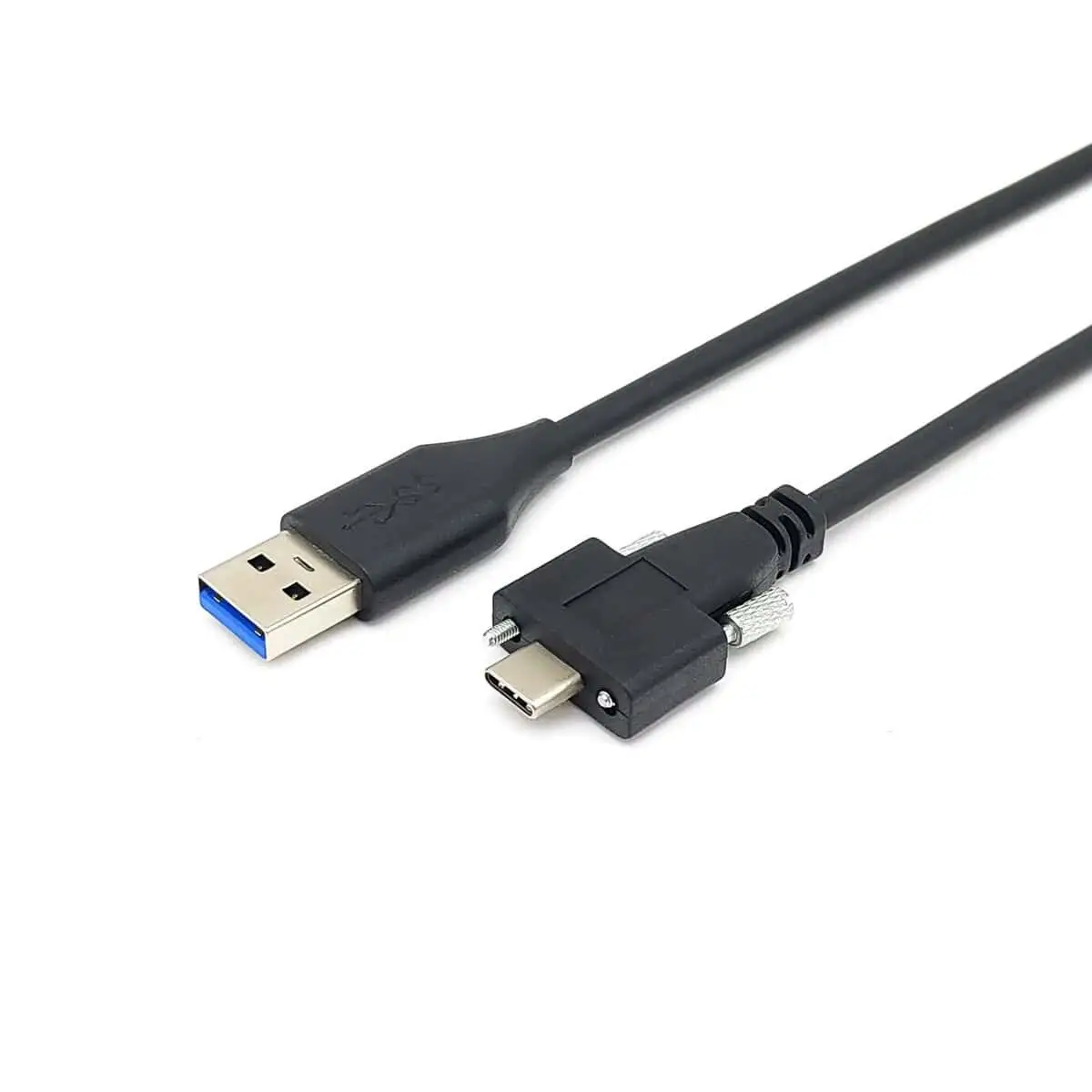

The USB 3.0 A to USB C Male Panel Mount Cable impresses with its quality and versatility. Featuring a dual screw locking mechanism, it securely connects USB 3.0 A male to USB Type-C male connectors within a 15±1mm hole pitch.
Shielded by aluminum foil and braiding, it offers protection against interference, while its injection-molded housing and PVC jacket enhance durability.
Supporting USB Power Delivery up to 3A and super-speed USB 3.0 devices, it achieves transfer rates of up to 5 Gbps, remaining backward compatible with USB 2.0.
Overall, it’s a top choice for various applications, from industrial machinery to personal computing needs.
Its specifications:
- Connector 1: USB 3.0 A male
- Connector 2: USB Type-C male with dual screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M2 nickel plated
- Hole Pitch: 15±1mm
- Cable Conductor: Tinned Copper
- Insulation: Foamed PE SKIN/HDPE
- Wire Gauge: 30/30/22AWG OD: 4.5±0.2mm for 0.5M-3M; 28/28AWG OD: 5.5mm for 5M
- Shielding: Aluminum foil
- Housing: Injection molding
- Jacket: PVC
- USB Power Delivery up to 3A
- Support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
- Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps), and low speed USB 1.0 (1.5 Mbps)
- Compliance: RoHS, REACH
