Cat 5e F/UTP Ethernet installation bulk cable 305m roll box

24AWG Solid bare copper or CCA, 305meter/1000ft, More color and Jacket material options bulk ethernet cable

FOB Ref Price

US$30-US$70

Model No.

FS17002

Color

Black,white,green,grey,blue,orange,yellow

Length

100m,305m,500M,1000M

Min. Order

100 Rolls

Lead Time

7-30 Days

Customization

Length, Color, Package

Share:

Share on facebook
Share on twitter
Share on linkedin
Share on email

Details about Cat 5e F/UTP Ethernet installation bulk cable 305m roll box

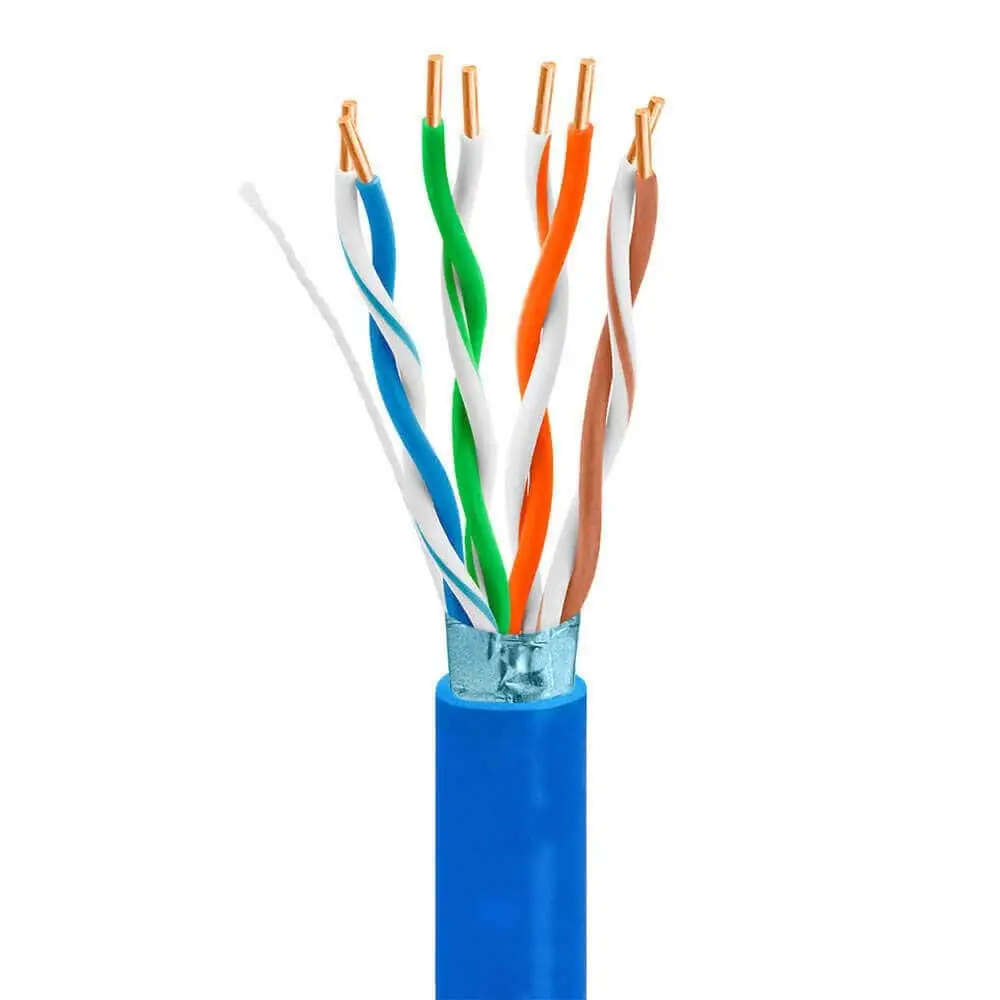

Farsince CAT5e F-UTP Foiled Ethernet installation cable, is ideal for for high performance data communications for voice, data, video and security capabilities. This cable enables 1000Base-T Gigabit Ethernet and allows for faster bandwidth up to 100MHz Composed of four pairs of 24 gauge solid bare copper conductors, with an overall Aluminum foil shield, in order to repel electromagnetic interference (EMI) in electrically noisy environments, the CAT5 F-UTP bulk Ethernet cable has an overall PVC/CMR/CMP/LSZH/PE jacket and sequential foot or meter markings on the jacket so you always know how much it left.

Key Features

  • F/UTP
  • 24AWG 0.50mm Solid Oxygen-free Copper or CCA
  • HDPE insulation.
  • PVC/CMR/CMP/LSZH /PE Jacket options
  • More color options
  • Tested by Fluke and Network analyser
  • ROHS, REACH Compliance
  • CPR Eca, Dca Certificated

Standard Compliance

  • IEC/ISO 11801 2nd Class D
  • ANSI/TIA568C.2 Catergory 5e
  • ISO/IEC 61156-5 Catergory 5e

Specifications

  • Conductor : 24AWG (1/0.50mm), Solid Bare Copper or CCA
  • Insulation: HDPE
  • Shielding: Unshield
  • Braiding: none
  • Outer Diameter: 6.0 ± 0.2mm
  • Jacket Options: PVC, LSZH, CM, CMR(Riser), CMP(Plenum), PE (Outdoor),
  • Color: Grey/White/Blue/Black or Customized

Download:

  • Datasheet of Cat5e F/UTP Netwoking installation bulk cable

Order Information:

  • FS17002-C: PVC
  • FS17002-L: LSZH
  • FS17002-M: CM Rated
  • FS17002-R: CMR Riser
  • FS17002-P: CMP Plenum
  • FS17002-E: PE for outdoor
