Description

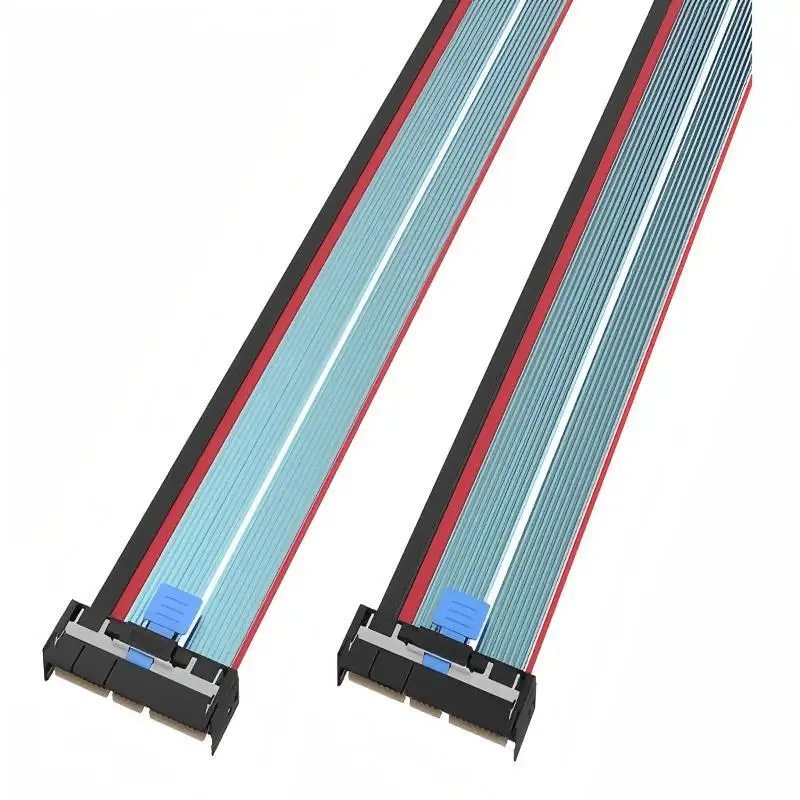

This assembly is an internal copper ribbon cable terminated with SFF‑TA‑1002 connectors on both ends to create a direct board‑to‑board or board‑to‑backplane link inside servers, storage enclosures and HPC systems. The flat, shielded construction supports high‑speed differential signaling over short chassis distances, making it suitable for Gen‑Z implementations and other protocols carried on the SFF‑TA‑1002 interface. Typical use cases include adapter‑to‑midplane connections, CPU/GPU or accelerator modules, and dense node interconnects where routing height and airflow are constrained.

Specifications

• Product Type: Internal high‑speed copper ribbon cable assembly
• Host Interface: SFF‑TA‑1002 (Gen‑Z style)
• Device Interface: SFF‑TA‑1002 (both ends)
• Cable Direction: Point‑to‑point
• Application: Server, storage, accelerator, HPC chassis interconnect
• Data Rate: Per host protocol over SFF‑TA‑1002
• Protocol Support: Gen‑Z; compatible with platforms using SFF‑TA‑1002
• Conductor: Fine‑gauge copper, shielded differential pairs
• Cable Structure: Low‑profile ribbon with latch and pull‑tab
• Wire Gauge: Fine gauge copper (typical AWG per design)
• Cable Length: Custom lengths on request
• Installation: Tool‑less service; keyed/latching retention
• Compatibility: Mates with SFF‑TA‑1002 compliant receptacles
• Compliance: RoHS, REACH
• Customization: Length, wiring map, tab orientation, ID labels, harnessing
