Description

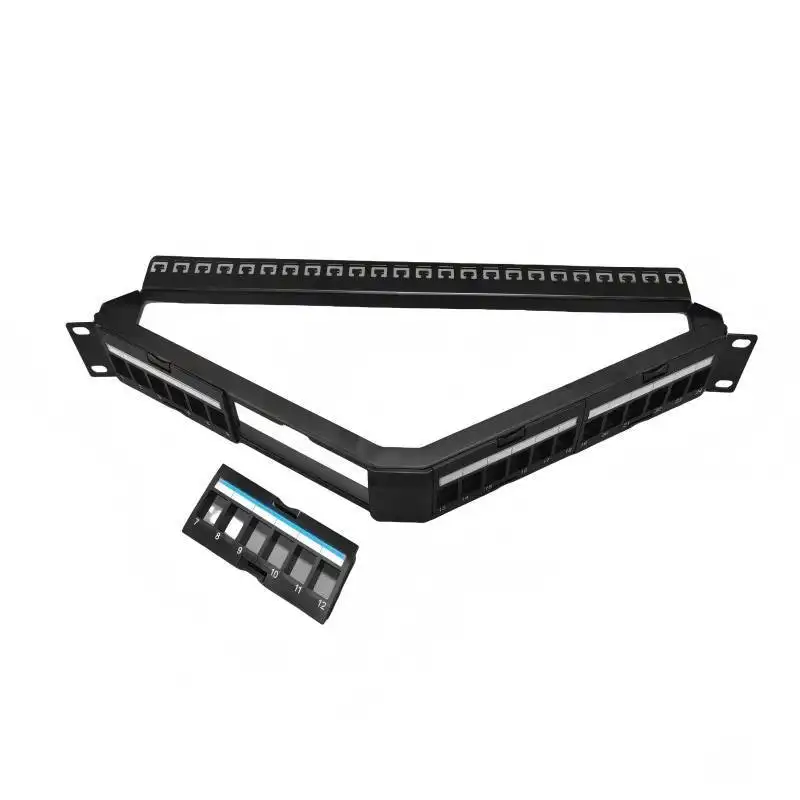

The Farsince 1U 24‑port shielded staggered keystone coupler patch panel comes preloaded with shielded RJ45 feed‑through couplers, allowing front‑to‑rear connections using standard patch cords with no IDC termination. The staggered port layout provides extra clearance for large plugs and thick cables, improves bend radius and airflow, and increases port‑to‑port spacing to help mitigate alien crosstalk and manage PoE heat. A metal shielded chassis with grounding provision maintains shielding continuity when used with shielded patch cords. Designed for Cat6A (Class EA) 10GBASE‑T channels and backward‑compatible with Cat6/Cat5e, fully IEEE 802.3af/at/bt PoE‑ready.

Specifications

• Type/Construction: Shielded unloaded panel pre‑populated with shielded RJ45 feed‑through keystone couplers
• Ports: 24 × RJ45 (8P8C), staggered front layout with sequential numbering and label windows
• Category/Performance: Supports up to Cat6A (Class EA) 500 MHz and 10GBASE‑T when used with Cat6A shielded components; backward‑compatible with Cat6/Cat5e
• Shielding/Grounding: Metal front panel and shielded coupler shells with rear grounding stud/ear (ground strap included by model) for shield continuity
• Termination: Feed‑through couplers—no punch‑down; T568A/B defined by patch cords
• PoE Support: IEEE 802.3af/at/bt compatible (up to 90 W; observe bundle size and temperature rise)
• Accessories: Rear cable‑management bar (cable holder) and tie‑down points; label cards/windows; rack screws and cage nuts (as supplied)
• Mounting: 1U, 19" rack (EIA/ECA‑310)
• Materials/Finish: SPCC steel chassis, black powder‑coat; metal shielded couplers; gold‑plated contacts (typ. ≥30–50 μin); UL 94V‑0 PC
• Compliance: RoHS/REACH; interface per IEC 60603‑7 series
• Dimensions/Weight: 482.6 mm W × 44.5 mm H; depth/weight depend on management bar and couplers (approx. 0.9–1.5 kg)
