Description

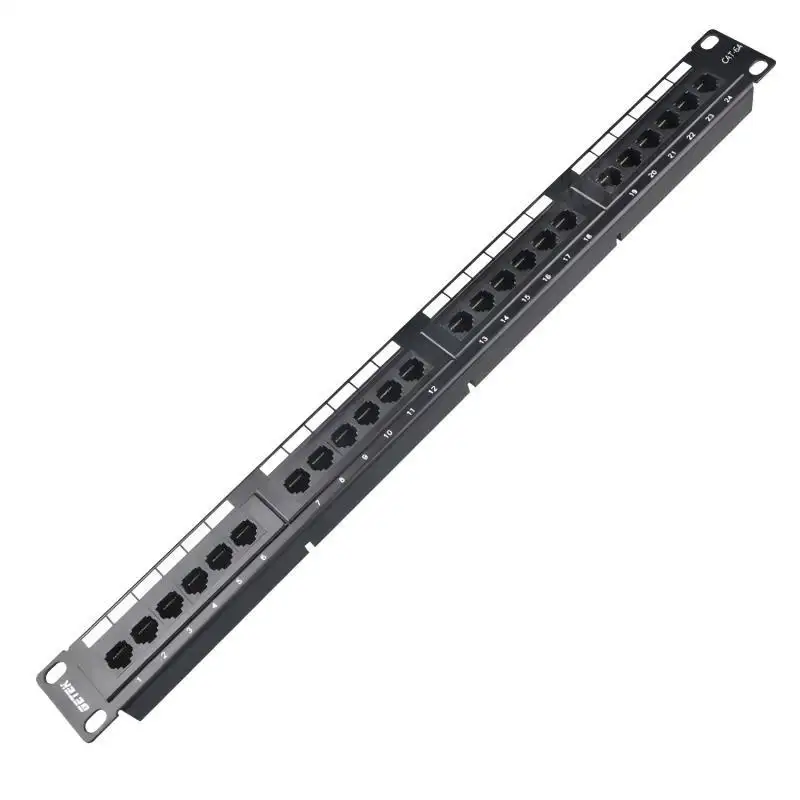

Built for high‑density, high‑reliability installations, the Farsince 24‑port Cat6A shielded patch panel delivers Class EA performance to 500 MHz and stable 10GBASE‑T links. Each jack is metal‑shielded with continuity to the chassis, and a rear grounding stud ensures proper bonding. Dual‑standard Krone/110 IDC blocks support T568A/B wiring and accept 22–26 AWG solid or stranded copper conductors for fast, universal terminations. A rear cable‑management bar, tie‑down points, sequential port numbering, and label windows keep racks neat and serviceable. IEEE 802.3af/at/bt PoE compatible, ideal for data centers, enterprise networks, and building cabling.

Specifications

• Category/Performance: Cat6A (Class EA), 500 MHz; 10GBASE‑T; designed to meet ANSI/TIA‑568.2‑D and ISO/IEC 11801
• Ports: 24 × RJ45 (8P8C), front‑numbered 1–24 with label windows/cards
• Termination: Dual‑standard IDC (Krone & 110), T568A/B; color‑coded wiring guide
• Cable Compatibility: 22–26 AWG solid/stranded; insulation OD approx. 0.4–0.65 mm; typical cable OD 5.5–8.5 mm (varies by cable)
• Shielding/Grounding: Metal shielded jacks with shield tabs; rear grounding stud/strap for shield continuity
• PoE Support: IEEE 802.3af/at/bt compatible (up to 90 W; observe bundle size and temperature rise)
• Mounting: 1U, 19" rack (EIA/ECA‑310); includes rack screws/cage nuts and rear management bar (as supplied)
• Materials: SPCC steel chassis (black powder‑coat); nickel‑plated shield shells; contacts with nickel underplate and gold plating (typ. ≥50 μin); tinned phosphor‑bronze IDC; UL 94V‑0 PC housing
• Compliance: RoHS/REACH; interface per IEC 60603‑7‑51; UL/ETL listed variants available
• Dimensions/Weight: 482.6 mm width, 1U height; depth approx. 80–120 mm; weight ~1.2–2.0 kg (typical)
