Description

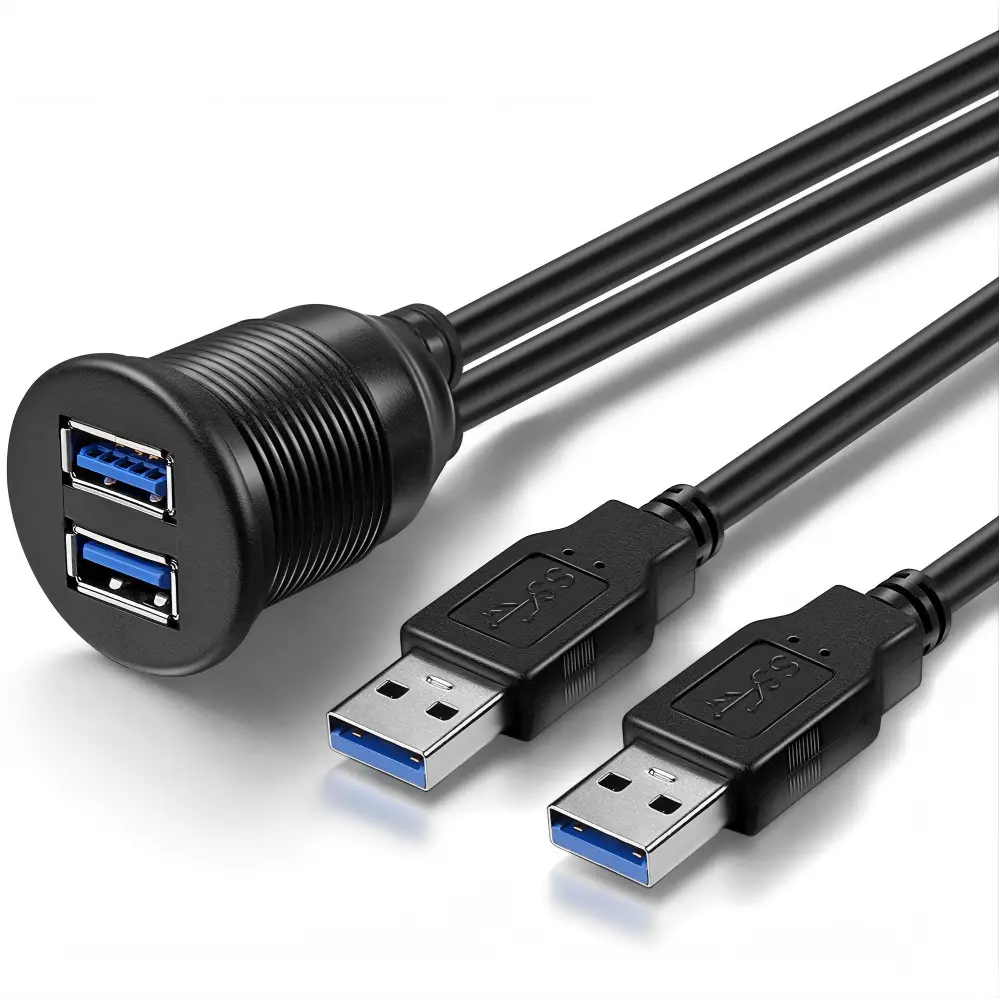

This is a round, panel-mount USB 3.0 extension cable featuring two stacked USB-A female ports in a sealed housing, each wired to an individual USB 3.0 Type-A male lead. The connector uses blue-insulator USB 3.0 interfaces for high-speed data and power distribution; the threaded round body, gasket and dust cap provide basic water and dust resistance for installation through dashboards, consoles, or bulkhead panels. Typical applications include automotive infotainment connections, marine dashboards, industrial control panels and kiosks requiring robust, accessible USB-A ports.

The product is engineered for straightforward panel installation (mounting nut and bracket included) and fleet/volume deployment. It supports USB 3.0 data rates and standard USB power delivery for downstream devices, while maintaining cable separation with a Y-style lead-out to the host. Offer configuration options — cable length, wire gauge, connector termination and housing finish — RoHS/REACH compliance and production-level quality control to match vehicle or industrial integration requirements.

Specifications

• Product Type: Round panel-mount waterproof dual USB 3.0 cable

• Host Interface: 2 × USB 3.0 Type-A male (individual leads)
• Device Interface: 2 × USB 3.0 Type-A female (stacked, panel face)

• Cable Direction: Y-split (dual male to dual female)
• IP Rating: IP67 when mated
• Lengths: Customizable on request

• Data Rate: USB 3.0 SuperSpeed up to 5 Gbps
• Cable Structure: Shielded data pairs with dedicated power conductors; molded strain relief
• Power Support: Standard USB 3.0 power (typ. up to 900 mA per port); custom power options available

• Compatibility: Backward compatible with USB 2.0/1.1 devices

• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, batch traceability, ODM support
