Description

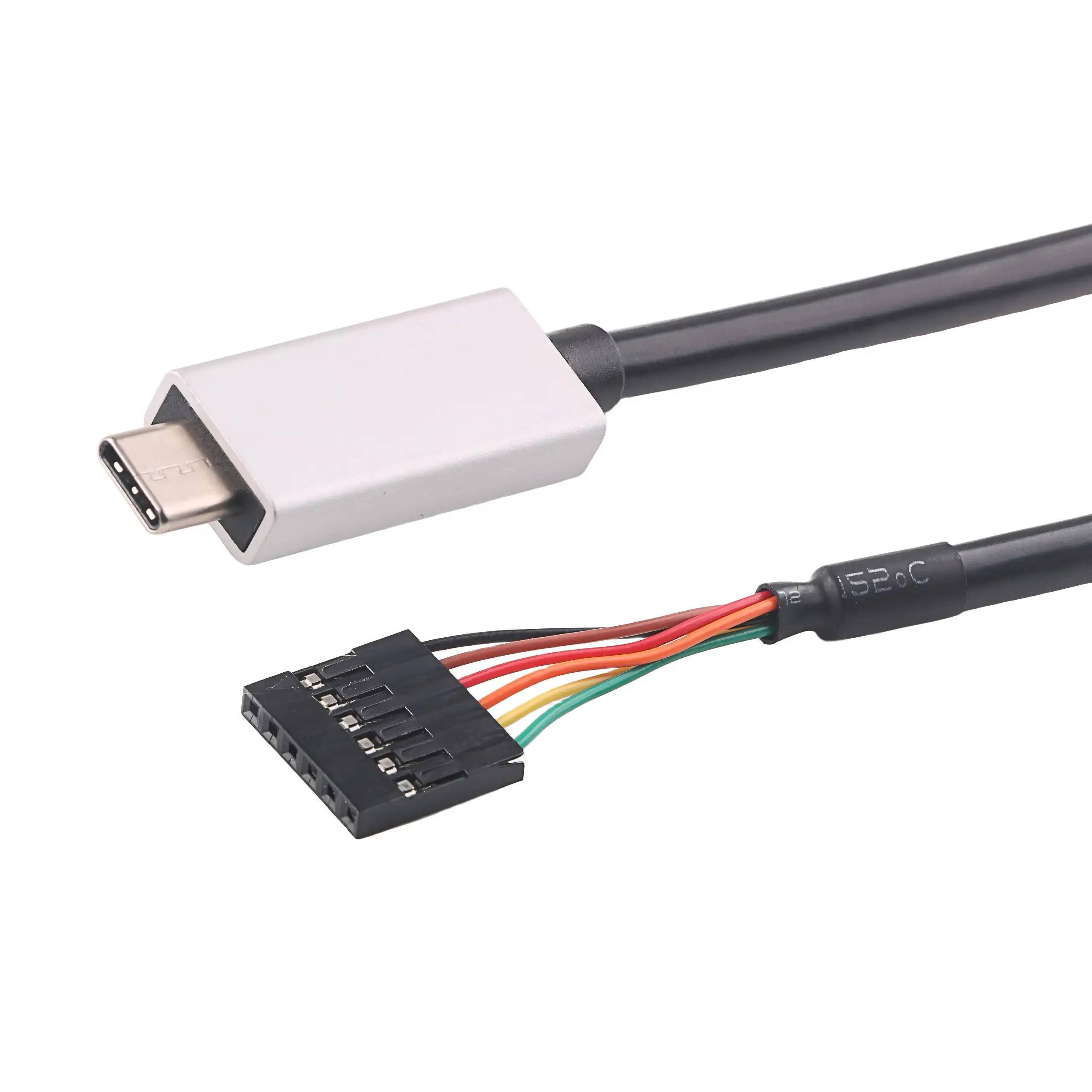

This USB‑C to TTL UART cable offers the same functionality as the USB‑A variant but with a reversible USB‑C host connector for modern laptops, tablets and USB‑C enabled controllers. Integrates a high‑quality USB‑to‑serial converter and delivers a reliable virtual COM port across Windows, macOS and Linux. Available in 3P/4P/6P Dupont headers and with selectable 3.3 V or 5 V logic options for broad device compatibility.

This Type‑C option supports plug‑and‑play convenience for newer USB‑C hosts and includes driver support where necessary. Rugged molded strain reliefs and flat or round cable options make it practical for both lab benches and fieldwork.

Specifications

• Product Type: USB‑C to TTL UART (Dupont 3P / 4P / 6P) cable
• Converter Chipset: FTDI‑class USB-to-serial converter
• Host Interface: USB-C Male
• Device Interface: 0.1" Dupont female header — 3P / 4P / 6P

• Logic Levels: 3.3 V or 5 V selectable (model dependent)

• USB Version: USB 2.0 Full Speed (12 Mbps)
• Wire Gauge: Typical 28 AWG signal conductors

• Jacket: PVC, Black (other colors on request)

• Lengths: Standard 1.8 m (custom lengths available)
• Power Design: Bus-powered from USB port (no external power)
• Data Rate: Up to multi‑megabaud (chipset/host dependent); common usage 9600–115200+ bps
• Driver Support: FTDI‑class VCP/D2XX drivers for Windows/macOS/Linux; class‑compliant behavior on supported OSes

• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, batch traceability, ODM support
