Description

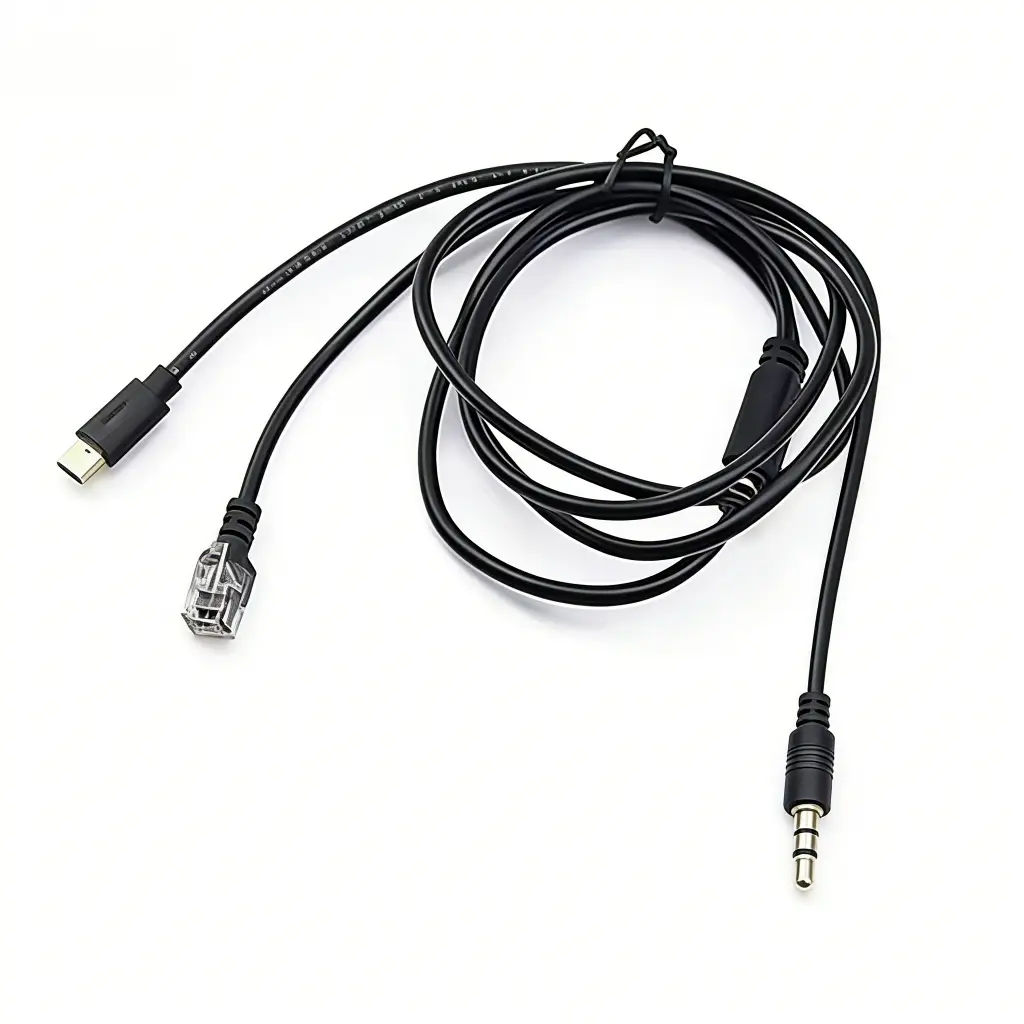

This cable provides a USB Type-C male​ connection to an RJ12 male RS-232 serial port​ plus a 3.5 mm male auxiliary plug, implemented with an integrated FTDI FT232RL-based USB-to-serial solution and an RS-232 level transceiver. It exposes standard RS-232 signals (Tx/Rx, GND and common handshake lines) on the RJ12 connector​ while the 3.5 mm auxiliary plug carries an additional control or console line used by certain CNC controllers, industrial HMIs and communication equipment.

Built for shop-floor and field service use, the cable combines FTDI virtual COM port (VCP) and D2XX driver support across Windows, macOS and Linux with shielded construction to reduce EMI in industrial environments. The cable is bus-powered from the USB-C host (no external adapter required), supports configurable baud rates, and can be supplied with custom pinouts, alternate lengths, EEPROM-programmed VID/PID or labeling to match equipment wiring and maintenance workflows. Verify the target device’s RJ12 wiring and 3.5 mm pin configuration prior to ordering when using the auxiliary plug.

Specifications

• Product Type: USB‑C to RJ12 Male RS‑232 + 3.5 mm Male auxiliary cable
• Converter Chipset: FTDI FT232RL USB-to-serial converter
• Host Interface: USB Type‑C Male
• Device Interface: RJ12 Male (standard RS-232 signal mapping)

• Auxiliary Interface: 3.5 mm Male (auxiliary control/console line)
• USB Version: USB 2.0 Full Speed (12 Mbps)

• Wire Gauge: Typical 28 AWG signal conductors (shielded)

• Jacket: PVC, Black (other colors on request)

• Lengths: Standard 1.8 m (custom lengths available)
• Power Design: Bus-powered from USB port (no external power)
• Data Rate: Configurable RS-232 baud rates; FT232RL supports up to multi-megabaud configurations (driver/host dependent)
• Driver Support: FTDI VCP and D2XX drivers for Windows/macOS/Linux; plug-and-play where supported
• Compatibility: FANUC controllers, industrial robots, PLCs and legacy RS‑232 equipment (verify RJ12 pinout)
• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, batch traceability, ODM support
