Description

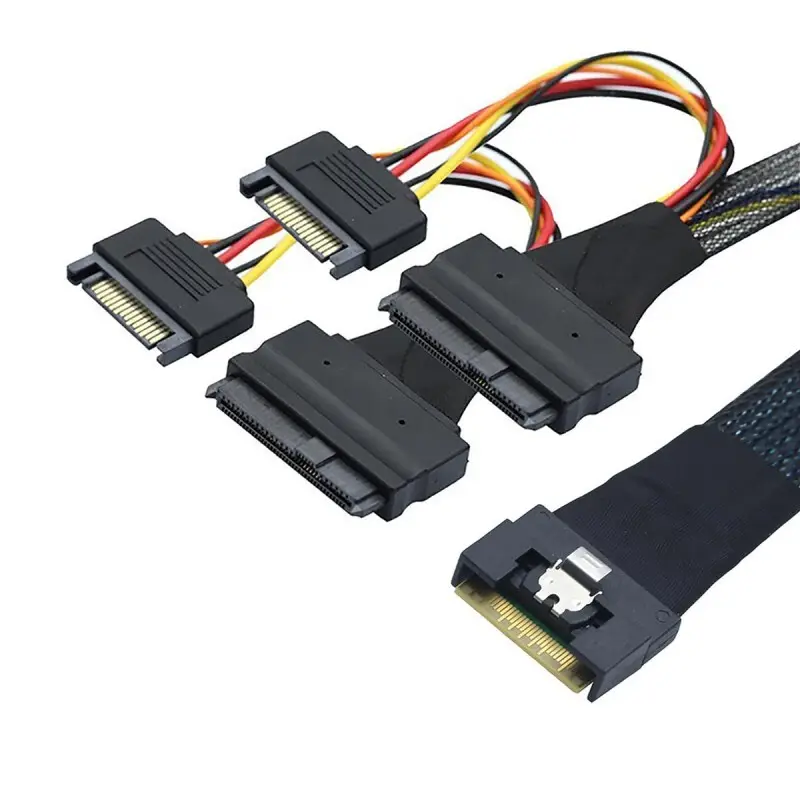

Connect a motherboard/HBA SlimSAS SFF‑8654 8i port to two U.2 drives or backplane ports. Each branch provides a U.2 SFF‑8639 connector plus a 15‑pin SATA power lead to supply 12 V/5 V/3.3 V to the drive. OFC copper and multi‑layer shielding maintain 100 Ω differential impedance for reliable in‑chassis runs. This is a straight‑through cable—no protocol conversion.

Specifications

• Connectors: 1× SFF‑8654 8i → 2× SFF‑8639 (U.2) with 15‑pin SATA power inputs
• Lane mapping: x8 → 2× x4
• Performance: up to PCIe Gen4 x4 per drive (backward compatible with Gen3); SAS supported when used with a tri‑mode controller
• Cable: 32AWG shielded twinax, low‑profile
• Use: internal only; RoHS compliant
