Description

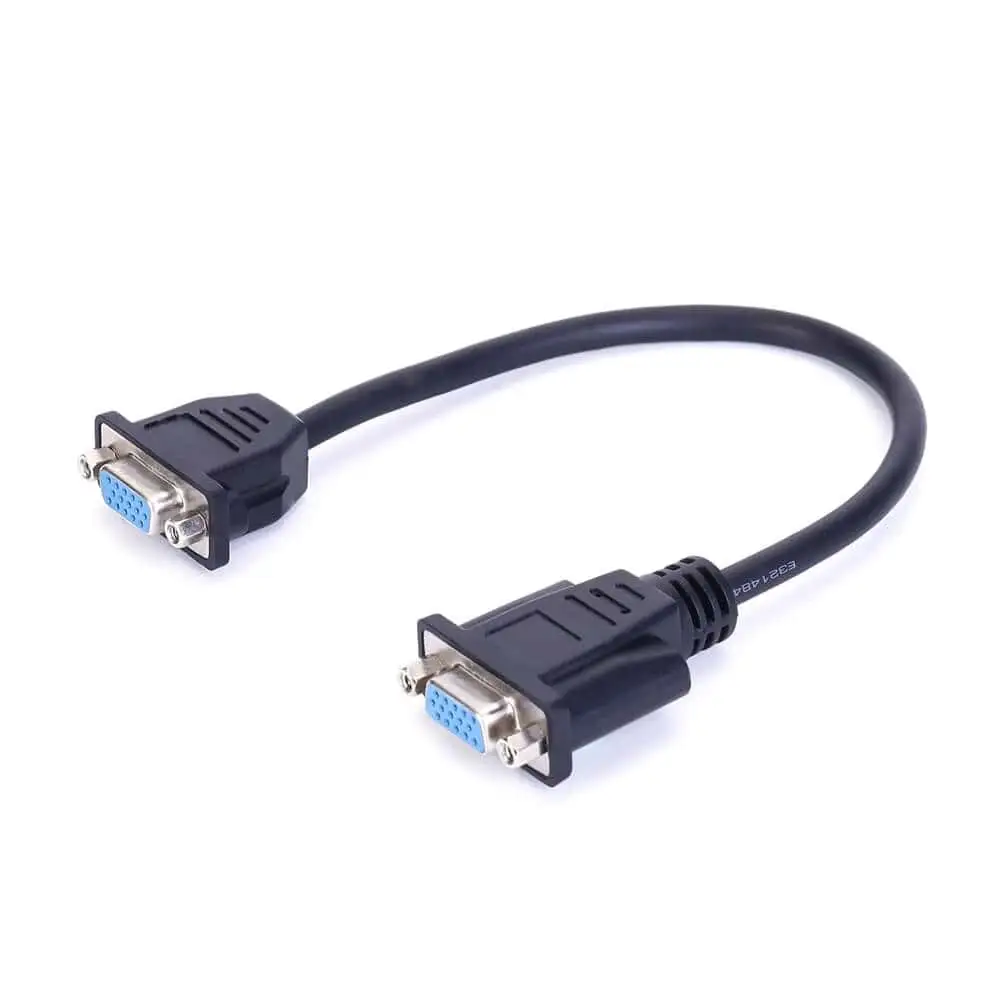

The cable provides an ideal solution for combining two VGA cables to achieve secure connectivity through a panel. Now, you can effortlessly provide display connectivity from a source located in a secure environment.
Its short length and cutting-edge design ensure the minimal signal loss, guaranteeing an optimal viewing experience.
And it supports video resolutions up to 2048×1536 (QXGA), including popular resolutions like 1920×1200 (WUXGA), 1600×1200 (UXGA), 1680×1050 (WSXGA+), 1400×1050 (SXGA+), 1280×800 (WXGA), 1024×768 (XGA), 800×600 (SVGA), and 640×480 (VGA).
Our VGA HD15 cable’s fully-shielded conductors provide complete immunity to EMI/RFI interference, while the 24-K gold-plated connectors ensure superior signal transfer.
Each cable is thoroughly tested to meet industry standards, assuring seamless functionality.
Its specifications:
- Nut and Screw type: #4-40 nickel plated
- Cable Conductor: Tinned Copper
- Insulation: Foamed PE SKIN/HDPE
- Wire Gauge: 30AWG 7/0.10mm
- Shielding: twisted pair of Aluminum Foil, Overall Aluminum Foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Outter diameter: 6.0±0.2mm
- Compliance: RoHS, REACH, CE
Furthermore, you can trust our 2-year warranty for unmatched peace of mind. Overall, contact us today and invest in this cable.
