Description

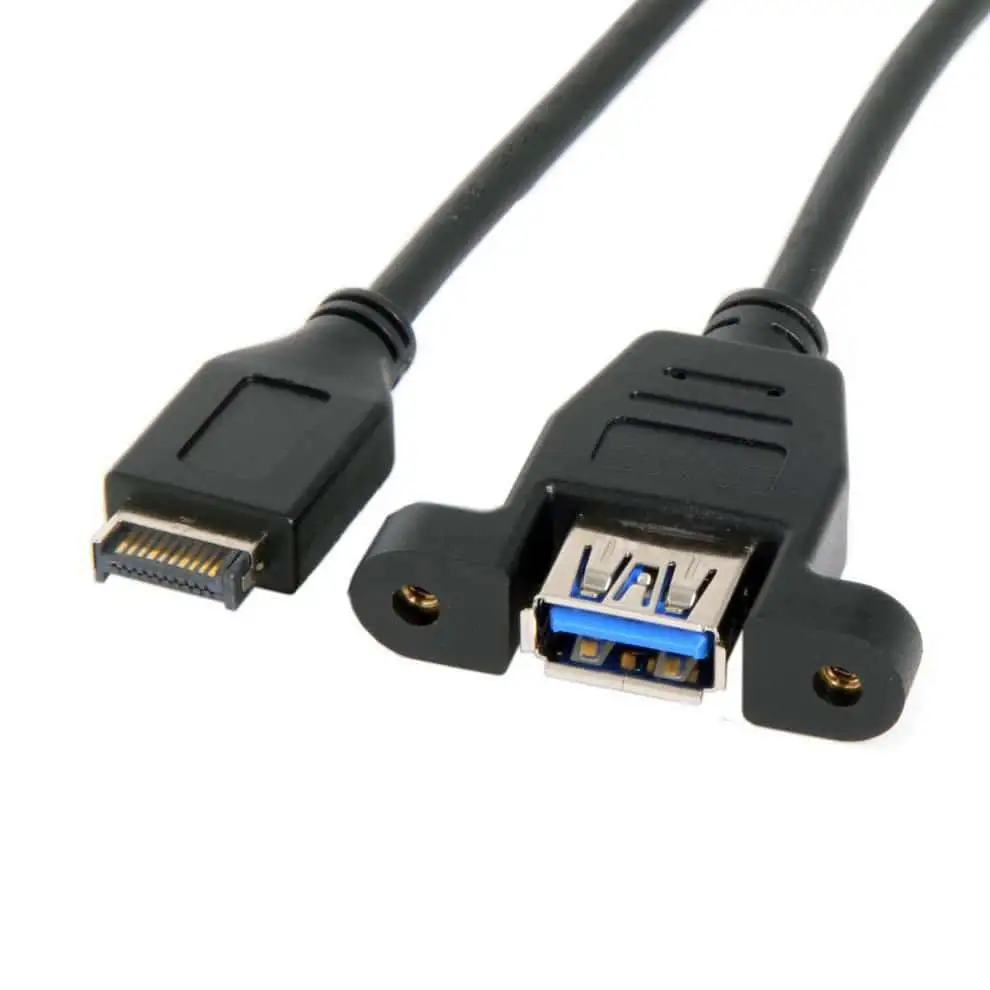

The USB Type-E to USB 3.0 A Panel Mount Cable impresses with its durability and versatility.
Crafted with precision, it features a robust M3 nickel-plated nut and screw type for secure connections.
With support for super-speed USB 3.0 devices at 5 Gbps and backward compatibility with USB 2.0, it ensures swift data transmission across various devices.
Shielded with aluminum foil and braiding, it maintains signal integrity, while RoHS and REACH compliance ensure quality and environmental responsibility.
In summary, it’s a reliable solution for seamless and high-speed connectivity needs.
Its specifications:
- Connector 1: USB Type-E male
- Connector 2: USB 3.0 Type-A female with screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 30±0.5mm
- Cable Conductor: Bare Copper
- Wire Gauge: 28/28/24AWG
- Outer diameter: 5.5±0.15mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
- Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps), and low speed USB 1.0 (1.5 Mbps)
- Compliance: RoHS, REACH
