Description

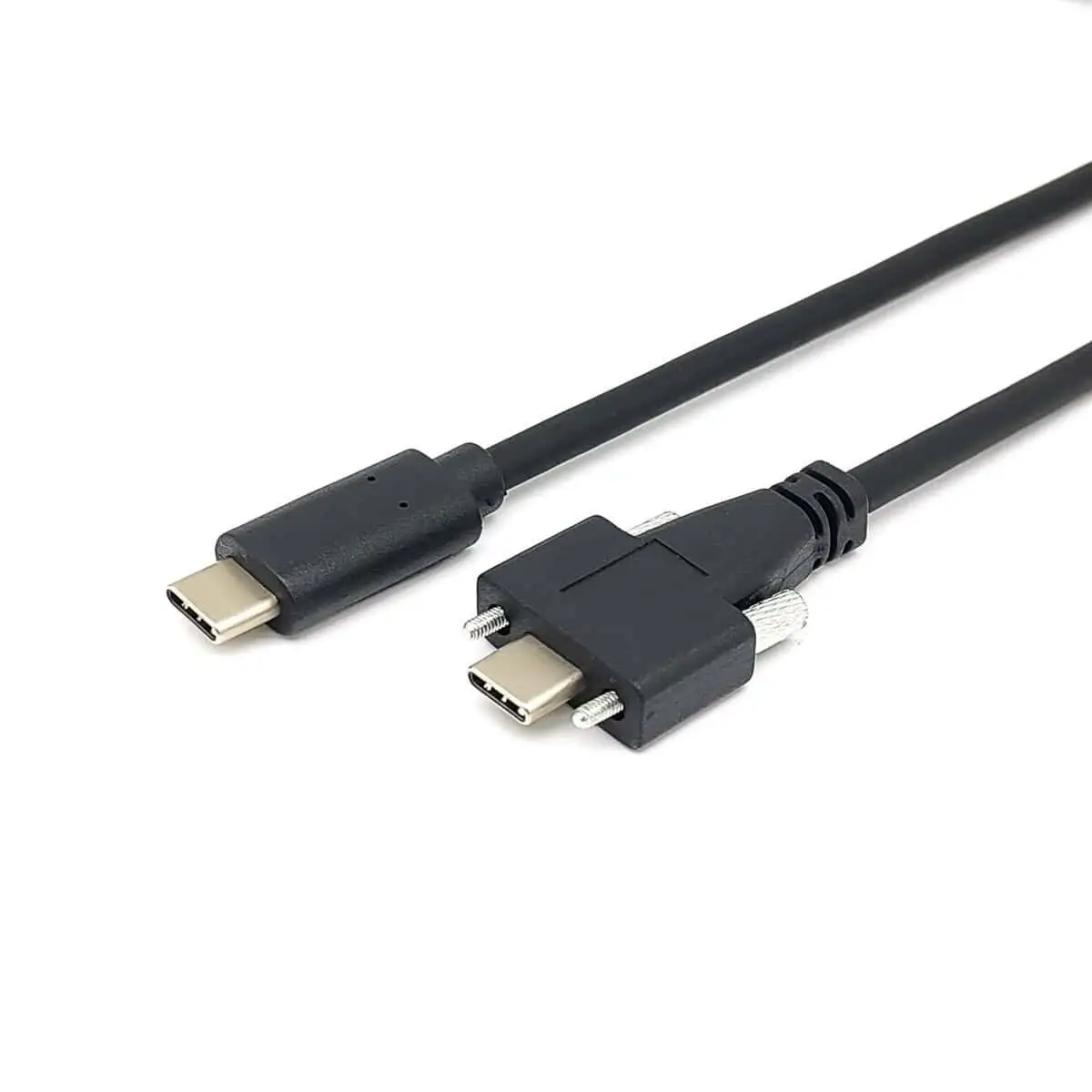

An essential addition for professional setups, the USB 3.1 Type C USB-C Panel Mount Cable guarantees secure connectivity with its dual screw locking mechanism and M2 nickel plated nut and screw type.
Its robust construction, including tinned copper conductor and aluminum foil shielding, ensures reliable data transfer at ultra-fast speeds of up to 10Gbps, supporting resolutions up to 4K@60Hz and USB quick charging up to 100W, making it a top choice for high-performance applications.
Compliance with RoHS and REACH further underscores its commitment to quality and environmental responsibility.
Its specifications:
- Connector 1: USB 3.1 Type C male with dual screw locking
- Connector 2: USB 3.1 Type C male
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M2 nickel plated
- Hole Pitch: 15±1mm
- Cable Conductor: Tinned Copper
- Wire Gauge: 32/32/21AWG
- Outer Diameter: 4.5±0.2mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support up to a 4K@60Hz resolution
- Ultra-Fast Data Transfer/Sync (up to 10Gbps), also support USB quick charging up to 100W
- Compliance: RoHS, REACH
