Description

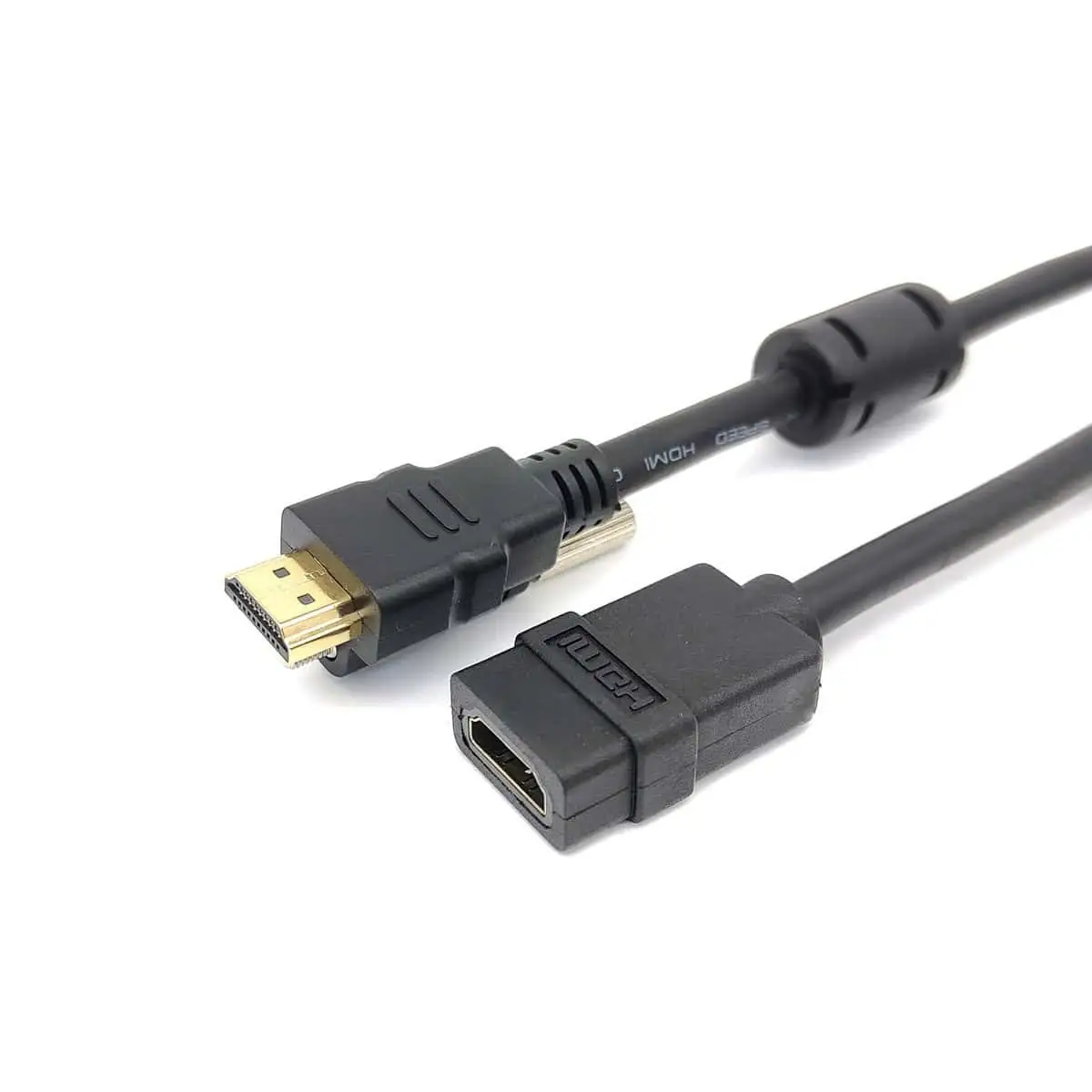

Introducing our HDMI 2.0 Panel Mount Cable: A sleek solution for seamless connectivity. With a total length of just 0.2m, it’s compact yet powerful.
Featuring a female HDMI connector with M3 screw locking, ensuring a secure fit. Both connectors boast gold plating for superior conductivity.
With a bare copper conductor and shielding of aluminum foil and braiding, it guarantees optimum signal transmission. Its PVC jacket adds durability for long-lasting performance.
Experience crystal-clear video resolutions up to 4K@60Hz, with a bandwidth of up to 18Gbps. Rest assured, it’s certified with RoHS and REACH standards. Upgrade your setup with confidence.
Its specifications:
- Connector 1: HDMI 2.0 female, gold plated
- Connector 2: HDMI 2.0 male with screw locking, gold plated
- Cable Conductor: Bare copper
- Hole Pitch: 9.5mm
- Wire Gauge: 28+30AWG
- Outer Diameter: 7.3mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Bandwidth up to 18Gbps
- Video resolution up to 4K@60Hz
- 3D video, Deep Color and x.v. Color™
- Compliance: RoHS, REACH
