Description

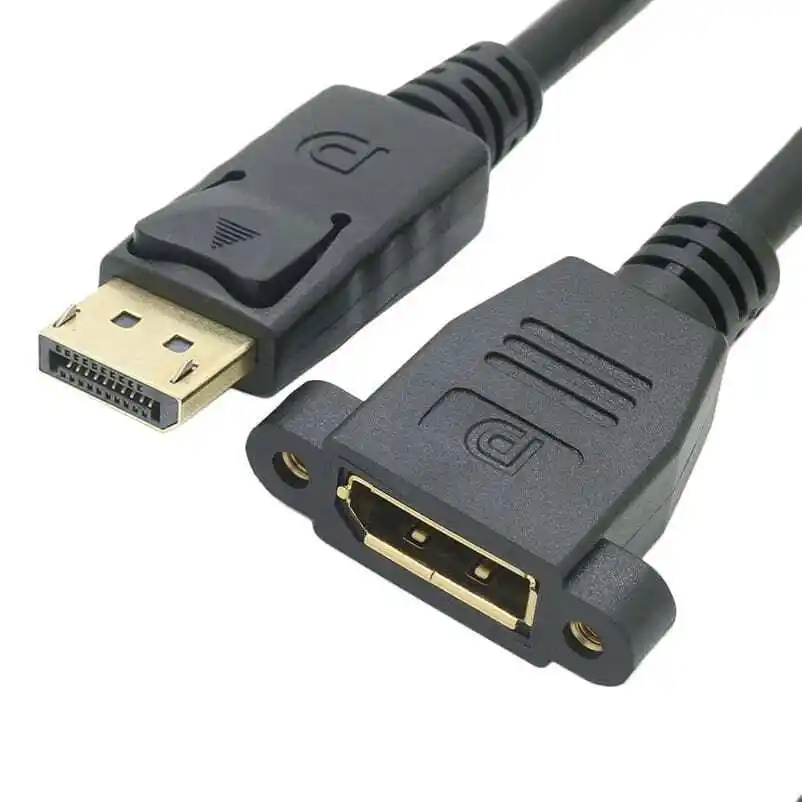

FARSINCE DisplayPort 1.4 Panel Mount Extension Cable: Elevate your connectivity with uncompromising quality. Featuring a male to female configuration, one female connector is equipped with M3 screw locking and a precise hole pitch of 27±1mm for secure mounting.
Crafted with a bare copper conductor and shielding of aluminum foil and braiding, it ensures pristine signal transmission. The ABS shell for the DisplayPort male and injection molding for the female connector guarantee durability and reliability.
Experience stunning 8K resolution with support for High Bit Rate (HBR) bandwidth, all built to DisplayPort 1.4 standards. Plus, rest assured with RoHS and REACH certifications. Upgrade to superior connectivity today.
Its specifications:
- Connector 1: DisplayPort 1.4 male, gold plated
- Connector 2: DisplayPort 1.4 female with screw locking, Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 27±1mm
- Cable Conductor: Bare Copper
- Wire Gauge: 28AWG
- Outer Diameter: 7.3±0.2mm
- Shielding: Aluminum foil, Braiding
- Housing: ABS shell for DisplayPort male, Injection molding for DisplayPort female
- Jacket: PVC
- Supports a High Bit Rate (HBR) bandwidth and up to a 8K resolution
- Built to DisplayPort 1.4 standard
- Compliance: RoHS, REACH
