Description
Farsince CAT6A S/FTP Shielded and Foiled Ethernet installation cable, is ideal for for high performance data communications for voice, data, video and security capabilities.

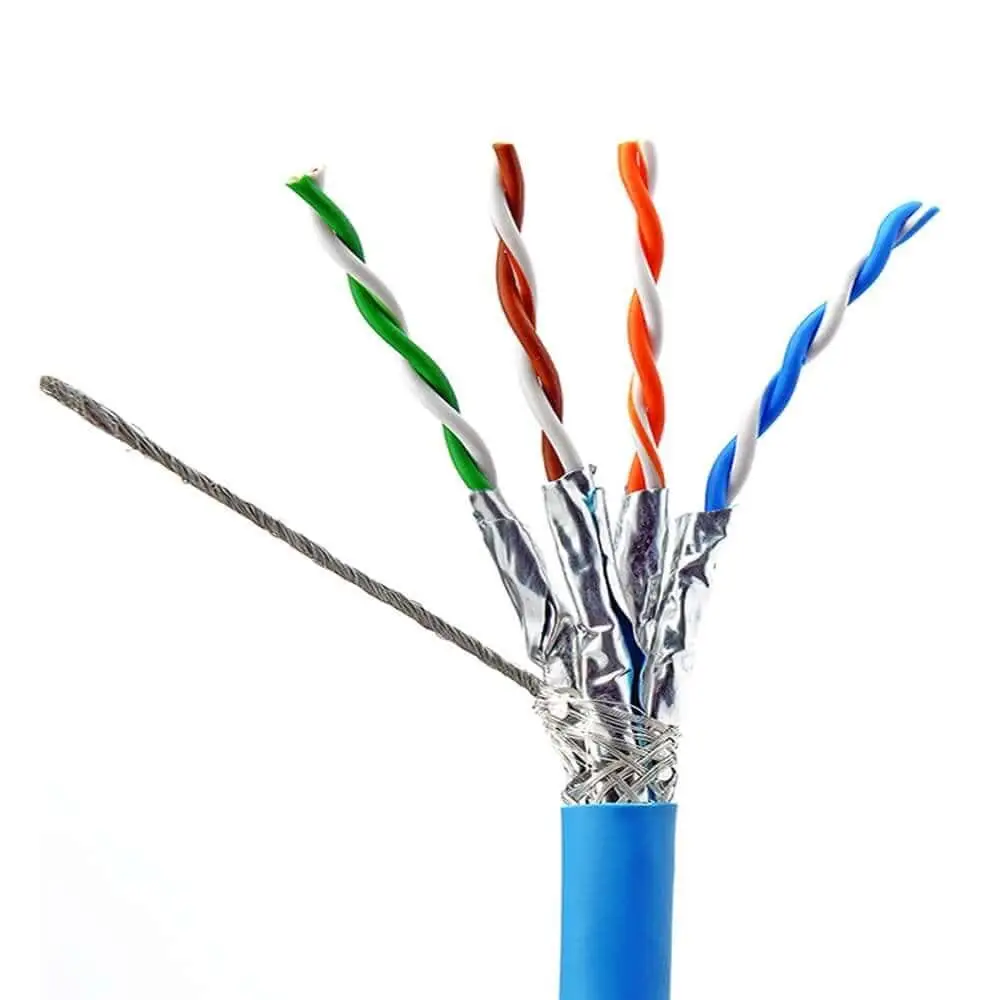

This Cat6A Bulk Cable enables 10-Gigabit data transmission and allows for faster banderwith up to 500MHz Composed of four individually shielded pairs of 23 gauge solid bare copper conductors, with an overall Aluminum Magnesium Alloy braid shield, in order to repel electromagnetic interference (EMI) in electrically noisy environments, the CAT6A bulk Ethernet cable has an overall LSZH jacket and sequential foot or meter markings on the jacket so you always know how much it left.
Key Features
- S/FTP
- 23AWG 0.57mm Solid Oxygen-free Copper,
- Foam-Skin insulation,
- PVC/CMR/CMP/LSZH /PE Jacket options
- More color options
- Tested by Fluke and Network analyser
- ROHS, REACH Compliance
- CPR Eca, Dca Certificated
Standard Compliance
- IEC/ISO 11801
- ISO/IEC 61156-5
- ANSI/TIA568C.2
Specifications
- Conductor : 23AWG (1/0.57mm), Solid Bare Copper
- Insulation: Foam skin PE
- Shielding: Individual pair shielding by aluminum foil
- Braiding: 16/6/0.12 AL-MG
- Outer Diameter: 7.8 ± 0.2mm
- Jacket Options: PVC, LSZH, CM, CMR(Riser), CMP(Plenum), PE (Outdoor),
- Color: Grey/White/Blue/Black or Customized
Download:
- Datasheet of Cat6A S/FTP Netwoking installation bulk cable
Order Information:
- FS17007A-PVC: PVC
- FS17007A-LSZH: LSZH
- FS17007A-CM: CM Rated
- FS17007A-CMR: CMR Riser
- FS17007A-PE: PE for outdoor
- FS17007B-PVC: CCA Conductor, PVC Jacket
- FS17007B-LSZH: CCA Conductor, LSZH Jacket
- FS17007B-PE: CCA Conductor, PEJacket
