Description

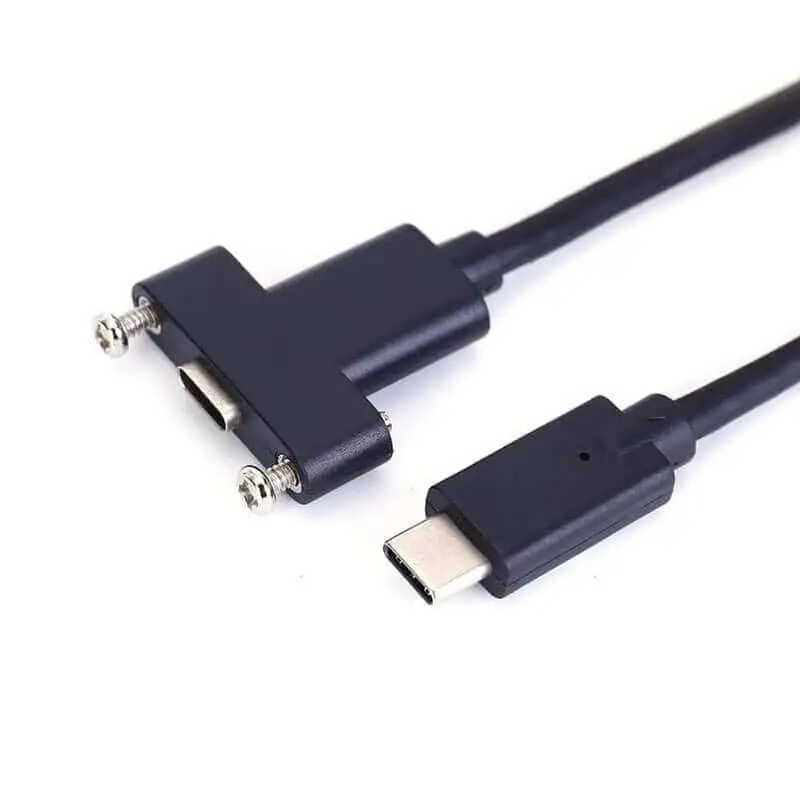

This high-performance cable is the perfect solution for extending Thunderbolt 3 & USB4 connectivity through a panel, ideal for secure location display connectivity.
It is designed for minimal signal loss, effectively transmitting audio and video signals for top-notch video streaming or gaming experiences.
Our thunderbolt extension cable features a screw design for secure connections and supports 40Gbps for lengths less than 0.8m or 20Gbps for lengths less than 2.0m.
It can power two 4K resolutions or a single 8K resolution, making it an indispensable asset for your tech arsenal.
Its specifications:
- Connector 1: Thunderbolt 3 & USB4 (USB Type-C) Male
- Connector 2: Thunderbolt 3 & USB 4 (USB Type-C) Female with screw locking
- Nut and Screw type: #4-40 nickel plated
- Hole pitch: 25±0.2mm
- Gold-plated contact, Nickel plated shell
- Cable Conductor: Tinned Copper
- Cable Type: Twisted or Coaxial
- Insulation: Foamed PE SKIN/HDPE
- Wire Gauge: 30AWG
- Shielding: twisted pair of Aluminum Foil, Overall Aluminum Foil, Tinned copper Braiding
- Housing: Injection molding
- Jacket: PVC
- Outer diameter: 4.5±0.2mm
- Data transfer rate: 40Gbps
- Video resolution: up to 8K@60Hz
Moreover, the cable complies with RoHS, REACH, and CE standards, guaranteeing product safety and quality. Thus, contact us today and invest in this Thunderbolt extension cable.
