Description

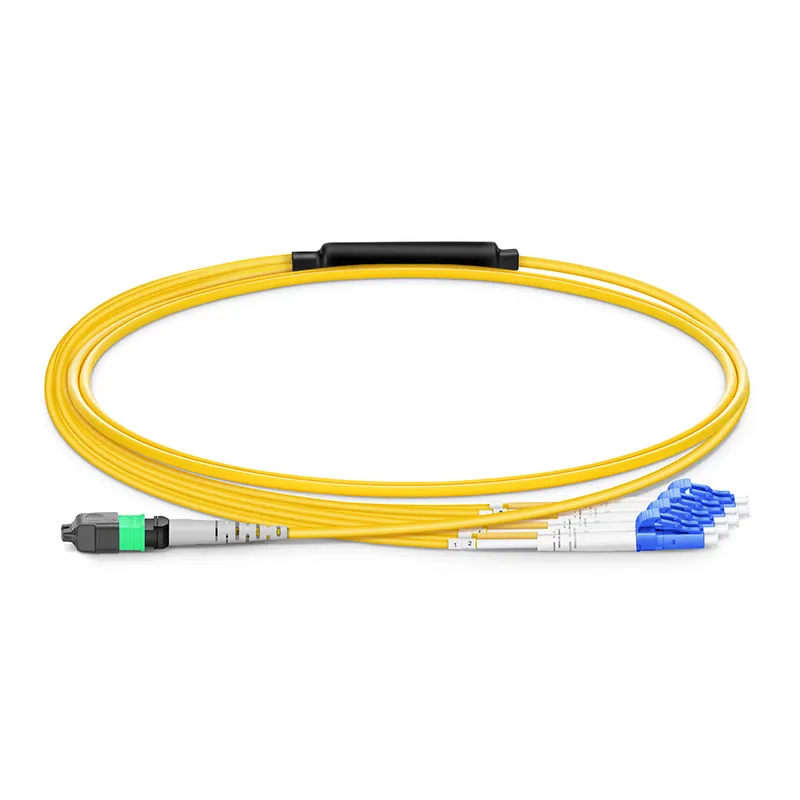

The Farsince OM4 MTP/MPO to LC Breakout Cable is designed for high-density fiber cabling and SR4 breakout applications in data centers. It supports 8-fiber and 12-fiber configurations, with an MTP/MPO connector on one end and LC/UPC duplex legs on the other.

Built with OM4 50/125 μm multimode fiber, this cable is supplied with Type B mapping and female MTP/MPO connectors by default. The 3.0 mm trunk and 2.0 mm labeled legs help support organized installation in dense patching environments, while PVC or LSZH jacket options are available for different project requirements.

Farsince also supports customization for fiber count, polarity, cable length, jacket type, and labeling. Each assembly is factory terminated and tested to help ensure consistent quality and reliable field performance.

Specifications

• Fiber Type: OM4 multimode, 50/125 μm, EMB ≥4700 MHz·km @850 nm
• Fiber Count: 8F or 12F
• Breakout Configuration: 8F → 4 × LC duplex; 12F → 6 × LC duplex
• Connector A: MTP/MPO multimode PC, default female
• Connector B: LC/UPC duplex
• Polarity / Mapping: Type B breakout by default; Type A/C customizable
• Cable Structure: 3.0 mm round trunk + 2.0 mm legs
• Leg Length: Default 0.5 m; 0.3–1.0 m optional
• Strength Member: Aramid yarn
• Jacket Options: PVC (OFNR) or LSZH
• Cable Color: Aqua or Erika violet
• MTP/MPO Elite Performance: IL ≤0.35 dB @12F, ≤0.25 dB @8F, RL ≥20 dB
• MTP/MPO Standard Performance: IL ≤0.75 dB @12F, RL ≥20 dB
• LC End Performance: IL ≤0.3 dB, typical 0.2 dB, RL ≥20 dB
• Bend Radius: ≥10D static, ≥20D dynamic
• Operating Temperature: -20°C to +70°C
• Typical Reach: 10G SR up to 550 m; 40/100G SR4 up to 150 m
• Compliance: IEC 61754-7-3, IEC 61754-20, IEC 60794/61300, TIA-568.3-D, RoHS, REACH
