Description

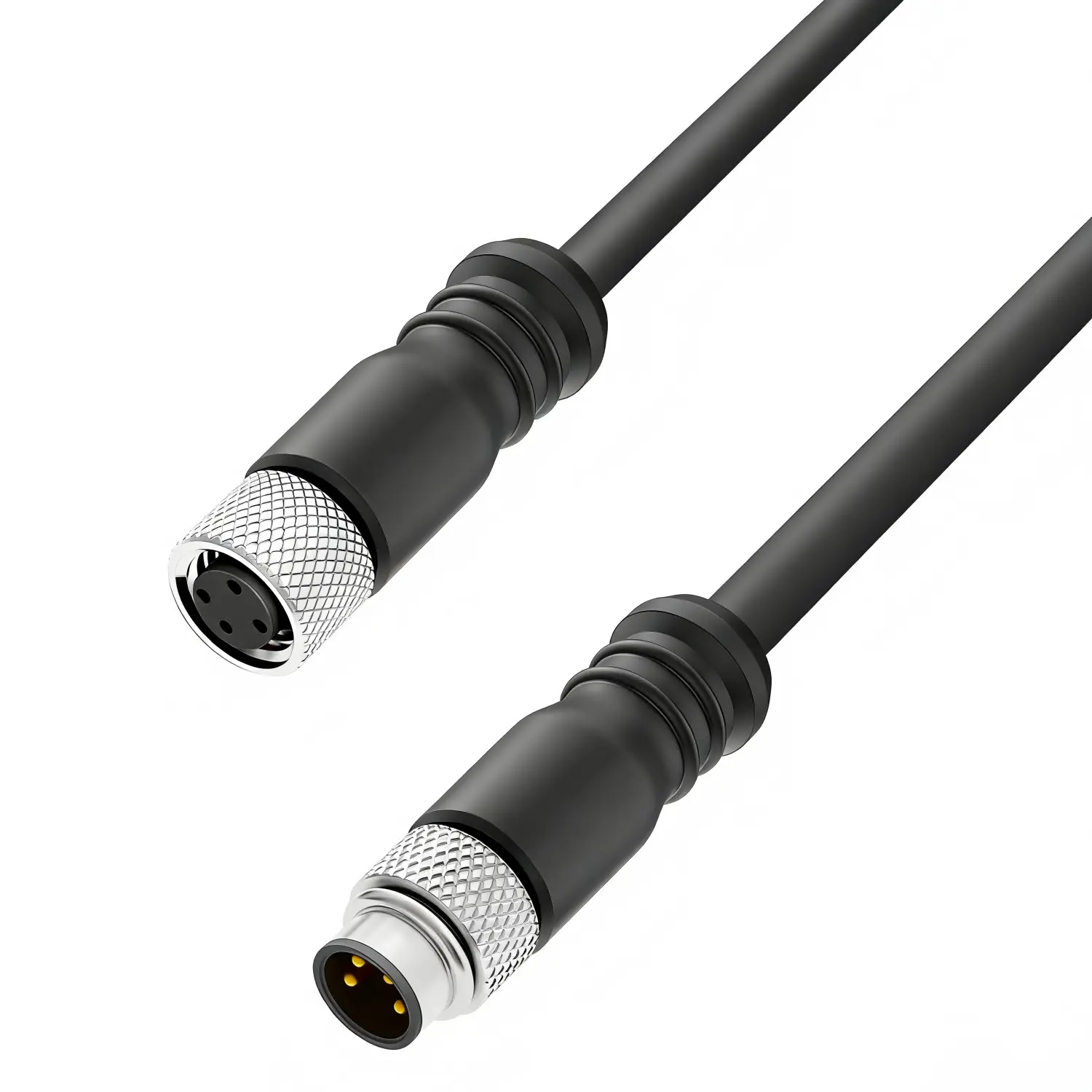

This is a straight M8 A‑Code 4‑pin male to M8 A‑Code 4‑pin female cable. This male‑to‑female cable provides a compact extension or in‑line connection for sensors, actuators and discrete/analog I/O, simplifying installation where a mated IP67 connection is required.

Constructed with 4 × 0.25 mm² stranded copper conductors and HDPE insulation, the cable provides a compact 4.20 ± 0.30 mm O.D. and a minimum bend radius of 7.5 × D for reliable routing (≈31 mm). The black outer jacket is available in PVC for fixed installations or PUR for enhanced oil/abrasion resistance and flex life; the assembly maintains IP67 when mated. Unshielded by default; shielding options available for EMI‑sensitive environments.

Specifications

• Product Type: M8 A-Code 4-Pin Male to Female Cable (straight)
• Connector: M8 A-Code 4-Pin Male & Female, nickel‑plated shell
• Termination: M8 connectors (both ends)
• Conductor: 4×0.25 mm² (14×0.15 mm) stranded copper
• Insulation: HDPE
• Jacket: PVC/PUR, Black
• Cable O.D.: 4.20 ± 0.3 mm
• Min bend radius: 7.5 × D (≈31 mm)

• Lengths: 1 m, 3 m, 5 m (custom lengths available on request)
• IP Rating: IP67 when mated
• Operating Temp: −40 °C to +80 °C
• Installation Temp: −5 °C to +60 °C

• Compatibility: Sensors, actuators, digital I/O, PLC I/O — Not recommended for high‑speed Ethernet
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
