Description

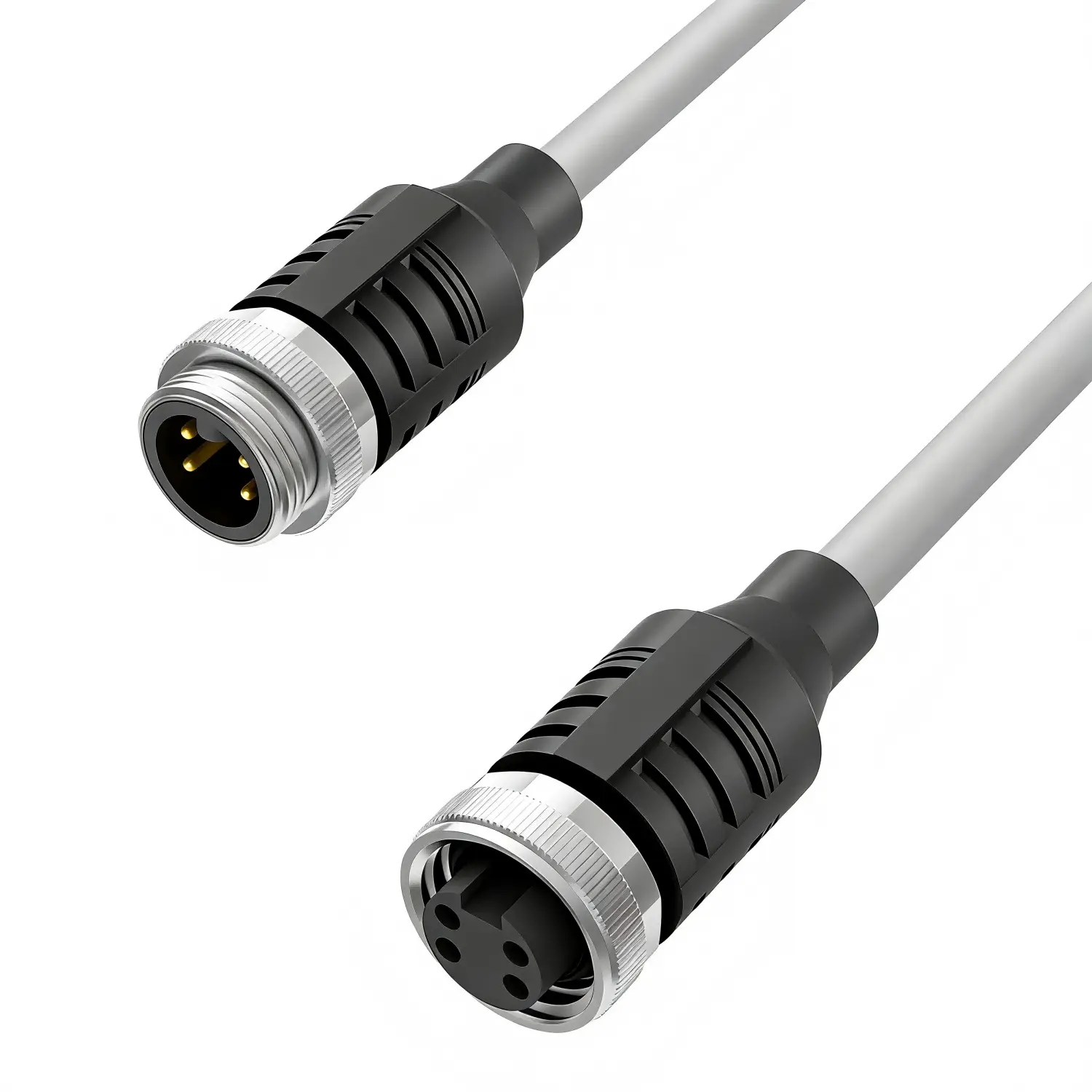

This is a straight 7/8" A‑Code 4‑pin male to 7/8" A‑Code 4‑pin female inline cable. This 7/8“ male‑to‑female cable provides compact, sealed extension runs between sensors, actuators and I/O modules where a vibration‑resistant, threaded IP67 connection is required.

Built with 4 × 1.5 mm² stranded copper conductors, PP insulation and a 7.80 ± 0.40 mm O.D.. The black outer jacket is available in PVC for fixed installations or PUR for enhanced oil/abrasion resistance and flex life; the cable maintains IP67 when mated (recommended torque 1.5 Nm). Default unshielded; optional shielded versions for EMI control.

Specifications

• Product Type: 7/8" A‑Code 4‑Pin Male to Female Cable (straight)
• Connector: 7/8" A‑Code 4‑Pin Male & Female, nickel‑plated shell, self‑locking thread
• Termination: 7/8" connectors (both ends)
• Conductor: 4 × 1.5 mm² (42 × 0.10 mm) stranded copper
• Insulation: PP
• Jacket: PVC/PUR, Grey (other colors on request)
• Cable O.D.: 7.80 ± 0.40 mm
• Min bend radius: Static ≥ 6 × OD (≈ 46.8 mm); Recommended dynamic/flex ≥ 7.5 × OD (≈ 58.5 mm)
• Lengths: 3 m, 5 m, 10 m (custom lengths available on request)
• IP Rating: IP67 when mated
• Operating Temp: −40 °C to +80 °C
• Installation Temp: −5 °C to +60 °C

• Compatibility: Industrial sensors, actuators, valves, power and I/O points — Not recommended for high‑speed Ethernet
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
