Description

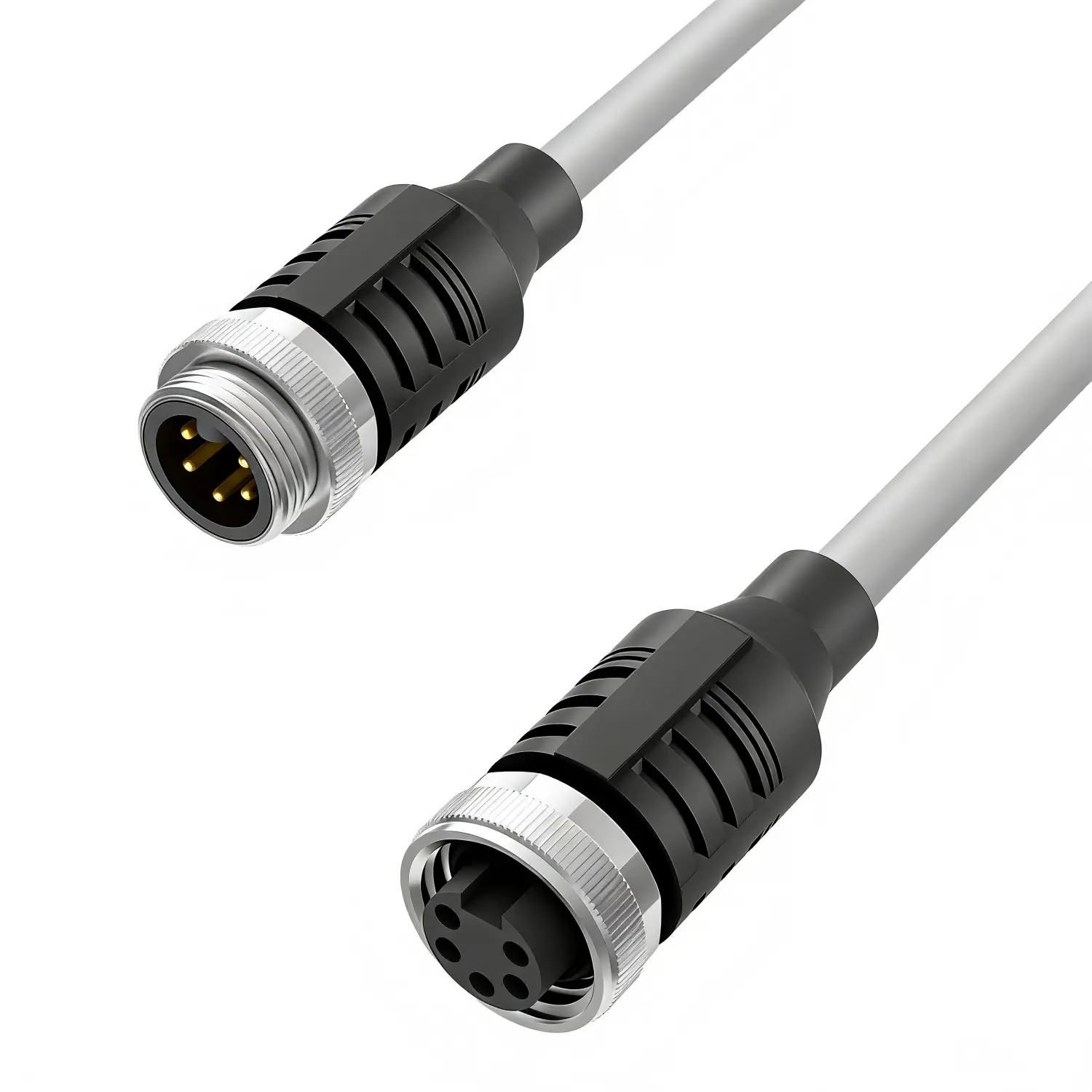

This is a straight 7/8" A‑Code 5‑pin male to 7/8" A‑Code 5‑pin female inline cable. This 7/8“ male‑to‑female cable provides compact, sealed extension runs between devices, sensors and actuators where a vibration‑resistant, threaded IP67 connection is required.

Built with 5 × 1.5 mm² stranded copper conductors and PP insulation, the cable O.D. is 8.90 ± 0.40 mm. PVC or PUR jackets available on request for specific installation needs. Both ends use 7/8" A‑Code connectors; IP67 is achieved when mated and tightened (recommended torque 1.5 Nm). Default unshielded; shielded variants are available.

Specifications

• Product Type: 7/8" A‑Code 5‑Pin Male to Female Cable (straight)
• Connector: 7/8" A‑Code 5‑Pin Male & Female, nickel‑plated shell, self‑locking thread
• Termination: 7/8" connectors (both ends)
• Conductor: 5 × 1.5 mm² (84 × 0.15 mm) stranded copper
• Insulation: PP
• Jacket: PVC/PUR, Grey (other colors on request)
• Cable O.D.: 8.90 ± 0.40 mm
• Min bend radius: Static ≥ 4 × OD (≈ 35.6 mm); Recommended dynamic ≥ 7.5 × OD (≈ 66.8 mm)
• Lengths: 3 m, 5 m, 10 m (custom lengths available on request)
• IP Rating: IP67 when mated
• Operating Temp: −40 °C to +80 °C
• Installation Temp: −5 °C to +60 °C

• Compatibility: Industrial sensors, actuators, valves, power and I/O points — Not recommended for high‑speed Ethernet
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
