Description

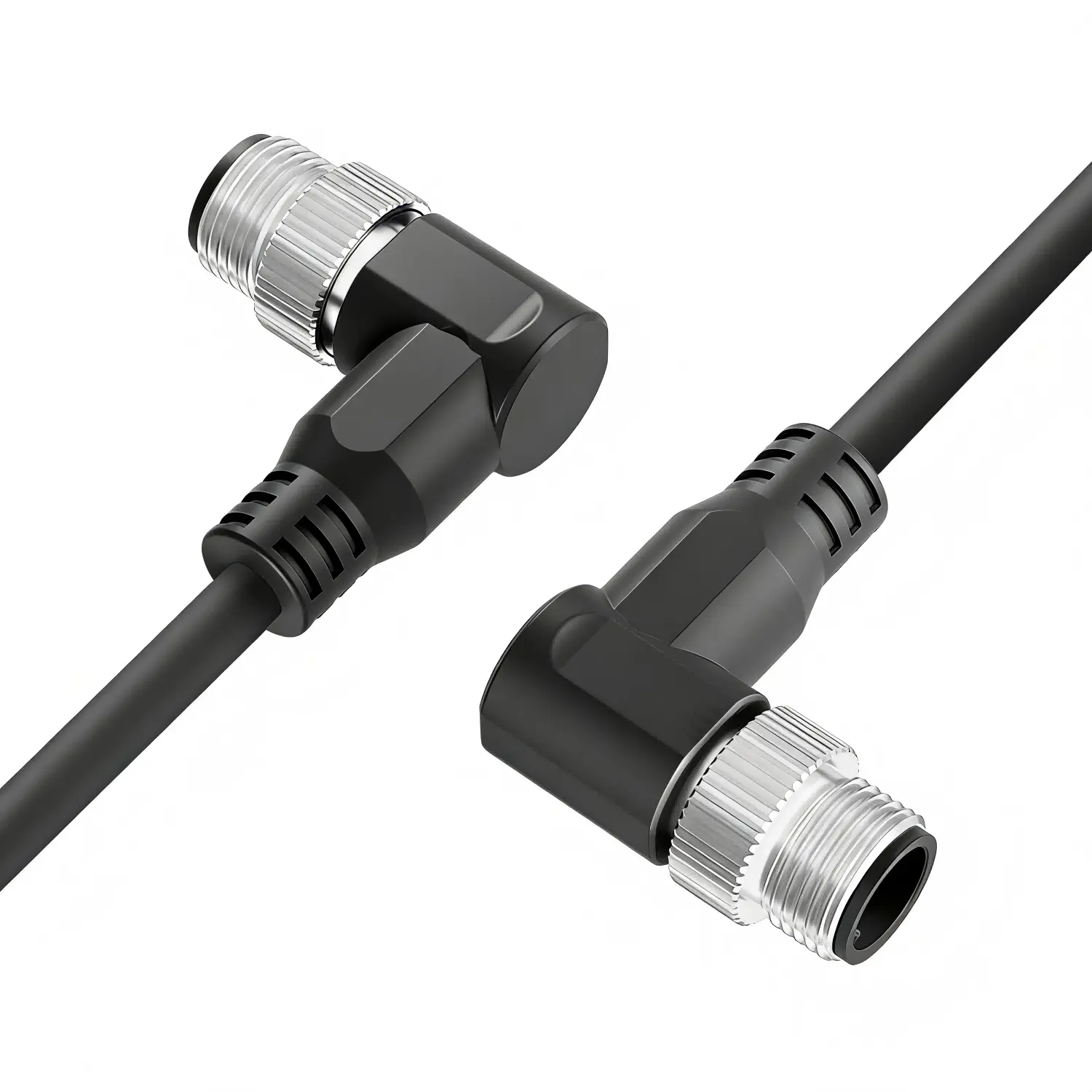

This product is an M12 A‑Code 5‑pin male right‑angle to open wires cable. The cable features a black outer jacket in either ​cost-effective PVC for fixed runs or oil- and flex-resistant PUR for dynamic applications, both maintaining an IP67 seal when mated. The elbow M12 male provides a perpendicular mating orientation to standard A‑code female ports while the other end exposes five conductors for stripped, tinned or ferruled terminations to terminal blocks or harnesses.

Built from 5 × 0.34 mm² stranded conductors with HDPE insulation and a compact 5.4 mm O.D., this product supports robust field routing with a 7.5D minimum bend radius. Default unshielded construction can be upgraded with braided shield. It is intended for sensor mounts, machine flanges, panel edges and other tight spaces where a straight connector would obstruct adjacent components or routing paths.

Specifications

• Product Type: M12 A-Code 5-Pin Male Right‑Angle (Elbow) to Open Wires Cable
• Connector: M12 A-Code 5-Pin Male, right‑angle, nickel‑plated shell
• Termination: Open wires (options: stripped; tinned; ferruled)
• Conductor: 5×0.34 mm² (19×0.15 mm) stranded copper
• Insulation: HDPE
• Jacket: PVC/PUR, Black
• Cable O.D.: 5.4 ± 0.3 mm
• Min bend radius: 7.5 × D (≈41 mm)

• Lengths: 3 m, 5 m, 10 m (custom lengths available on request)
• IP Rating: IP67 when mated
• Operating Temp: −40 °C to +80 °C
• Installation Temp: −5 °C to +60 °C

• Compatibility: IO‑Link, digital I/O, sensors, actuators, PLC I/O — Not recommended for high‑speed Ethernet
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
