Description

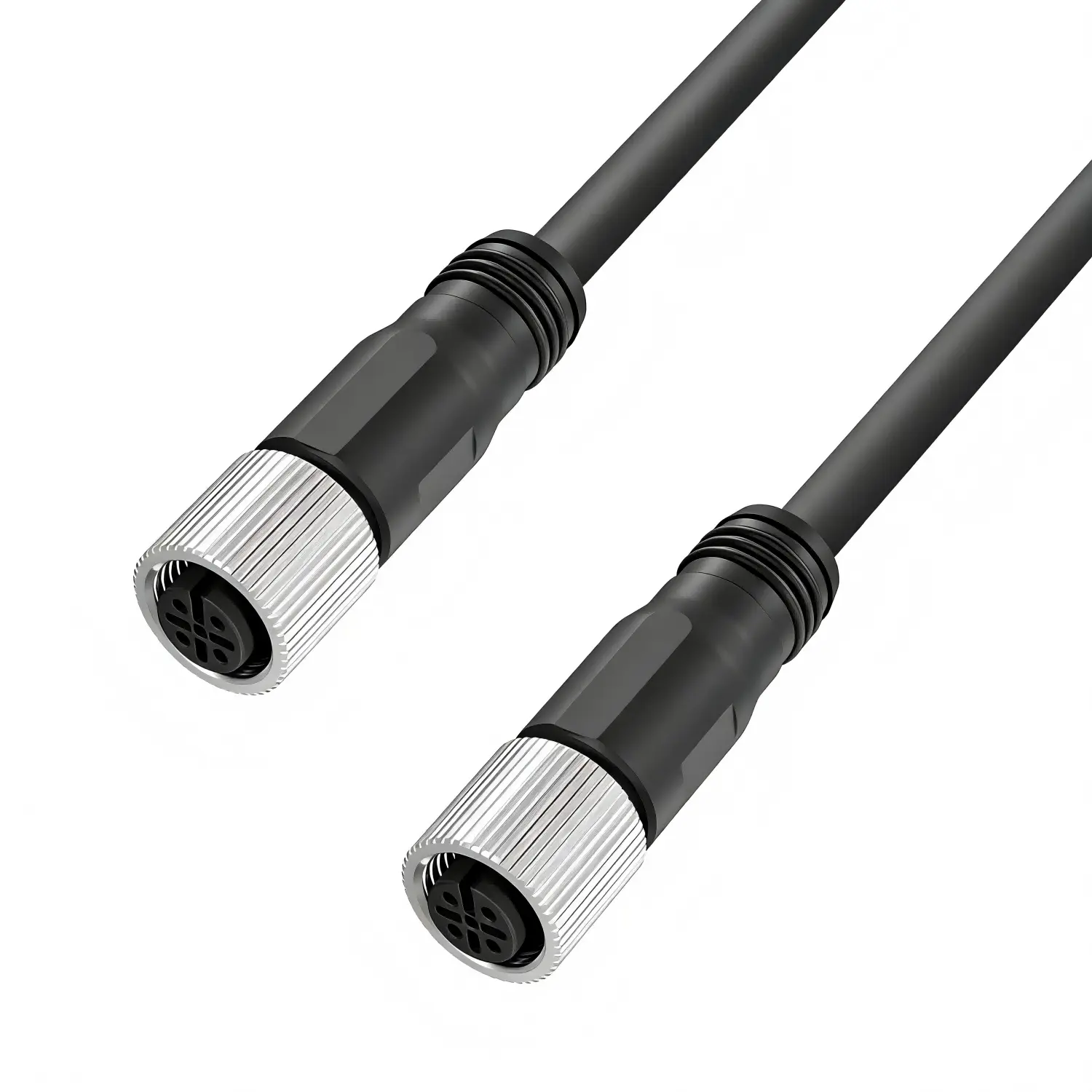

This cable pairs an M12 A‑Code 5‑pin female straight connector with five open conductors. The cable features a black outer jacket in either ​cost-effective PVC for fixed runs or oil- and flex-resistant PUR for dynamic applications, both maintaining an IP67 seal when mated. The female end mates to standard A‑code male plugs; the open conductors are prepared for stripped, tinned or ferruled terminations to terminal blocks, harnesses or device inputs.

Constructed from 5 × 0.34 mm² stranded copper with HDPE insulation and a 5.4 mm O.D., the cable balances flexibility and mechanical resistance for reliable routing. Unshielded by default (shielded option available). It suits IO‑Link devices, analog and discrete sensors, actuators and PLC inputs where a female inlet simplifies cable orientation or when extending existing male‑terminated leads.

Specifications

• Product Type: M12 A-Code 5-Pin Female to Open Wires Cable (straight)
• Connector: M12 A-Code 5-Pin Female, nickel‑plated shell
• Termination: Open wires (options: stripped; tinned; ferruled)
• Conductor: 5×0.34 mm² (19×0.15 mm) stranded copper
• Insulation: HDPE
• Jacket: PVC/PUR, Black
• Cable O.D.: 5.4 ± 0.3 mm
• Min bend radius: 7.5 × D (≈41 mm)

• Lengths: 3 m, 5 m, 10 m (custom lengths available on request)
• IP Rating: IP67 when mated
• Operating Temp: −40 °C to +80 °C
• Installation Temp: −5 °C to +60 °C

• Compatibility: IO‑Link, digital I/O, sensors, actuators, PLC I/O — Not recommended for high‑speed Ethernet
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
