Description

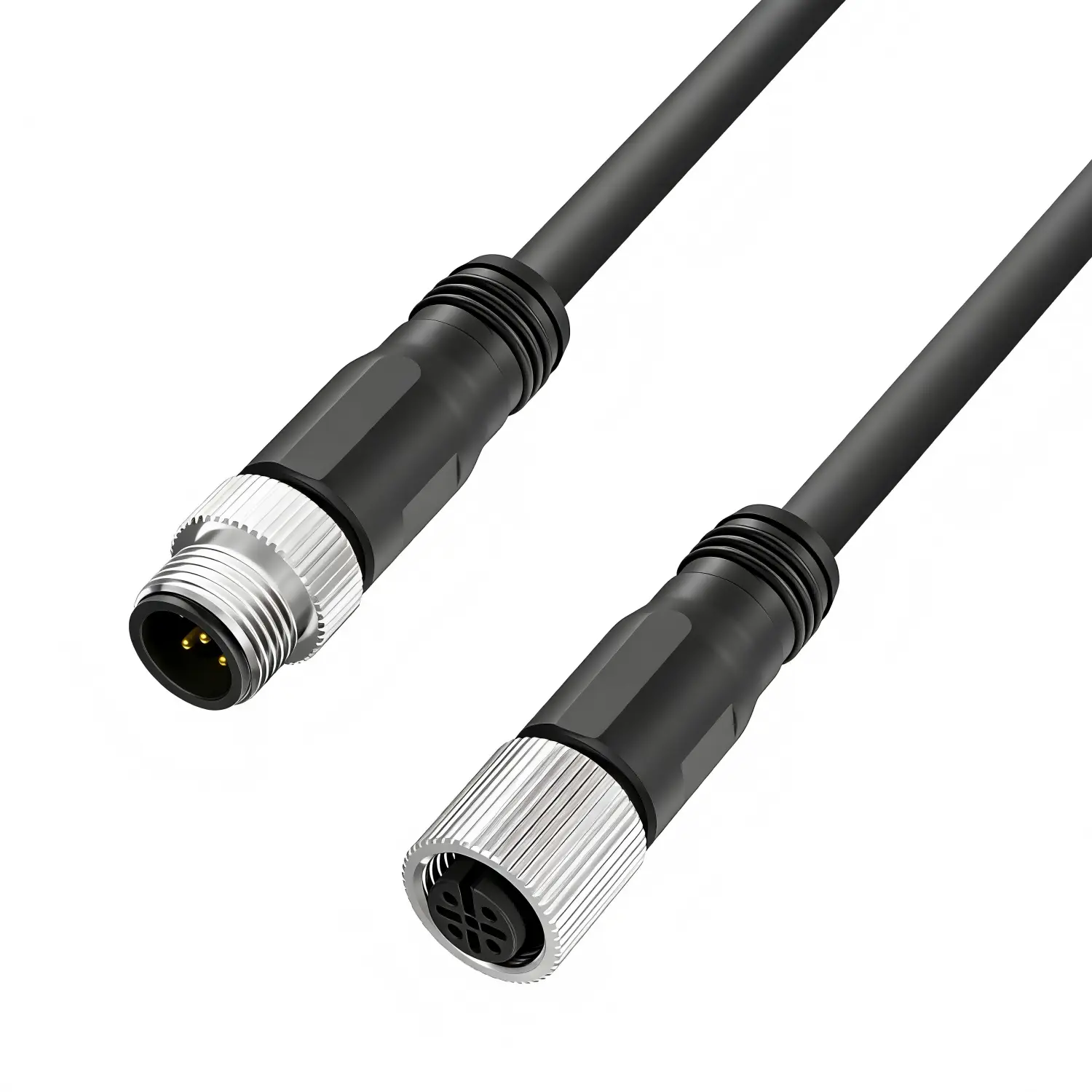

This is an M12 A‑Code 4‑pin straight cable assembly with a male connector on one end and a straight female connector on the other, protected by a PUR jacket. Both connectors conform to A‑code M12 dimensions and mate to standard A‑code ports; the core is 4 × 0.34 mm² stranded copper with HDPE insulation. The assembly is intended for IO‑Link, discrete I/O, sensor and actuator wiring, short inline extensions and internal cabinet runs.

The cable combines a compact straight profile with a flexible, oil‑ and abrasion‑resistant PUR jacket and an extended operating temperature range to support typical industrial installations. Default construction is unshielded (shielded option available) and follows standard 4‑pin pin‑out conventions; it is IP67 when mated.

Specifications

• Product Type: M12 A-Code 4-Pin Male to Female Cable (straight)
• Connector: M12 A-Code 4-Pin Male & Female, nickel‑plated shell
• Termination: M12 connectors (both ends)
• Conductor: 4×0.34 mm² (19×0.15 mm) stranded copper
• Insulation: HDPE
• Jacket: PUR, Black
• Cable O.D.: 4.5 ± 0.3 mm
• Min bend radius: 7.5 × D (≈34 mm)

• Lengths: 3 m, 5 m, 10 m (custom lengths available on request)
• IP Rating: IP67 when mated
• Operating Temp: −40 °C to +80 °C
• Installation Temp: −5 °C to +60 °C

• Compatibility: IO‑Link, digital I/O, sensors, actuators, PLC I/O — Not recommended for high‑speed Ethernet
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
