Description

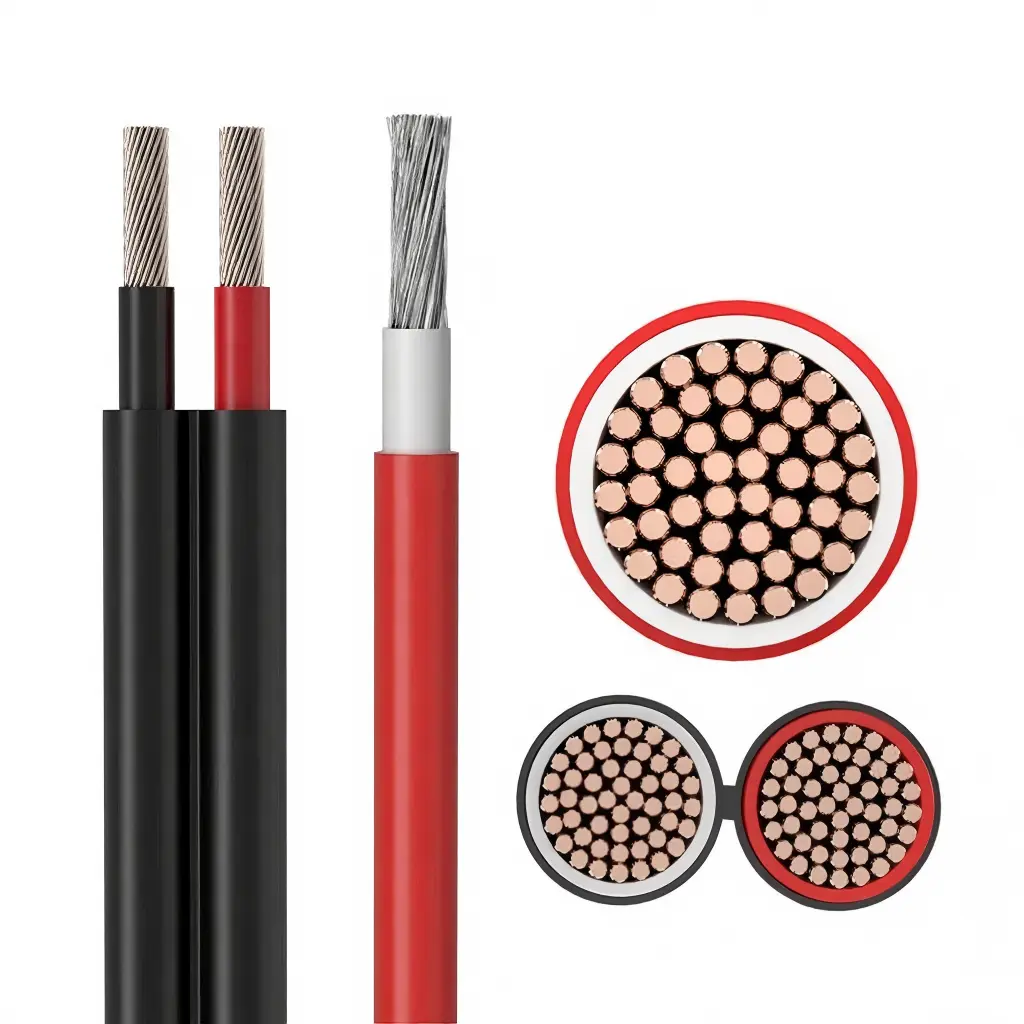

This product is a halogen‑free, cross‑linked polyolefin (XLPO) insulated solar photovoltaic cable designed for long‑life DC wiring in rooftop, ground‑mount and commercial PV systems. It uses flexible class‑5 tinned‑copper conductors with XLPO insulation and sheath, providing resistance to UV, ozone, weathering and temperature cycling. The single‑core design suits series string wiring from modules to combiners and from combiners to inverters, and mates with common crimp‑style PV connectors. Typical sizes from 2.5 to 16 mm² support low‑loss runs for 600/1000 V AC and up to 1.5 kV DC system architectures per current standards.

Specifications

• Product Type: Single‑core solar photovoltaic cable
• Conductor: Class 5 flexible tinned copper
• Cable Structure: XLPO insulation and outer sheath, halogen‑free
• Voltage Rating: Up to 1.5 kV DC; 0.6/1 kV AC (per standard/version)
• Standards: EN 50618 (H1Z2Z2‑K) / IEC 62930; UL PV Wire on request
• Temperature Range: Approx. −40°C to +90°C operation (XLPO insulated)
• UV/Weather: UV, ozone and moisture resistant for outdoor service
• Application: Module strings, array interconnects, combiner to inverter DC runs
• Sizes: Common cross‑sections 2.5–16 mm²; other sizes on request
• Colors: Red and black standard; additional colors available
• Installation: Suitable for conduit, tray or exposed runs; crimp to PV connectors
• Compatibility: Works with standard PV connectors and combiner hardware
• Compliance: RoHS, REACH
• Cable Length: Supplied on reels or custom cut lengths
• Customization: Regional approvals, print/ID, pre‑terminated sets, kitting
