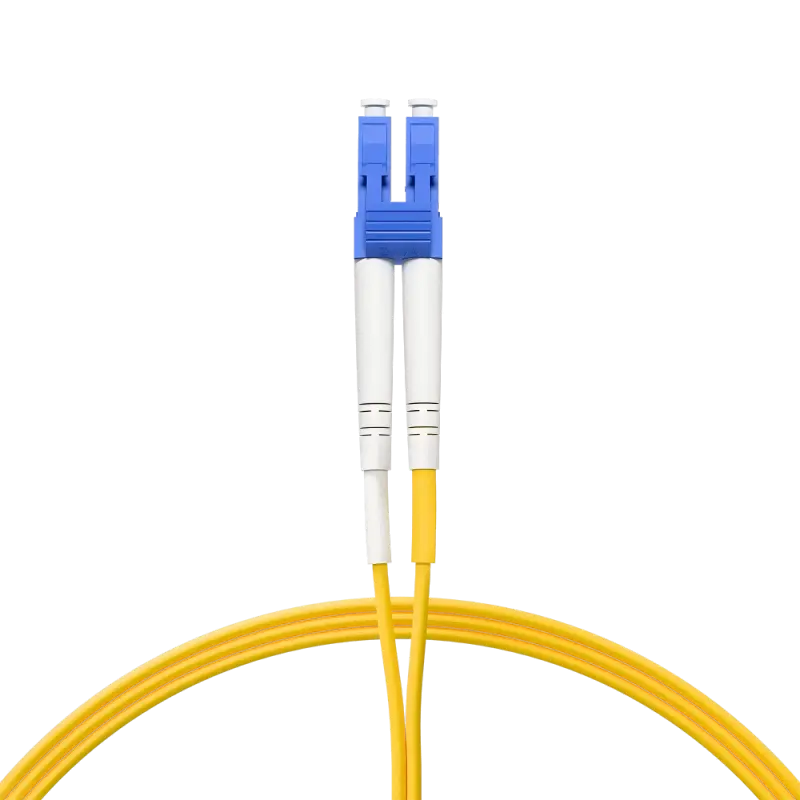

farsince LC/UPC to LC/UPC Singlemode OS2 9/125 Duplex Fiber Patch Cable, 2.0mm Yellow Jacket, PVC/LSZH, Multiple Lengths
Low‑loss UPC polish with ≥50 dB return loss. 100% IL/RL and end‑face tested with report—ideal for data center, backbone and FTTx interconnects.
5.0
Model No.:
FS61A01
Brand:
Farsince / OEM
MOQ:
500
Trade Term:
EXW / FOB Ningbo
Lead time:
2–4 weeks
Customization:
Supported
Sample:
Available
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Description
This OS2 singlemode duplex patch cord features LC/UPC to LC/UPC connectors (blue clips) for 1/10/25G SM links. Precision zirconia ferrules and robust boots ensure reliable mating, while the lightweight 2.0 mm jacket eases routing. Available with PVC (OFNR) or LSZH jackets. Each assembly is interferometer‑checked and IL/RL tested and ships with a test report, making it suitable for data centers, telecom rooms, and FTTx deployments.
Specifications
- Fiber: OS2 singlemode 9/125 μm (ITU‑T G.652D/G.657.A1)
- Construction: Duplex
- Connectors: LC/UPC ↔ LC/UPC, zirconia ceramic, blue
- Polish: UPC
- Performance: IL ≤0.3 dB (typ. 0.2 dB), RL ≥50 dB
- Wavelengths: 1310/1550 nm
- Jacket/Color: PVC (OFNR) or LSZH, yellow
- OD: 2.0 mm (3.0 mm option per listing)
- Min bend radius: install ≥10×OD, dynamic ≥20×OD
- Operating temp: -20 to +70 °C
- Compliance: IEC 61754‑20 (LC), IEC 61300, IEC 60793‑2‑50; RoHS
- Testing: 100% IL/RL with interferometer end‑face inspection, test report included
