Description

This DB9 male‑to‑female RS232 item is a straight‑through 9‑pin D‑sub cable for direct RS232 connections between equipment such as PCs, instruments, legacy terminals and CNC/PLC controllers. This SKU features black injection‑molded PVC hoods with integrated molded strain reliefs and ribbed plastic thumb screws for hand tightening. The cable contains nine individually insulated conductors with an overall aluminum‑foil plus tinned‑copper braid shield to maintain reliable continuity for TX/RX/GND and standard handshake lines.

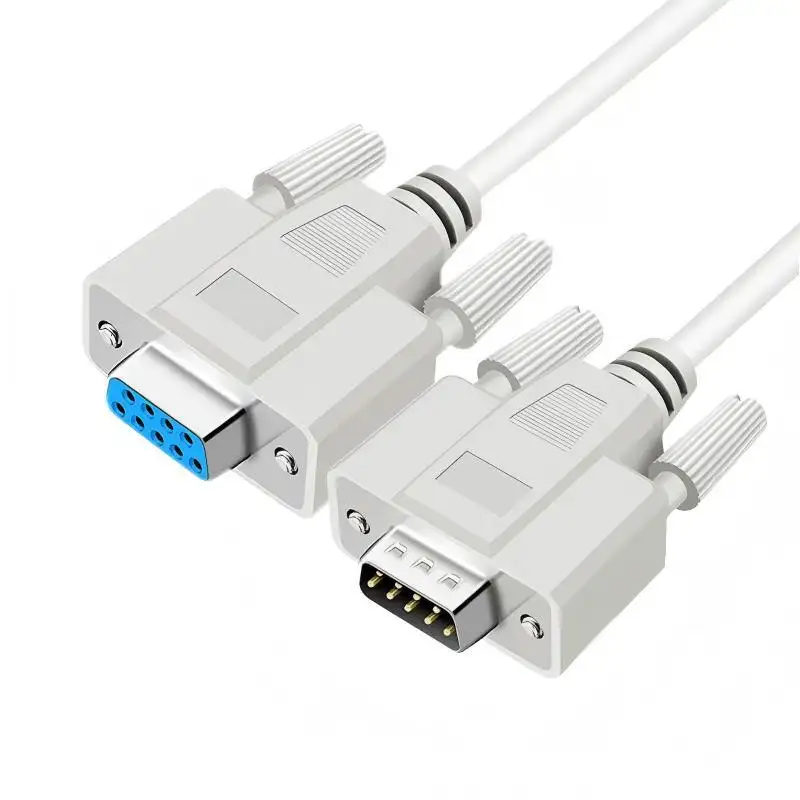

Image shows gold‑tone contacts for visual reference. Gold plating is available as an optional specification (specify plating type and thickness on order); standard contact finish may be nickel or gold‑tone. Standard length is 1.5 m; custom lengths and configurations available.

Specifications

• Product Type: DB9 (9‑pin) RS232 Male to Female cable

• Connectors: DB9 Male & DB9 Female

• Cable Direction: Straight‑through (pin‑to‑pin)

• Wire Gauge: 28 AWG typical, conductor finish configurable
• Cable Structure: 9 × 28 AWG stranded copper conductors
• Jacket: Flexible PVC (white standard)
• Shielding: Aluminum foil + tinned copper braid
• Shell Material: Injection‑molded PVC hood with molded strain relief; ribbed plastic thumb screws

• Standard lengths: 1.5 m (custom lengths available)

• Data Rate: Supports common RS232 baud rates e.g., 115.2 kbps typical at short distances (performance depends on cable length, environment and system transceivers)

• Application: PC-to-PC, instruments, test benches, PLCs/CNC controllers
• Installation: Molded strain relief, ribbed plastic thumbscrews
• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, hipot/insulation and continuity reports available on request; batch traceability, ODM support
