Description

This DB15 male‑to‑female RS232 product is a rugged straight‑through 15‑pin D‑sub cable designed for industrial and EMI‑sensitive applications. It features die‑cast metal shells with nickel or tin finish, metal thumb screws (full metal or plastic head with metal insert options), and a bonded drain wire tied to the shells for reliable chassis grounding. The cable uses nine individually insulated conductors and a robust aluminum‑foil plus tinned‑copper braid shield to maximize EMI protection and signal integrity for TX/RX/GND and handshake lines.

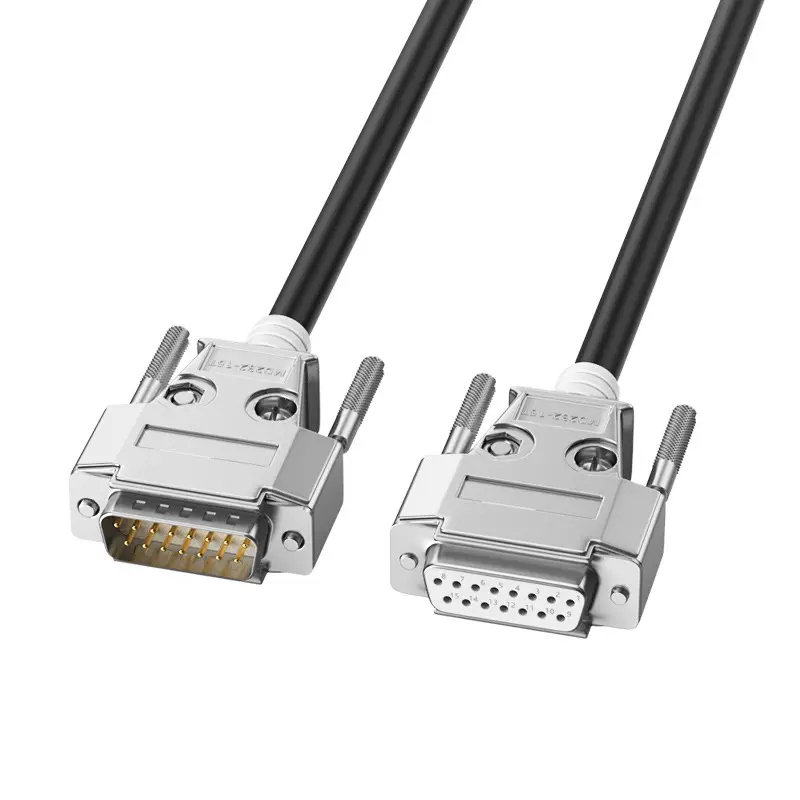

Image shows gold‑tone contacts for visual reference. Gold plating is optional (specify plating type and thickness on order); standard contact finish may be nickel or gold‑tone. Standard length is 1.5 m; custom lengths and heavier gauge constructions available for long runs.

Specifications

• Product Type: DB15 (15‑pin) RS232 Male to Female cable

• Connectors: DB15 Male & DB15 Female (die‑cast metal shells)

• Cable Direction: Straight‑through (pin‑to‑pin)

• Wire Gauge: 28 AWG typical, conductor finish configurable
• Cable Structure: 15 × 28 AWG stranded copper conductors
• Jacket: Flexible PVC (black standard)
• Shielding: Aluminum foil + tinned copper braid
• Standard lengths: 1.5 m (custom lengths available)
• Shell Material: Die‑cast metal shell (nickel/tin finish typical); metal thumbscrews or plastic heads with metal inserts available

• Data Rate: Supports common RS232 baud rates e.g., 115.2 kbps typical at short distances (performance depends on cable length, environment and system transceivers)

• Application: PC-to-PC, instruments, test benches, PLCs/CNC controllers

• Compliance: RoHS, REACH
• Customization: Length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, hipot/insulation and continuity reports available on request; batch traceability, ODM support
