Description

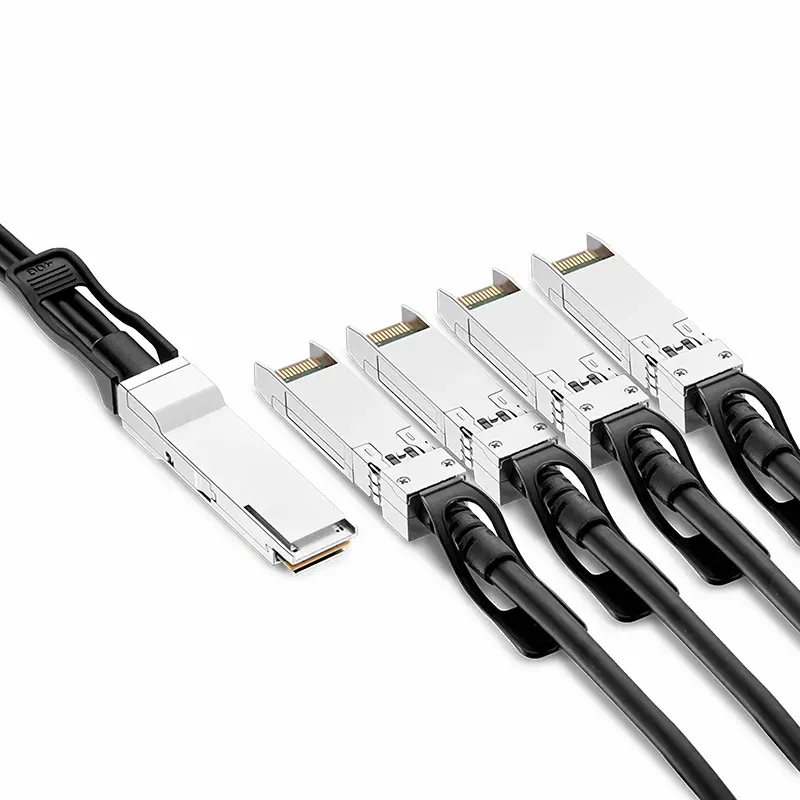

Farsince 40G QSFP+ to 4×10G SFP+ passive direct‑attach copper breakout, 30AWG twinax harness that fans out one QSFP+ port into four independent 10G SFP+ connections. The assembly integrates a QSFP+ plug on the switch side and four SFP+ plugs on the device side, each carrying a 10G NRZ lane. It is suited for top‑of‑rack fan‑out from 40G leaf ports to servers, storage or NICs operating at 10GbE, enabling cost‑efficient short‑reach links within a rack or between adjacent racks in data centers and telecom rooms.

The passive design removes active components and optics to deliver near‑zero latency and low power draw (≤0.5 W from the host). Controlled‑impedance twinax and tight pair skew help maintain low insertion loss and crosstalk, while a 21 mm minimum bend radius supports tidy routing in dense panels. The cable follows QSFP+ and SFP+ MSA mechanics and IEEE 802.3ba 40GBASE‑CR4/10GBASE‑CR electrical specifications for broad interoperability. Farsince provides multi‑vendor coding, matched‑length legs, custom labeling and length options, and supplies batch test reports to meet deployment and maintenance requirements.

Specifications

• Product Type: 40G to 4×10G Passive Direct Attach Copper Breakout
• Host Interface: QSFP+ (4×10G NRZ)
• Device Interface: 4× SFP+ (10G NRZ each)
• Cable Direction: QSFP+ to 4× SFP+
• Max Data Rate: 40 Gbps aggregate (4×10 Gbps)
• Wire Gauge: 30 AWG
• Cable Structure: Shielded twinax harness, passive
• Minimum Bend Radius: 21 mm
• Jacket Material: PVC (OFNR)
• Power Consumption: ≤0.5 W (host 3.3 V for ID)
• Operating Temperature: 0 to +70°C
• Installation: Hot‑pluggable connectors with pull‑tab latches
• Compatibility: IEEE 802.3ba 40GBASE‑CR4 to 4×10GBASE‑CR; SFF‑8436 & SFF‑8431; QSFP+/SFP+ MSA
• Compliance: RoHS, REACH
• Customization: Vendor coding, leg matching, length and label options; test reports
