Description

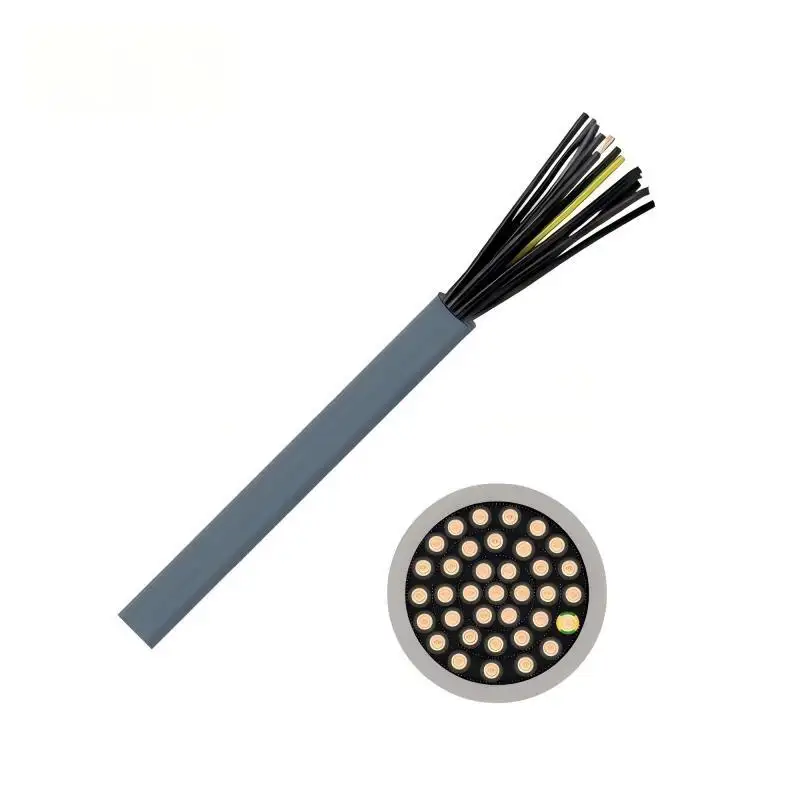

YY LSZH control cable is designed for flexible signal and control wiring in instrumentation, control equipment, tooling machinery, and production line applications. It uses Class 5 flexible plain copper conductors with LSZH insulation and an LSZH outer sheath, making it suitable for environments where low smoke and halogen-free performance are important. The cable is intended for flexible applications with free movement and no tensile load, and can be used in dry, ambient, and wet rooms.

It also meets flame-retardant and LSZH-related standards including IEC/EN 60332-1-2, IEC/EN 60332-3-24, IEC/EN 60754-1/2, and IEC/EN 61034-1/2. This cable is intended for indoor industrial use and is not suitable for outdoor or underground installation.

Specifications

• Product Type: YY LSZH Control Cable
• Application: Signal and control wiring for instrumentation, control equipment, tooling machinery, and production lines
• Cable Structure: Multi-core unshielded flexible control cable
• Conductor: Class 5 flexible plain copper
• Insulation: LSZH (Low Smoke Zero Halogen)
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• Shielding: Unshielded
• Voltage Rating: 300/500V
• Installation: Flexible applications with free movement and no tensile load
• Environment: Suitable for dry, ambient, and wet rooms
• Temperature Range: -40°C to +80°C fixed / -15°C to +70°C flexed
• Minimum Bending Radius: 6 × overall diameter fixed / 15 × overall diameter flexed
• Compliance: RoHS, REACH
• Customization: Core count, conductor size, sheath color, packaging
• Service Support: OEM / ODM support, sample support, bulk order supply
