Description

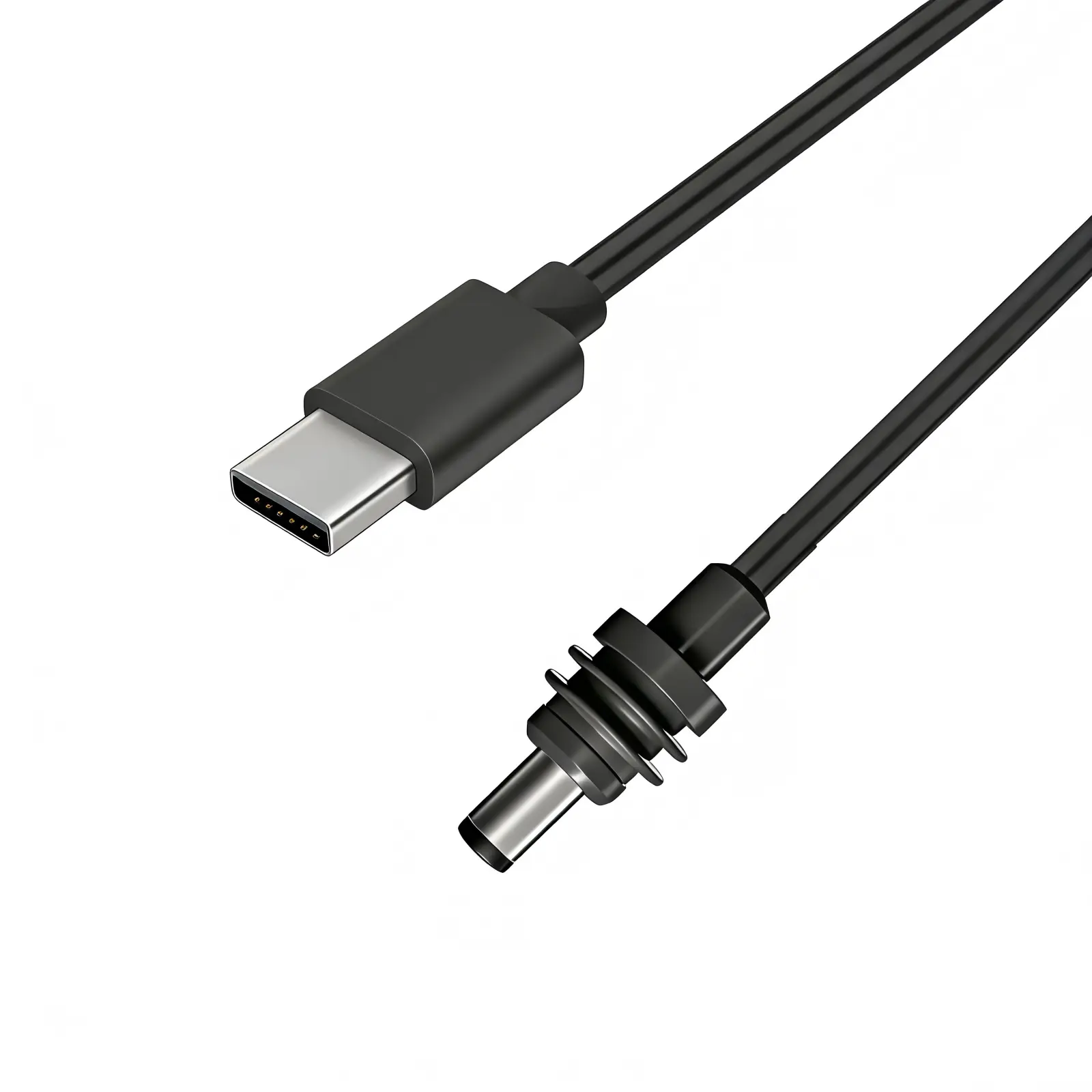

This Starlink Type C to DC power cable provides USB‑C input convenience to power Star‑MINI via a DC output or direct USB‑C power path depending on configuration. Built for straightforward replacement or retrofit, this cable provides a sealed overmolded plug and conductors sized to minimize voltage drop across typical installation lengths.

It's constructed to resist frequent plug/unplug cycles and moderate outdoor exposure when mated. Typical use cases of this cable include portable setups, RV/ ehicle installations, backyard/roof installations with sheltered placement, and service spares for field technicians. Recommend confirming device voltage/current and plug polarity before ordering.

Specifications

• Cable Type: Starlink MINI DC power connection assembly
• Connector(s): Starlink DC plug

• Wire Gauge: 20 AWG (customizable)
• Shielding: Foil shield + drain conductor
• Conductor: Multi‑strand conductors
• Outer diameter: ~4.0 mm
• Temp range: -20°C to +70°C (typical)
• Length: 2 m, 3 m, 5 m, 10 m; custom lengths on request
• Jacket: PVC (finished, grey color)

• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
