Description

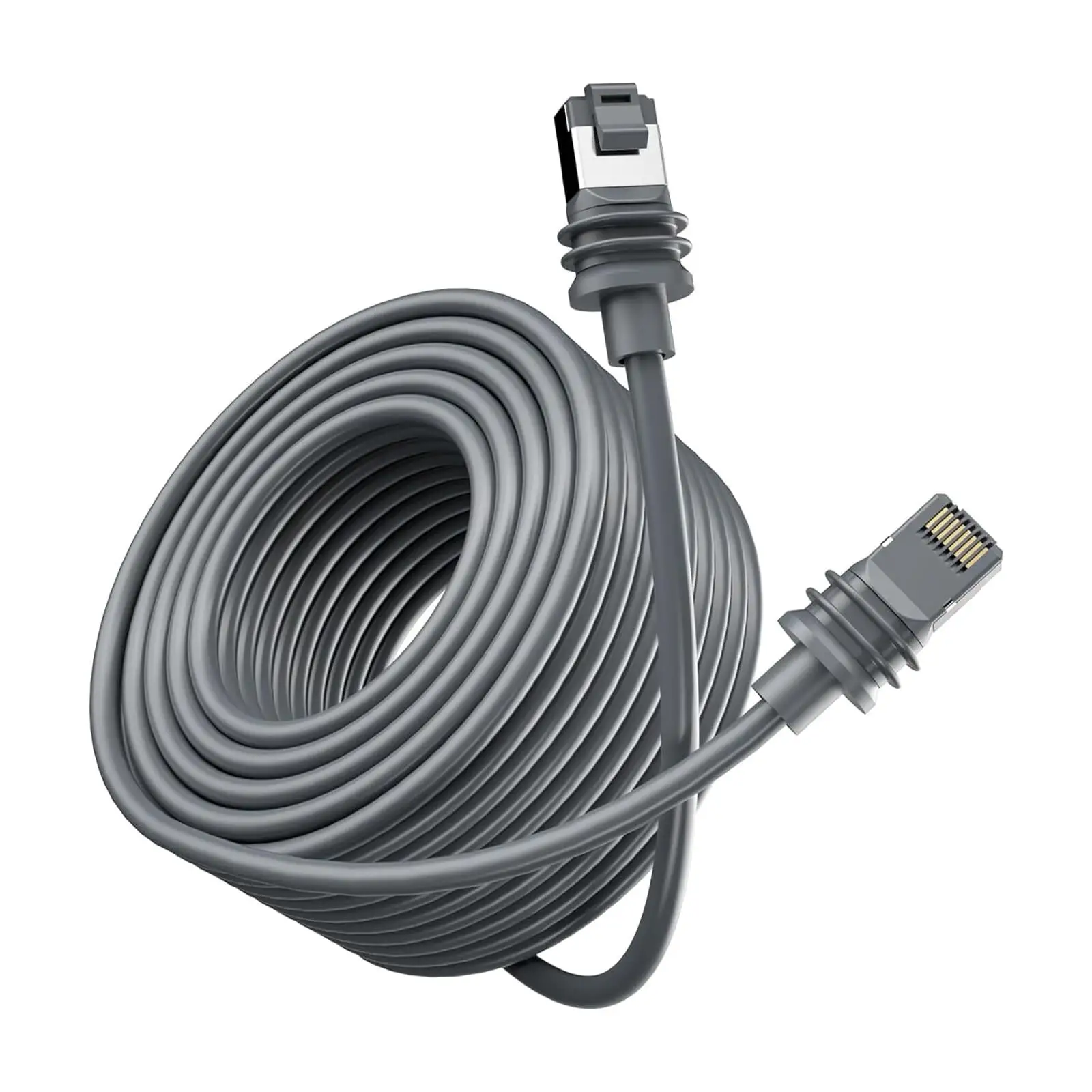

This GEN3/V3 assembly uses CAT5e FTP construction with multi‑strand conductors to keep attenuation low and shielding effective over longer runs. The connector is overmolded with a gasket profile that protects the interface; cable lengths are offered to meet typical plant layouts. These assemblies are intended to be direct replacements or standardized factory cabling for new systems.

Built to the same modular, preterminated concept as GEN2 but matched to GEN3/V3 mechanical interfaces and production specifications. Provides consistent electrical performance and a reliable seal at the device interface for industrial deployments. Designed for long outdoor runs and simple installation — verify connector type on your Starlink unit before ordering.

Specifications

• Cable Type: CAT5e FTP
• Connector(s): Starlink GEN3/V3 compatible plug with sealing gasket

• Wire Gauge: 24 AWG (customizable)
• Shielding: Foil shield + drain conductor
• Conductor: Multi‑strand conductors
• Impedance: 100 Ω (CAT5e standard, typical)

• Temp range: -20°C to +70°C (typical)
• Length: 2 m, 10 m, 15 m, 23 m, 30 m, 46 m; custom lengths on request
• Jacket: PVC (finished, grey color)

• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
