Description

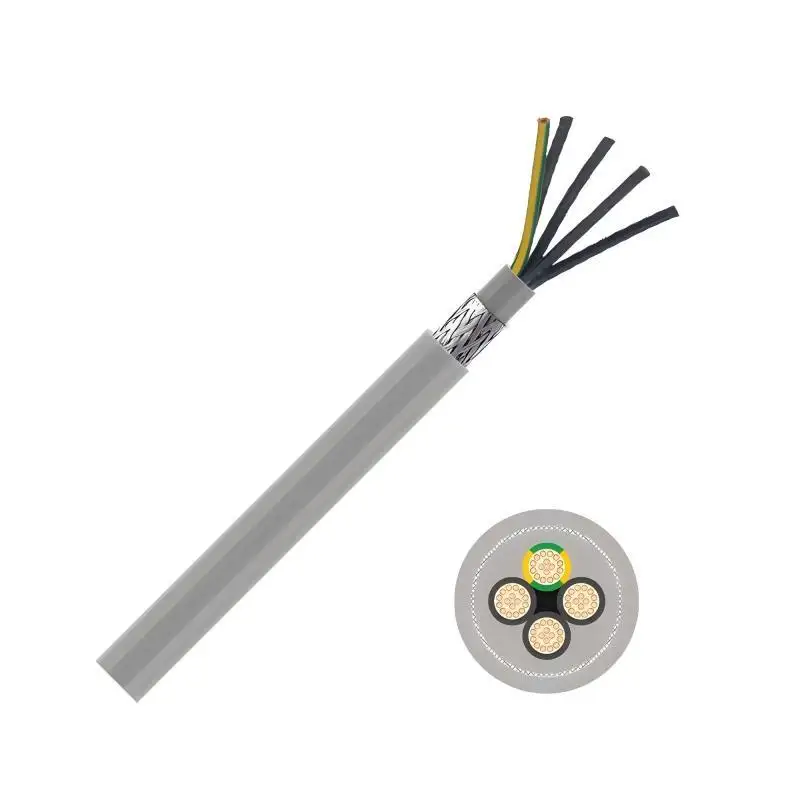

Designed for safer industrial control interconnections, this SY LSZH cable pairs plain annealed stranded copper conductors with low smoke, zero‑halogen insulation and sheath, reinforced by a galvanised steel wire braid that delivers dependable light mechanical protection in dynamic plant environments.

It supports 300/500V control and instrumentation circuits across assembly, production, and conveyor systems, operating from −40°C to +80°C in fixed installations and −15°C to +70°C during flexing, with recommended bend radii of 6× OD (fixed) and 15× OD (flexed) to maintain integrity over repeated movement.

Certified flame retardant per IEC/EN 60332‑1‑2 and 60332‑3‑24 and compliant with LSZH/smoke standards IEC/EN 60754‑1/2 and IEC/EN 61034‑1/2, it minimizes smoke and corrosive gas emissions in the event of fire, reducing risks to personnel and equipment in densely wired industrial spaces.

Specifications

• Conductor: Plain annealed stranded copper
• Insulation: LSZH (Low Smoke Zero Halogen)
• Armouring: Galvanised steel wire braid (GSWB)
• Sheath: LSZH (Low Smoke Zero Halogen)
• Voltage Rating Uo/U: 300/500V
• Temperature Rating: Fixed −40°C to +80°C; Flexed −15°C to +70°C
• Minimum Bending Radius: Fixed 6× overall diameter; Flexed 15× overall diameter
• Flame Retardant: IEC/EN 60332‑1‑2; IEC/EN 60332‑3‑24
• LSZH/Smoke Standards: IEC/EN 60754‑1/2; IEC/EN 61034‑1/2
• Standards/Compliance: VDE 0207‑303‑7
• Application: Measuring, controlling, and regulating equipment in assembly/production lines and conveyor systems requiring light mechanical protection and enhanced fire safety
