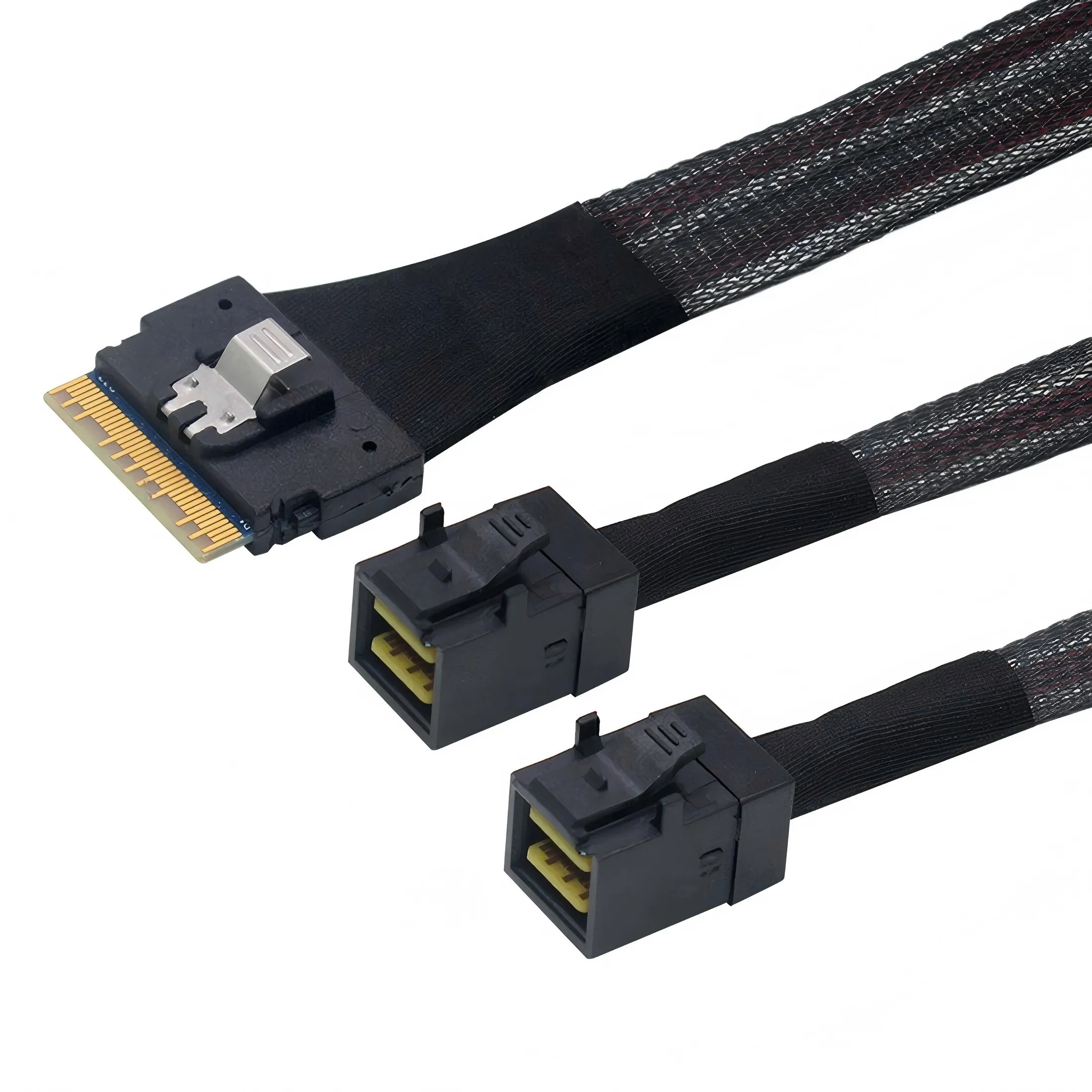

Slim SAS SFF-8654 X8 to Dual Mini SAS HD SFF-8643 4i Cable
Internal SlimSAS to Mini‑SAS HD splitter: SFF‑8654 8i → 2× SFF‑8643 4i
SAS 12Gb/s per lane, x8 split into 2× x4; straight‑through wiring
Low‑profile, shielded twinax for reliable short‑run routing;
SAS 12Gb/s per lane, x8 split into 2× x4; straight‑through wiring
Low‑profile, shielded twinax for reliable short‑run routing;
5.0
Model No.:
FS25C09
Brand:
Farsince / OEM
MOQ:
500
Trade Term:
EXW / FOB Ningbo
Lead time:
2–4 weeks
Customization:
Supported
Sample:
Available
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Description
Connect one SlimSAS 8i port on an HBA/RAID card or motherboard to two Mini‑SAS HD (SFF‑8643) backplane ports. The cable uses oxygen‑free copper conductors, aluminum‑Mylar shielding and 100 Ω differential pairs to maintain SAS‑3 signal integrity. For internal chassis use only; not a protocol converter and not for PCIe/NVMe, OCuLink, SATA, or external SFF‑8644.
Specifications
- Connectors: 1× SFF‑8654 8i (74‑pin) plug → 2× SFF‑8643 (36‑pin) plugs, male‑to‑male
- Lanes: x8 split into 2× x4
- Data rate: SAS up to 12G per lane (backward compatible with SAS 6G/3G)
- Cable: shielded twinax, 100 Ω differential; OFC copper, aluminum‑Mylar foil
- Use case: connect HBA/RAID/motherboard 8654 8i to dual 8643 backplane ports
- Environment: internal only; operating temp 0–60°C (typ.)
- Compliance: SFF‑8654, SFF‑8643; RoHS compliant
