Description

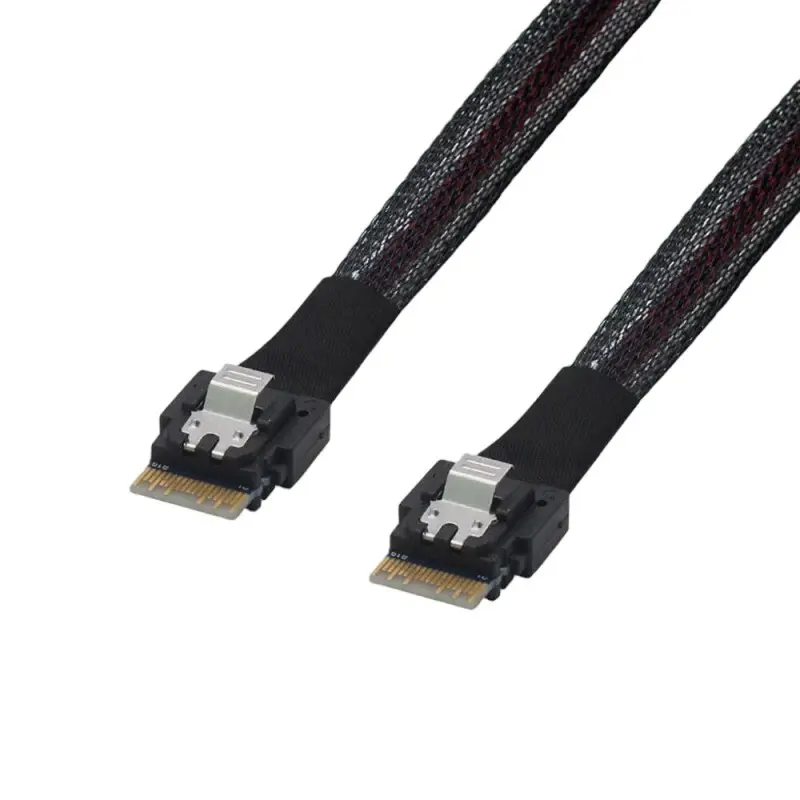

This assembly is a passive SlimSAS internal cable with SFF‑8654 4i 38‑pin plugs on both ends. It links a controller or motherboard SlimSAS 4i port to a backplane, expander or mid‑plane that also uses SFF‑8654 4i. Each connector is a straight, low‑profile latch type, carrying four high‑speed differential lanes plus sideband signals. Typical applications include internal SAS4 links from tri‑mode RAID/HBAs to hot‑swap backplanes, or PCIe x4 connections to SlimSAS‑equipped backplanes for U.2/U.3 device bays in 1U–4U servers, JBODs and workstation chassis.

The 0.5 m length supports controlled‑impedance routing for short, low‑loss internal runs, with shielded multi‑lane twinax construction and molded strain relief for reliable retention. The passive design follows the SFF‑8654 4i pinout and is compatible with SAS/SATA and PCIe signaling as defined by the attached hardware, enabling up to 24G SAS per lane or PCIe Gen4 x4 where supported. Farsince provides variant lengths, straight or right‑angle plugs, harness bundling and labeling, and stable supply for OEM builds and field service.

Specifications

• Product Type: Internal SlimSAS SFF‑8654 4i to SFF‑8654 4i cable
• Host Interface: SFF‑8654 4i (38‑pin), straight latch
• Device Interface: SFF‑8654 4i (38‑pin), straight latch
• Cable Direction: Passive, straight‑to‑straight
• Application: Connect controller/HBA or motherboard SlimSAS 4i to SlimSAS 4i backplane/expander
• Lane Count: x4 high‑speed lanes plus sideband
• Data Rate: Supports SAS4 up to 24 Gb/s per lane; PCIe Gen4 x4 when platform permits
• Cable Structure: Shielded multi‑lane twinax with strain relief
• Installation: Internal chassis routing; low‑profile heads for dense bays
• Compatibility: Server boards and backplanes with SFF‑8654 4i
• Compliance: RoHS, REACH
• Customization: Lengths, right‑angle versions, bundling/labels
• Service Support: OEM/ODM builds and stable supply chain
