Description

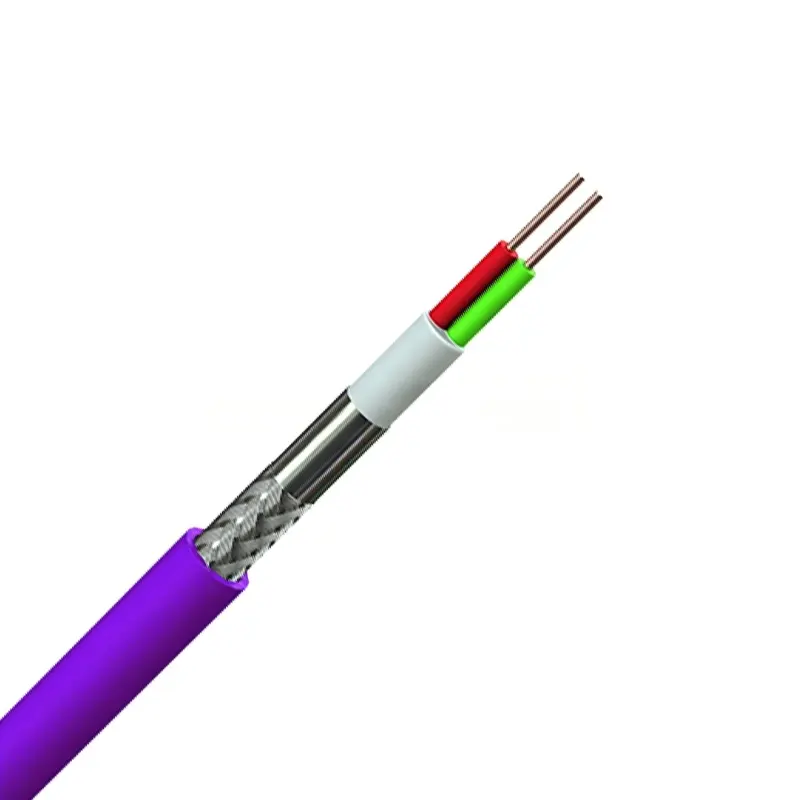

This cable is designed for PROFIBUS‑DP networks using the RS‑485 physical layer. It features a 150‑ohm balanced twisted pair with an overall foil and braid shield and integrated drain wire to maintain signal integrity in electrically noisy industrial environments. The construction supports data rates from low speed up to 12 Mbit/s over standard DP segment lengths and is suitable for daisy‑chain bus wiring between PLCs, distributed I/O, inverters, sensors and HMIs. The purple jacket identifies the fieldbus and aids routing in control cabinets and plant infrastructure. Termination is typically via DB9, M12 or terminal block connectors per device design.

Specifications

• Product Type: PROFIBUS‑DP RS‑485 fieldbus cable
• Standard: PROFIBUS‑DP per EN 50170 / IEC 61158 (Type A single pair)
• Impedance: 150 Ω balanced
• Cable Structure: 1 × twisted pair with overall shield and drain wire
• Conductor: 22 AWG stranded tinned copper (typical PROFIBUS build)
• Shielding: Aluminum/PET foil + tinned copper braid
• Data Rate: Up to 12 Mbit/s (application and topology dependent)
• Application: PLCs, drives, remote I/O, sensors, HMIs and gateways
• Jacket: Purple industrial PVC; PUR or LSZH options available
• Installation: Daisy‑chain bus wiring; use proper termination at segment ends
• Host/Device Interface: DB9, M12 or terminal block connectors (per equipment)
• Compatibility: PROFIBUS‑DP networks and accessories
• Cable Length: Supplied on reels or custom cuts
• Compliance: RoHS, REACH
• Customization: Pair count, gauge, jacket rating/color, print and pre‑terminated sets
• Service Support: Drawings, labeling, testing and kitting on request
