Description

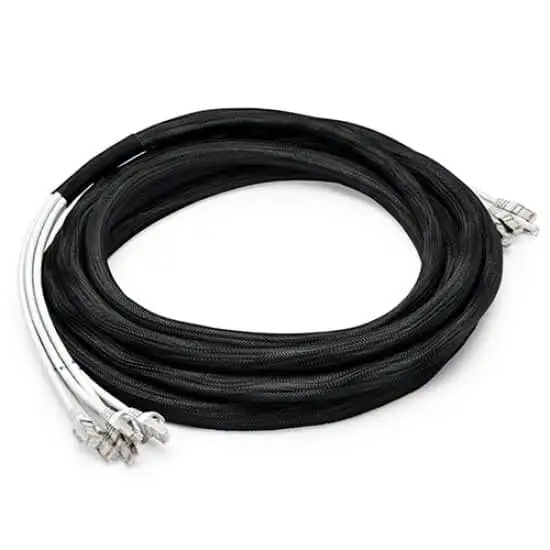

This cat6a UTP cable is a pre-terminated trunking cable assembly designed to boost efficiency and minimize labor costs in substantial infrastructures with high-density cross-connection and patching systems.
Utilizing the most advanced cabling systems available, this male-female network cable trunking supports 10 Gigabit speeds and includes 12 loose jack modules at both ends, enabling straightforward plug-and-play installation.
One of the standout features of the cable is the customizable connector types, such as plug-plug, jack-jack, and plug-jack combinations, allowing for adaptation to your unique requirements.
Premium connectors ensure exceptional system reliability and stability, while the braided mesh sleeve maintains cable tidiness and enhances airflow, leading to a more organized and efficient networking environment.
The cat6a UTP cable offers a quick and easy setup. Each cable assembly undergoes thorough testing to guarantee efficient installation.
Also, individual identification numbers are assigned to each trunk assembly, streamlining network management and maintenance.
Additionally, our cat6a UTP cable is available in various colors and lengths to accommodate diverse networking demands.
And it complies with ROHS and REACH regulations, demonstrating our commitment to meeting the highest environmental and safety standards.
The specifications for this cat6a UTP cable include the following:
- Conductor: Bare copper
- Wire Gauge: 26AWG or 24AWG
- Insulation: HDPE
- Insulation colors: Blue/White, Blue; Orange/White, Orange; Green/White, Green; Brown/White, Brown
- Shielding: Aluminum foil, drain wire
- Braiding: 16/5/0.12mm AL-MG
- Jacket: PVC
- Outer diameter: 6.2±0.2mm
- Connector 1: RJ45 FTP
- Connector 2: RJ45 FTP
- Contact: Gold plated 3U
- Testing: Fluke tester
Thus, our cable delivers an advanced, reliable, and efficient solution for large network infrastructures.
Trust us as your go-to wholesale supplier for superior cables, adapters, and consumer electronic products, and experience the outstanding performance of this cable today.
Download:
- Data sheet of Cat6a Pre-Terminated Copper Trunk Cable
Order Information:
FS17403A**-xxx: Cat6a S/FTP Pre-Terminated Copper Trunk Cable, 6 plug to 6 plug
FS17403B**-xxx: Cat6a S/FTP Pre-Terminated Copper Trunk Cable, 6 plug to 6 jack
FS17403C**-xxx: Cat6a S/FTP Pre-Terminated Copper Trunk Cable, 6 jack to 6 jack
- **=color: GY=GREY, BK=BLACK, WT=WHITE, BU=BLUE, RD=RED, YL=YELLOW, OG=ORANGE, GN=GREEN
- xxx=Length: 030=3.0M, 050=5.0M, 075=7.5M, 100=10M, 200=20M, 300=30M
- For Example: FS17403BBU-030= Cat6a S/FTP Pre-Terminated Copper Trunk Cable, 6 plug to 6 jack, 3M Length
