Description

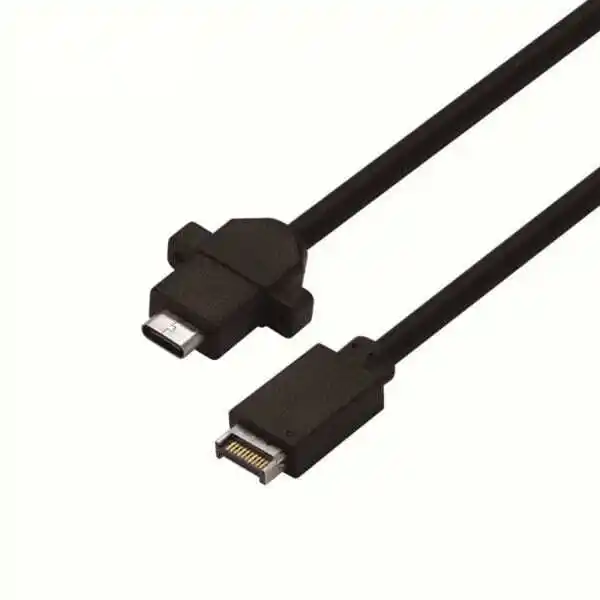

Elevate your connectivity with the Panel Mount USB Type-E Cable – a revolutionary solution for seamless data transfer.
Featuring a precision-designed USB Type-E male connector and a USB 3.1 Type C female connector with robust screw locking, it ensures secure connections in any environment.
With gold plated contacts and a nickel plated shell, signal integrity is unmatched, while the M3 nickel plated nut and screw type bolster durability.
The tinned copper conductor and dual-layer shielding guarantee interference-free transmission at speeds up to 10Gbps, ideal for HD media streaming and large file transfers.
Compliant with RoHS and REACH standards, it exemplifies quality and sustainability.
Its specifications:
- Connector 1: USB Type-E male
- Connector 2: USB 3.1 Type-C female with screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 25.8±0.5mm
- Cable Conductor: Tinned Copper
- Wire Gauge: 30/30/24AWG
- Outer Diameter: 5.5mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Transfer rate reaches to 10Gbps
- Compliance: RoHS, REACH
